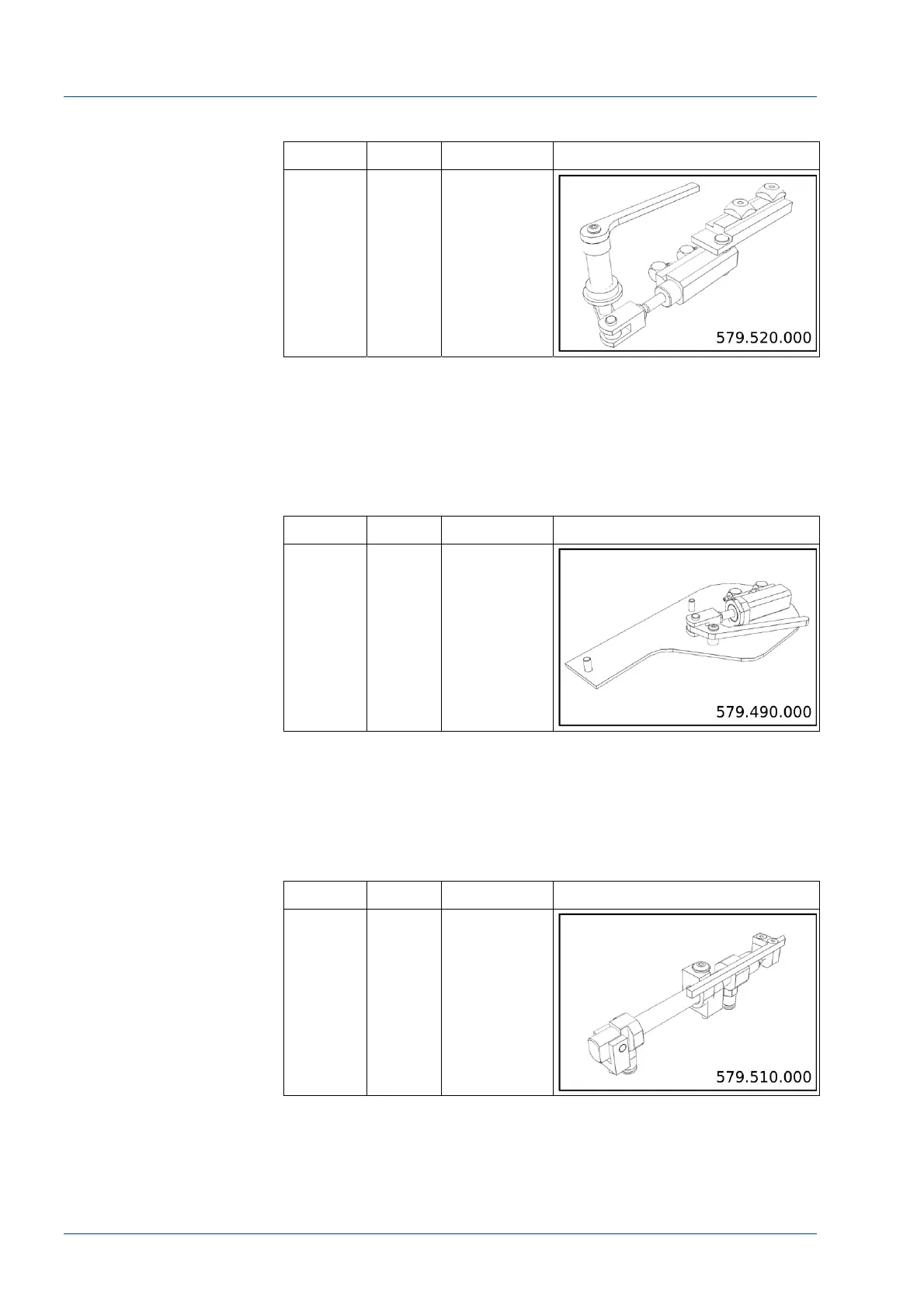

i2000SR interface module Service Manual
Page 18 of 212 625798100.APS.5.doc
Diverter Control
Description
Reference
D1 EV15
Lane 3/2
Diverter
D2b – Lane 3/1 Diverter – is located in the area of the gate G8 and
the large disk. It is controlled by EV4 and is activated to route
carriers from Lane 3 to Lane 1 via the opening created by D2a.
The diverter is normally retracted to allow carriers to travel
around the large disk.
Diverter Control
Description
Reference
D2b
EV4
CYL1
Lane 3/1
Diverter
D2a – Lane 2/1 Diverter – is in the area of the gate G8 and the
large disk. It is controlled by EV4 and opens a path between Lane
2 and Lane 1. When closed, it prevents carriers from entering
Lane 1. When opened with the activation D2b diverter, it allows a
carrier from Lane 3 to be directed in to Lane 1
Diverter Control
Description
Reference
D2a
EV4
CYL2
Lane 2/1
Diverter
