i2000SR interface module Service Manual
Page 22 of 212 625798100.APS.5.doc
APS mode – IM Exercise mode cannot be performed while in APS
mode. The APS Track Exercise will not pass carriers to the
i2000SR IM.
A detailed description of the movement of carriers while in
exercise mode is contained in the
i2000SR IM exercise mode
description section.
Stop:
Standalone – at the LUI panel the user presses the Stop button.
All carriers on the IM will stop moving.
APS mode – at the APS GUI the user selects Diagnostics, Track,
Transportation Module – RFID Tag Reader Instrument and then
STOP. All carriers on the IM will stop moving.

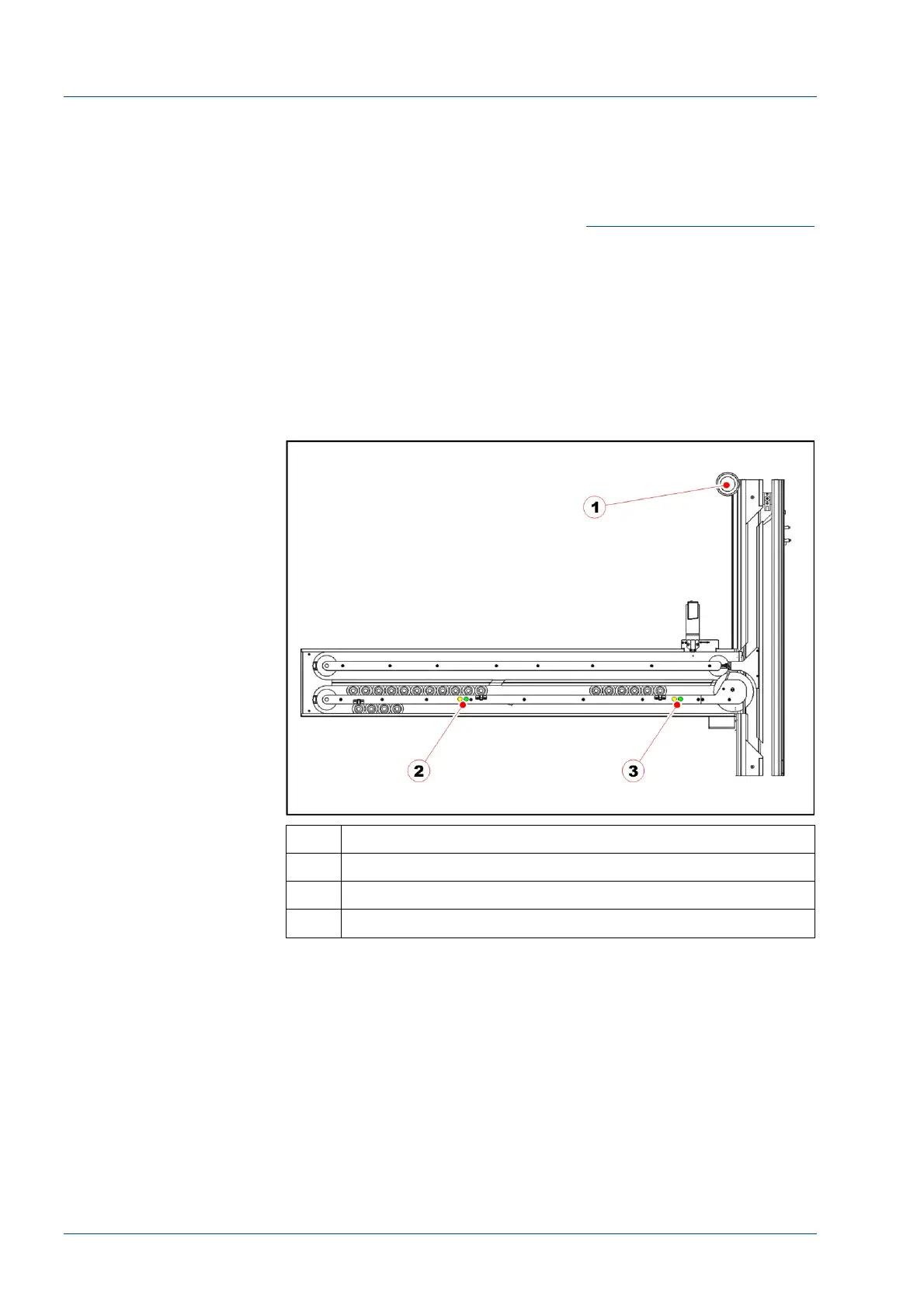

Figure 7 – Interface devices
No. Description
1 Instrument Indicator Light lamp (Pole lamp)
2 Routine input status LEDs
3 Priority input status LEDs
