Operating the System
Transport Interval Zone
4.6 Transport Interval Zone
Outside the short-cut zones, movements between auto-positions are performed in a defined
transport interval zone. The upper and lower limits are defined at System installation.
4086
Max.
Min.

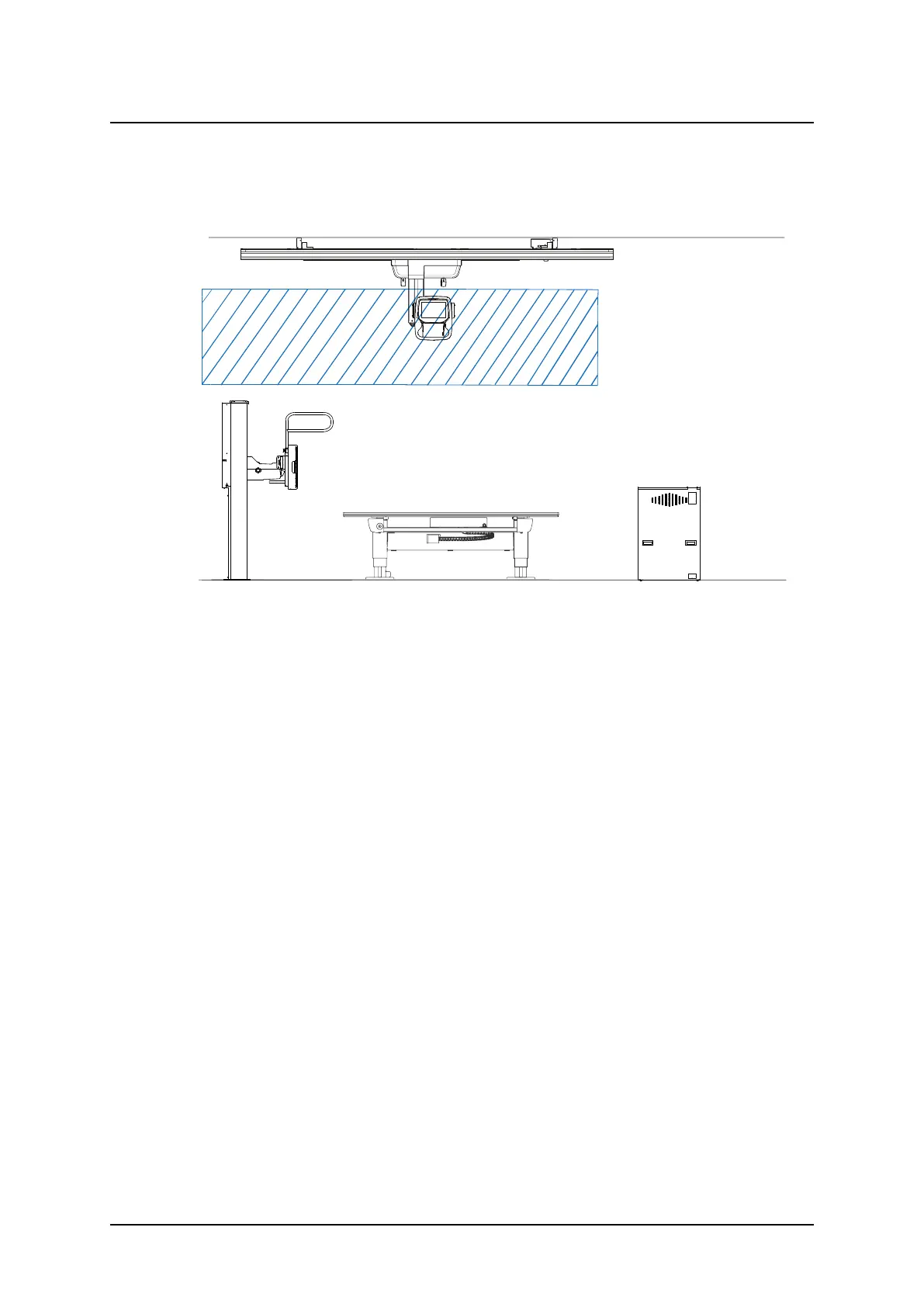

Transport interval zone
Fig. 4-20
When moving between positions outside the short-cut zones, the OTC will first move to the
transport interval zone.
Inside the transport interval zone the OTC will move horizontally until it reaches the intended
X, Y-position.
Then the OTC will move vertically, to the intended Z-position.
ARCOMA AB 1000-095-051-EN Rev. 1.1
Operation Manual
SWEDEN Page 106 2020-06-16
