ARCOMA PRECISION i5 - Overhead Tube Crane

Safety
Mechanical Safety
2.9.2 Overhead Tube Crane
4088
a
b
Z
3
2
1
4

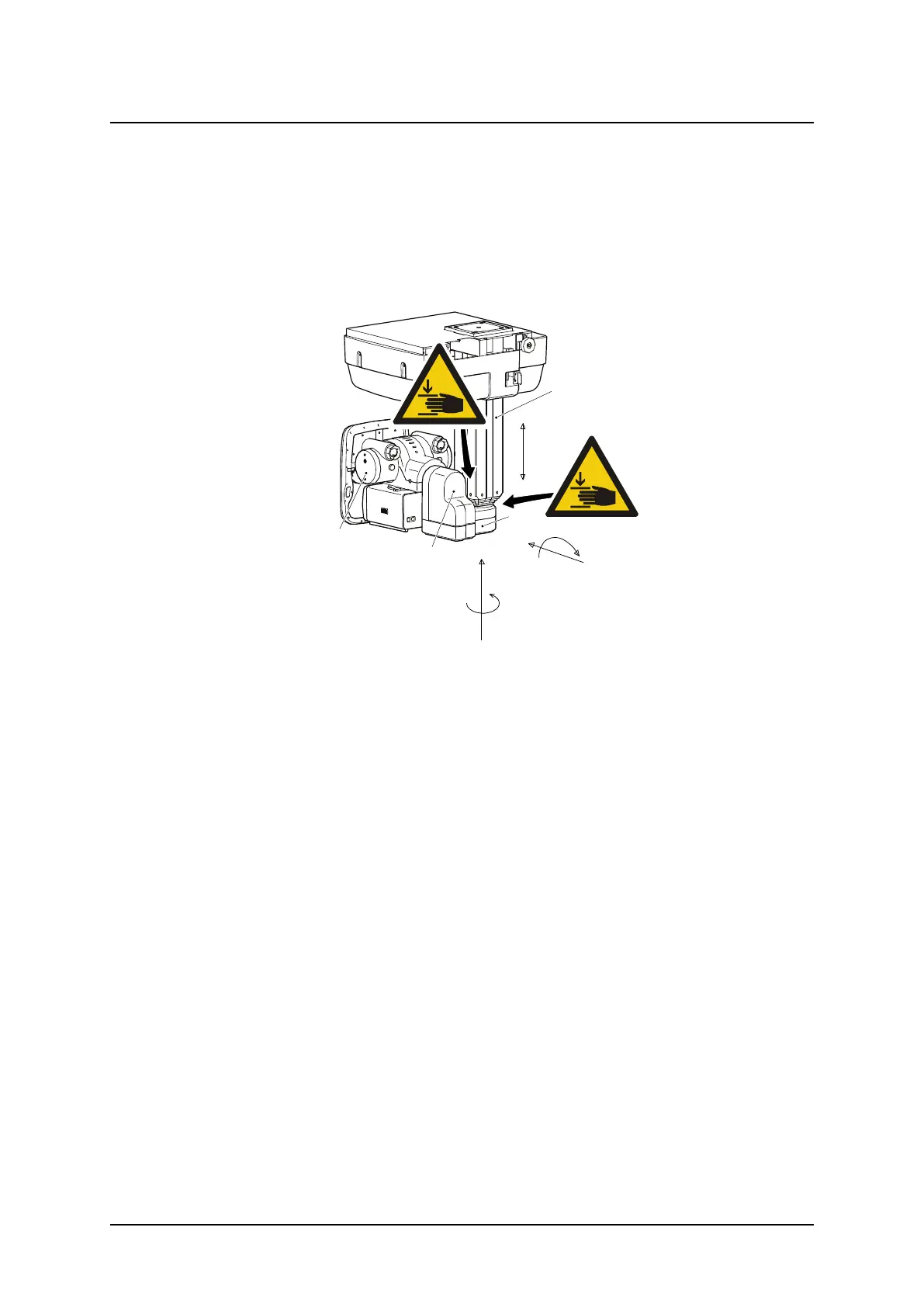

Fig. 2-3 Overhead Tube Crane, OTC
1. Column (Z)
2. Cover
3. X-ray tube
4. Column bottom plate
Possible squeeze hazard areas are indicated in the Fig. 2-3 Overhead Tube Crane, OTC.
Squeezing hazard can occur between the:
• column (1) and the column bottom plate (4) when the column is moving upwards (Z-
direction).
• cover (2) and the column (1) when the X-ray tube is moving in Beta (β) direction
