ARCOMA PRECISION i5 - Automatic Collimator

User Interface
Automatic Collimator Control

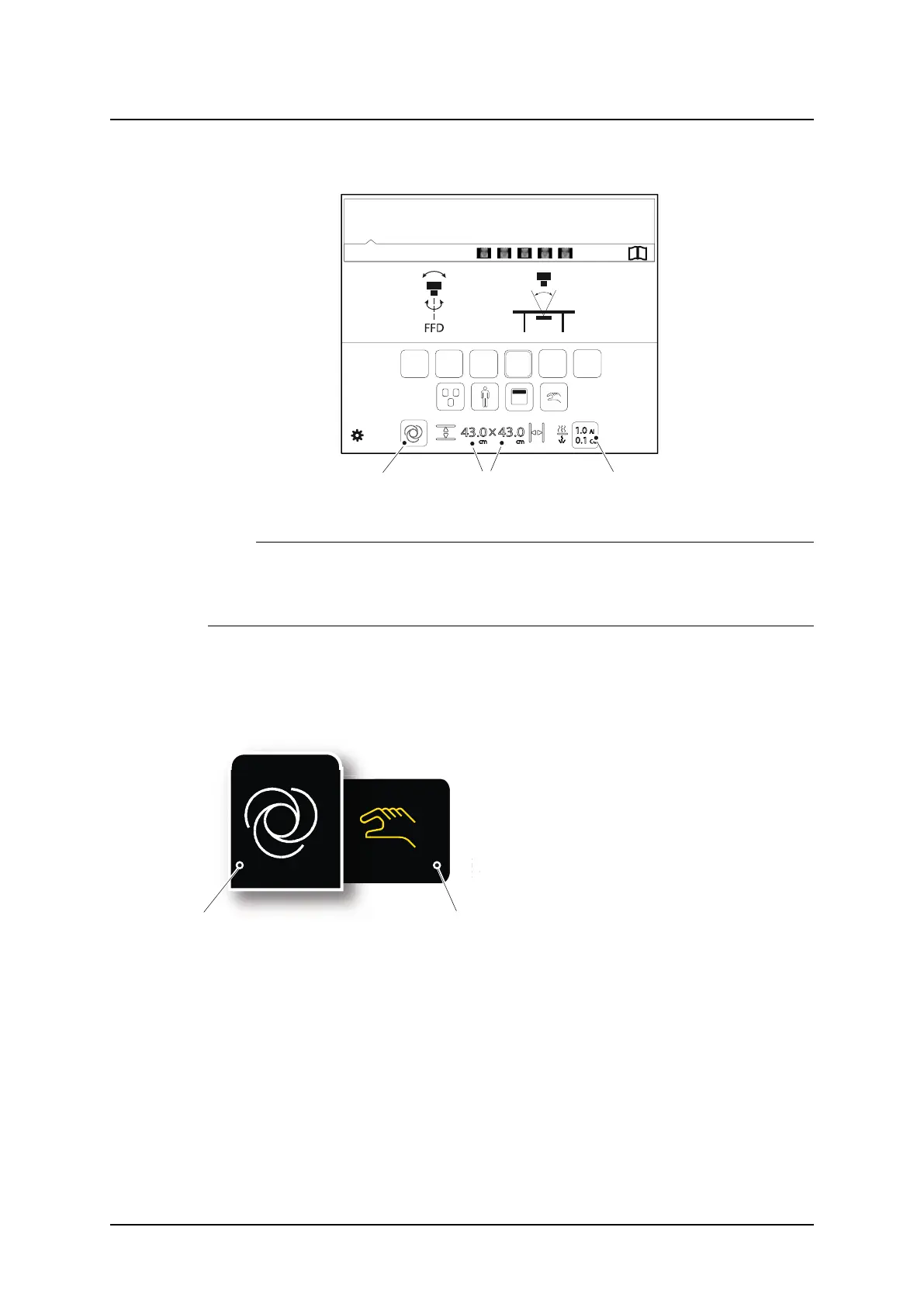

3.2.1 Automatic collimator
60˚
60˚
cm
110
ms
20
mA
250
kV
50
Density
1
+
8
mAs
AEC
Jane Doe
DoB 1977-03-06
ID 987-65-4320
Abdomen suspine
Age 36 Sex F
Acc No 987-65-4320
1.0
Al
0.1
Cu
43.0
cm
43.0
cm
x
i
321
1. Select Automatic or Manual mode of the collimator.
Note!
If there is no new examination and the System is in a Manual mode, the collimator
ignores the instructions of sent collimator area from the Imaging system. This can be use-
ful if the collimator area is intended to be kept for the next examination.
2. Collimator light/x-ray field height x width
3. Collimator filter selection
3.2.1.1 Collimator mode
4074
4074
1 2
Fig. 3-3 Collimator mode
In automatic mode, the collimator light
height and width is set from the anatomical
program. The collimator light size can still
be changed manually. In manual mode the
collimator light height and width is not set
from the anatomical program.
1. Automatic mode
2. Manual mode
When Automatic mode is selected the predefined values of the collimator light / x-ray field
size and the filter selection will be set automatically when the anatomical protocol is selected.
Both the light / x-ray field size and the filter can be changed when needed. In automatic mode
the maximum light / x-ray field size is restricted to the maximum active area of the imaging
unit.
When manual mode is selected the size of the collimator light / x-ray field size can be ad-
justed outside of the maximum active area of the imaging unit. When a new anatomical pro-
tocol is selected (for the same patient) the collimator light / x-ray field size or the filtration is
not changed even if size and filtration is defined different in the protocol.
