User Interface
Automatic Collimator Control
3.2.3 Patient Information
In this field the Patient Name, Patient ID, Date of Birth, Age, Sex and Accession number can
be shown.
The information shown is defined in the Setting menu. In the Setting menu it is also possible
to decide if the Patient information shall be shown always (picture 1), or on demand (picture
2).
When the button is shown on demand, the Patient information can be obtained by pushing
the “i” on the black bar.
The Patient information closes automatically, or when the bar is pushed once again.
i
Hand AP
DoB 1977-03-06
ID 987-65-4320
Hand AP
Age 36 Sex F
Acc No 987-65-4320
Jane Doe
Picture 2 Picture
1

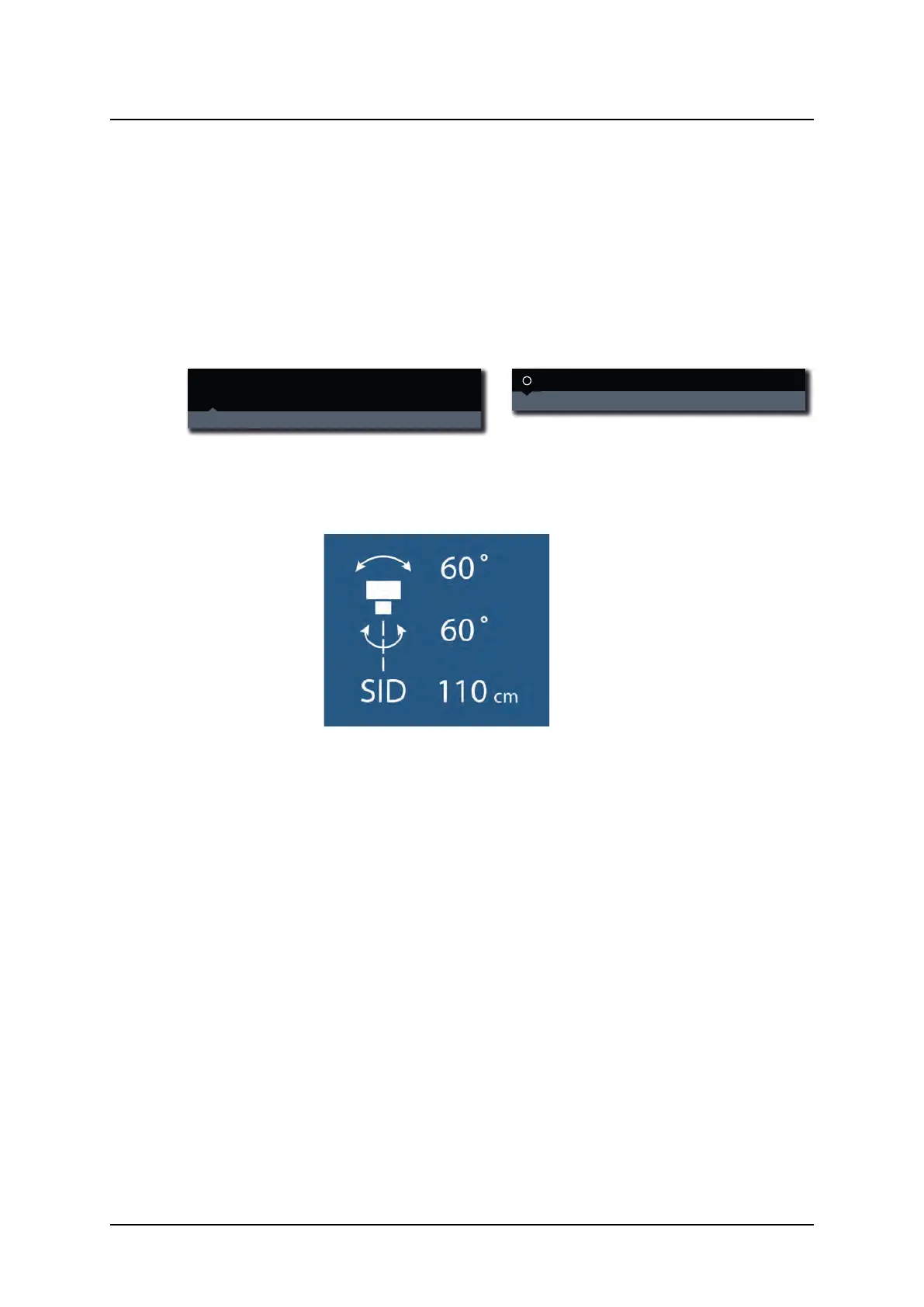

Fig. 3-6 Patient information display
3.2.4 Position Information
Fig. 3-7 Position information
A. Alpha angle (°)
B. Beta angle (°)
C. Source Image Distance (SID), or Height to floor (H) in Free or Auto Position Mode (cm/
inch)
The height to floor (H) is shown in Free mode and Auto position mode. In all other modes the
source image distance (SID) is shown. The unit for the distance can be either cm or inch,
and is set in the Setting menu (Fig. 3-7 Position information).
Operation Manual
1000-095-051-EN Rev. 1.1 ARCOMA AB
2020-06-16 Page 47 SWEDEN
