Safety
Safety issues when placing the patient
2.10.2 Weight restrictions, table

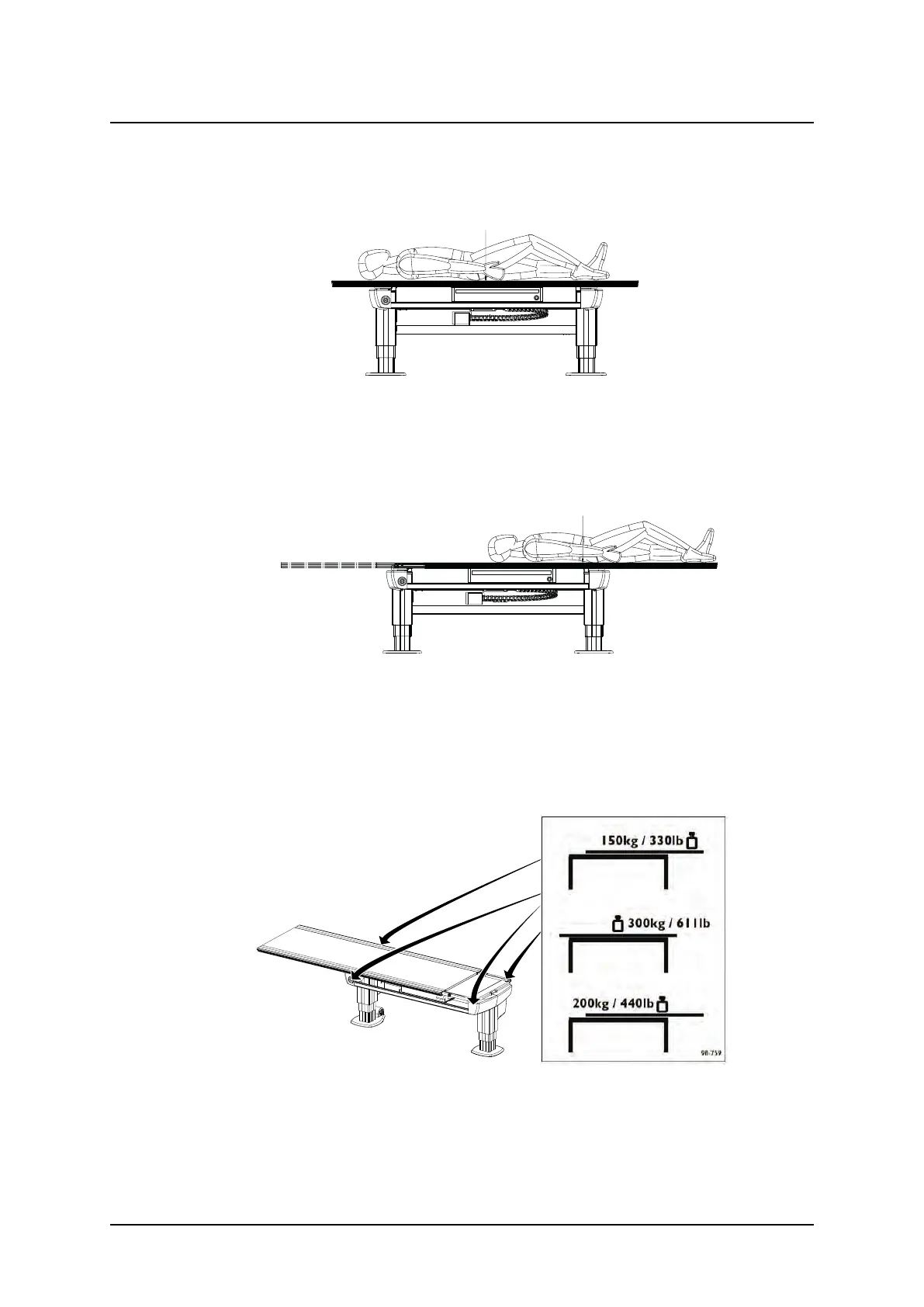

The following figures show the maximum load at different positions of the table.
MAX. 300 Kg
00
2277_0072.eps
Fig. 2-10 Table top centered
Table top centered over the table frame
• Maximum load of a patient lying or sitting
– 300 kg, see Fig. 2-10 Table top centered
002278_0072.eps
MAX. 200 Kg
Fig. 2-11 Table top outside table frame
Table top positioned outside the table frame
• Maximum load of a patient lying on the table top:
– 200 kg, see Fig. 2-11 Table top outside table frame
• Maximum load of at patient sitting on the table top:
– 150 kg.
Fig. 2-12 Maximum patient weight label
The table frame is marked on the upper side with the maximum weight when positioning in
outer positions, see Fig. 2-12 Maximum patient weight label.
