3.7.7 Moving Table Top
To manually move the table top, release the brakes and use the hand grip rails located at the
long sides of the table top.
1

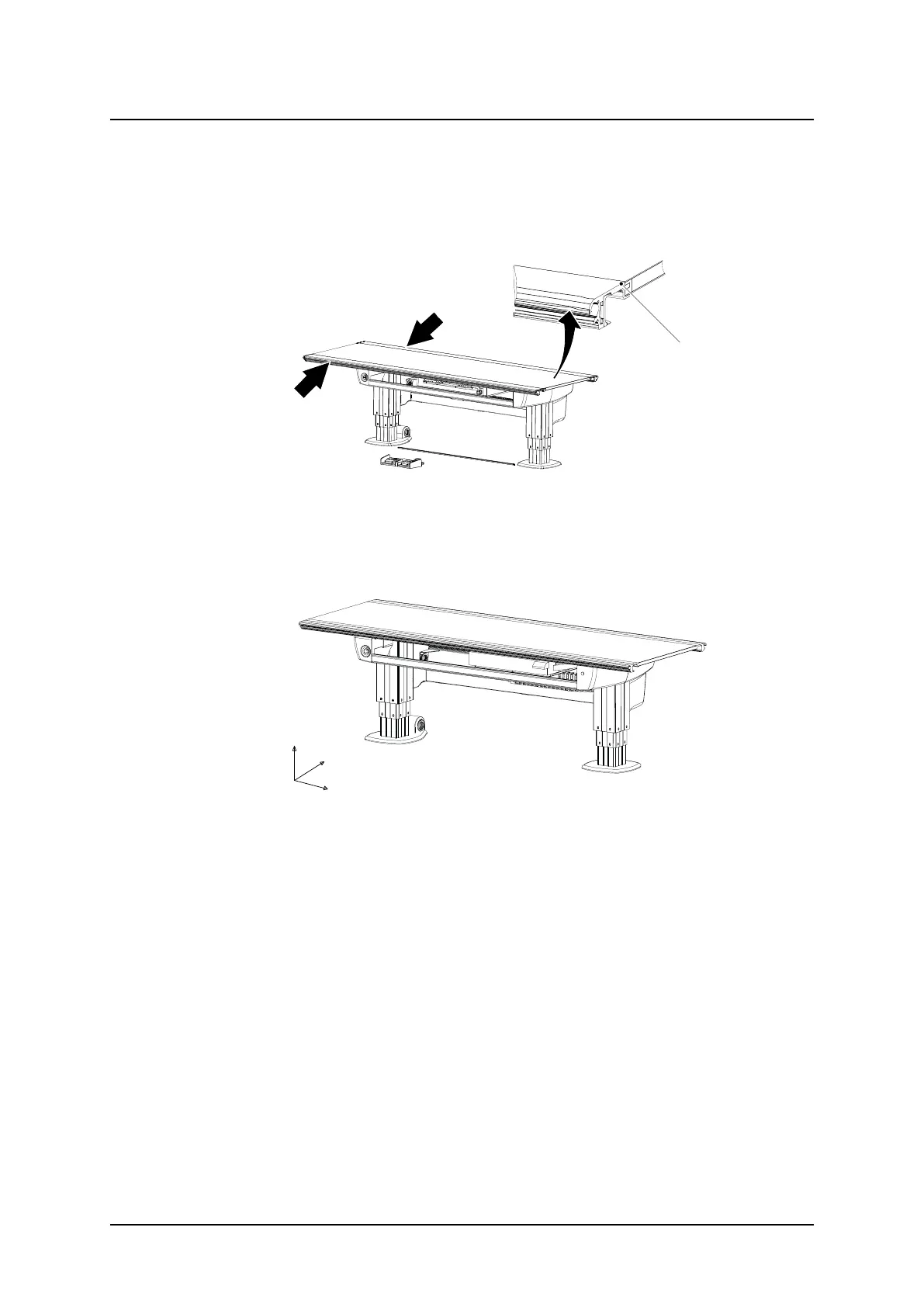

Fig. 3-44 Table hand grip rail
1. Hand grip rail
3.7.7.1 Directions of Movement
The figure below shows the directions of the table movement.
X
Y
Z
Front
Fig. 3-45 Directions of movement, Table
Z
Vertical movement
Y
Lateral movement
X
Longitudinal movement
3.7.8 Vertical Travel Safety (option)
The Table may, as an option, be equipped with a vertical travel safety system that protects
the table top.
It activates if a collision is detected and the force exceeds 20 kg, all movements will be
stopped.
