User Interface
Overhead Tube Crane
3 User Interface
3.1 Overhead Tube Crane
The overhead tube crane (OTC) can be moved to the correct position by autopositioning,
motorized movements or manual movements.
The OTC has a display that shows patient information, information of the tube angulation
and the selected workstation etc. The exposure parameters are shown and can easily be
changed from the OTC.
3.1.1 Direction of Movement

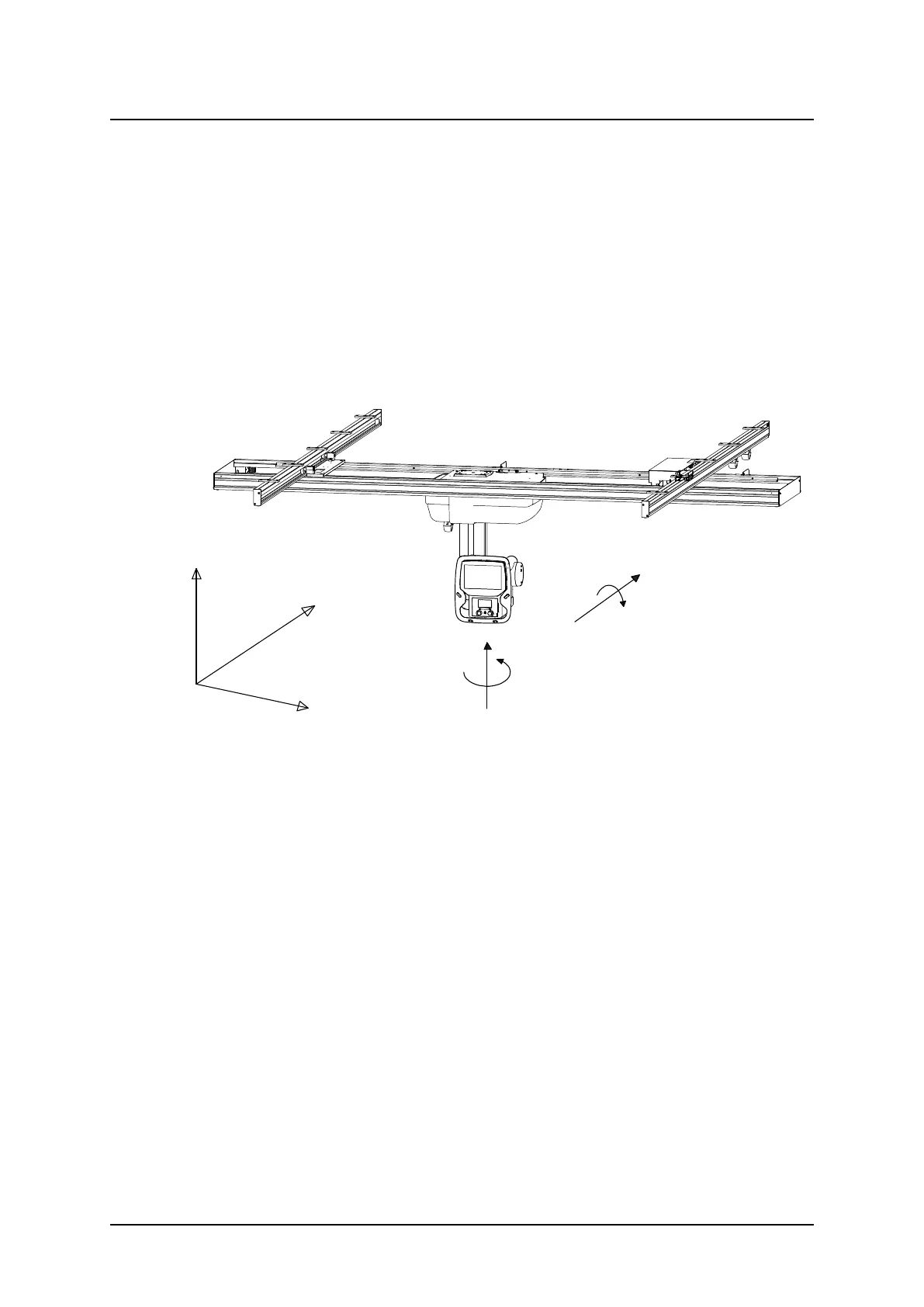

The figure below shows the movements of the OTC.
4072-01
Alpha
Beta
Z
X
0
Y
Fig. 3-1 OTC direction of movement
Z
Vertical movement Motorized
Y
Lateral movement Motorized and manual
X
Longitudinal movement
Motorized and manual
