Safety
Mechanical Safety
2.9.3 Table
Possible squeeze hazard areas are indicated in the Fig. 2-4 Squeeze hazard.
Squeezing hazard can occur between the:
• table top (1) and the top of the imaging unit (4); when the table top (1) is in the outer posi-
tion (Y-direction) or moving in a longitudinal direction (X-direction).
• table top (1) and the imaging unit rail (6); when the table top (1) is in the outer position (Y-
direction).
• imaging unit (4) and the cover (5); when the imaging unit is moving in a longitudinal direc-
tion (X-direction).
• column (7) and the footplate (8); when the column (7) is moving downwards (Z-direction).
• cover (2) and the column cover foot (3); when the column (7) is moving downwards (Z-
direction).
Z
Y
X
0
6
7
8
1 2 3 4 5
002010.eps

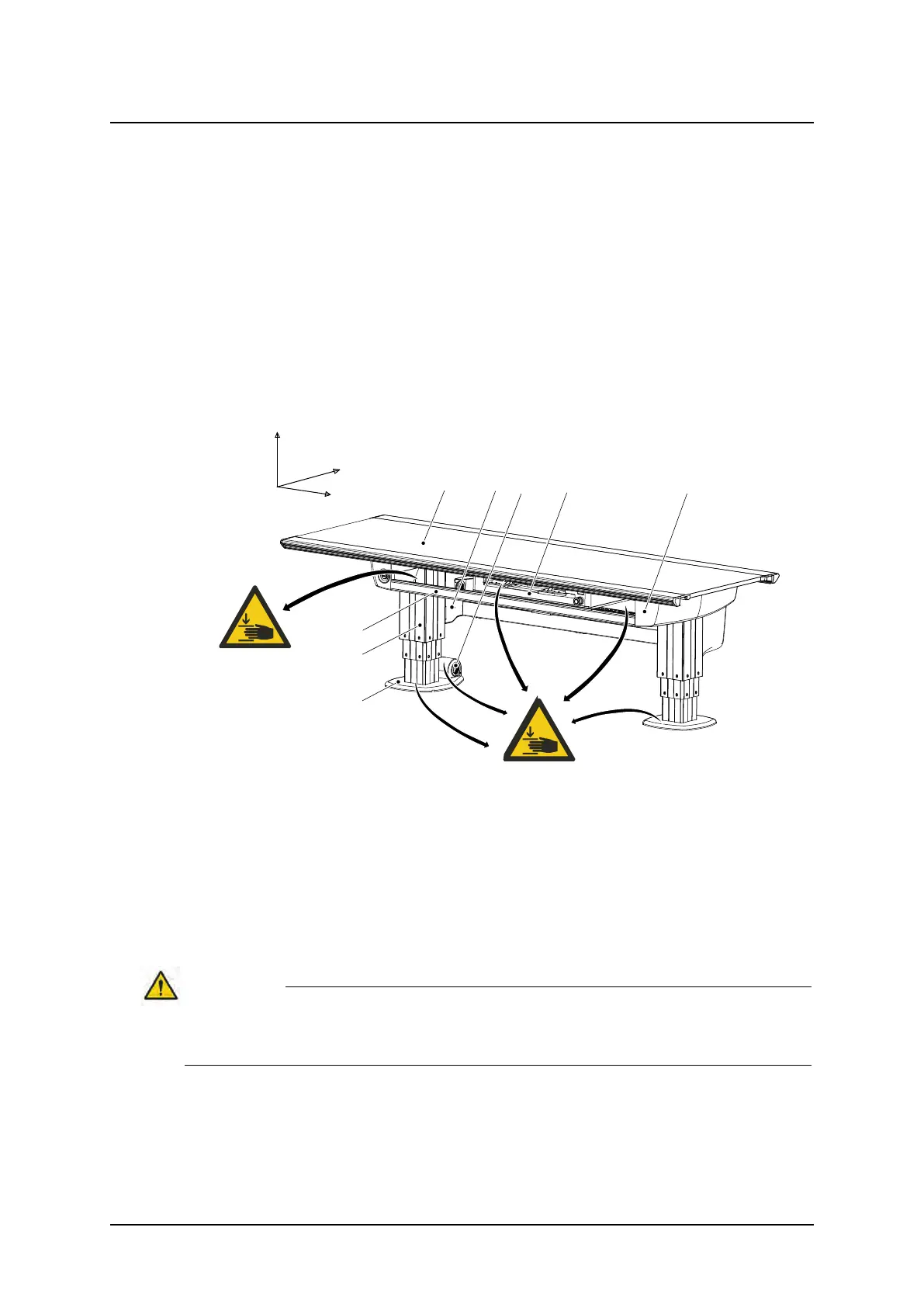

Fig. 2-4 Squeeze hazard
1. Table top (X/Y/Z)
2. Cover
3. Column cover foot
4. Imaging unit (X)
5. Cover
6. Imaging unit rail
7. Column (Z)
8. Footplate
WARNING!
Squeezing hazards may occur between the table top and the imaging unit or the imag-
ing unit rail.
ARCOMA AB 1000-095-051-EN Rev. 1.1
Operation Manual
SWEDEN Page 22 2020-06-16
