ARCOMA PRECISION i5 - System Display Overview

User Interface
Overhead Tube Crane
3.1.3 System Display Overview
4076
60˚
60˚
cm
110
ms
20
mA
250
kV
50
Density
1
+
8
mAs
AEC
Jane Doe
DoB 1977-03-06
ID 987-65-4320
Abdomen suspine
Age 36 Sex F
Acc No 987-65-4320
1.0
Al
0.1
Cu
43.0
cm
43.0
cm
x
i
2
1
2
2
1
4
3
5
6
7
9
6
1
6
6
8

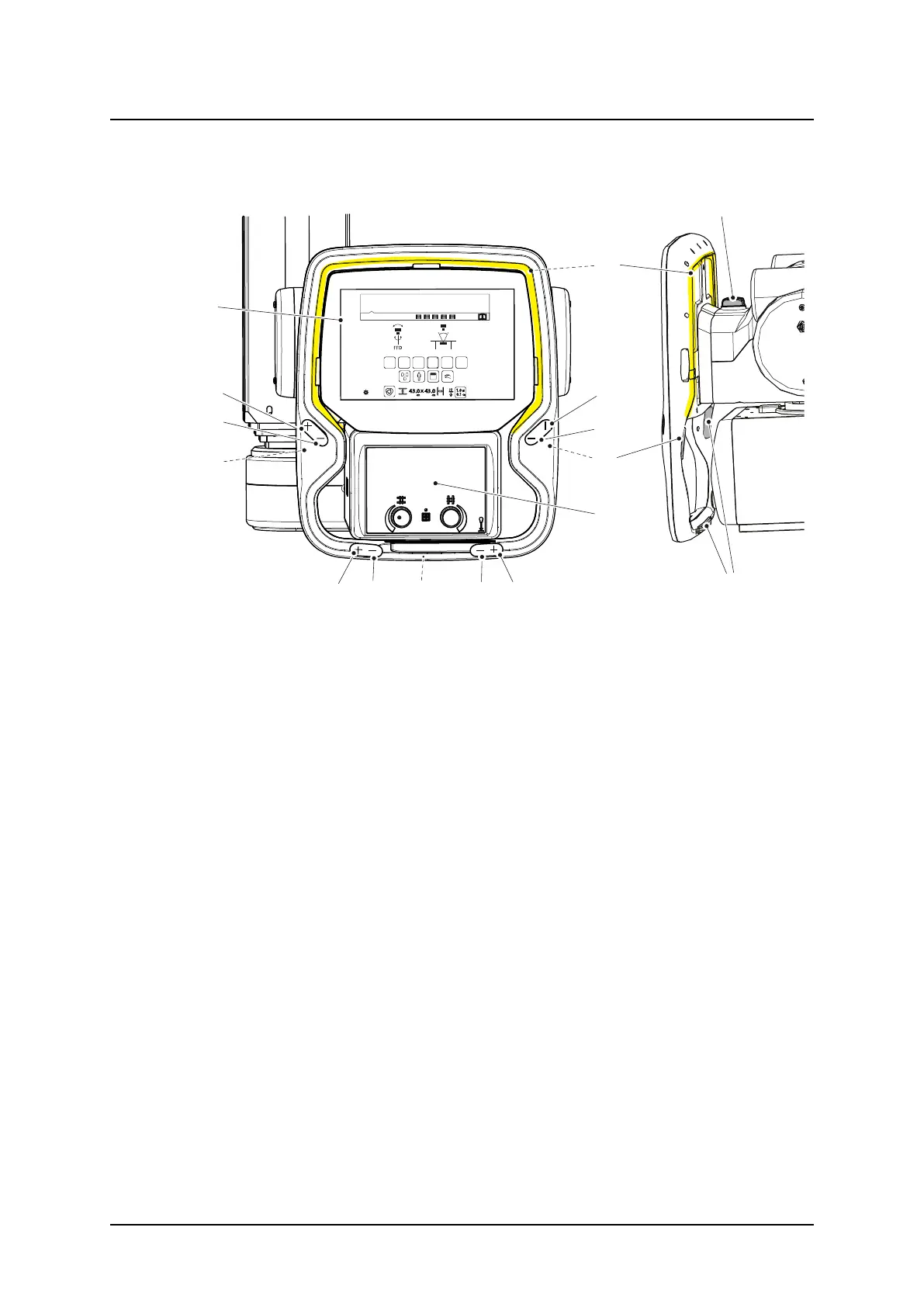

1. Up
2. Down
3. Y direction
4. X direction
5. Emergency brake (rear side)
6. Release all directions (rear side)
7. Automatic collimator, see 3.2.1 Auto-
matic collimator
8. Light indication, see 3.2.15 Light
indication
9. Display user interface, see 3.2.2
Display user interface
Operation Manual
1000-095-051-EN Rev. 1.1 ARCOMA AB
2020-06-16 Page 41 SWEDEN
