Safety
Mechanical Safety
2.9.4 Wallstand
Note!
The patient or operator is allowed to lean against the Wallstand patient handle or armrest,
but not to put any weight on it.
2.9.4.1 Standard Version of Wallstand

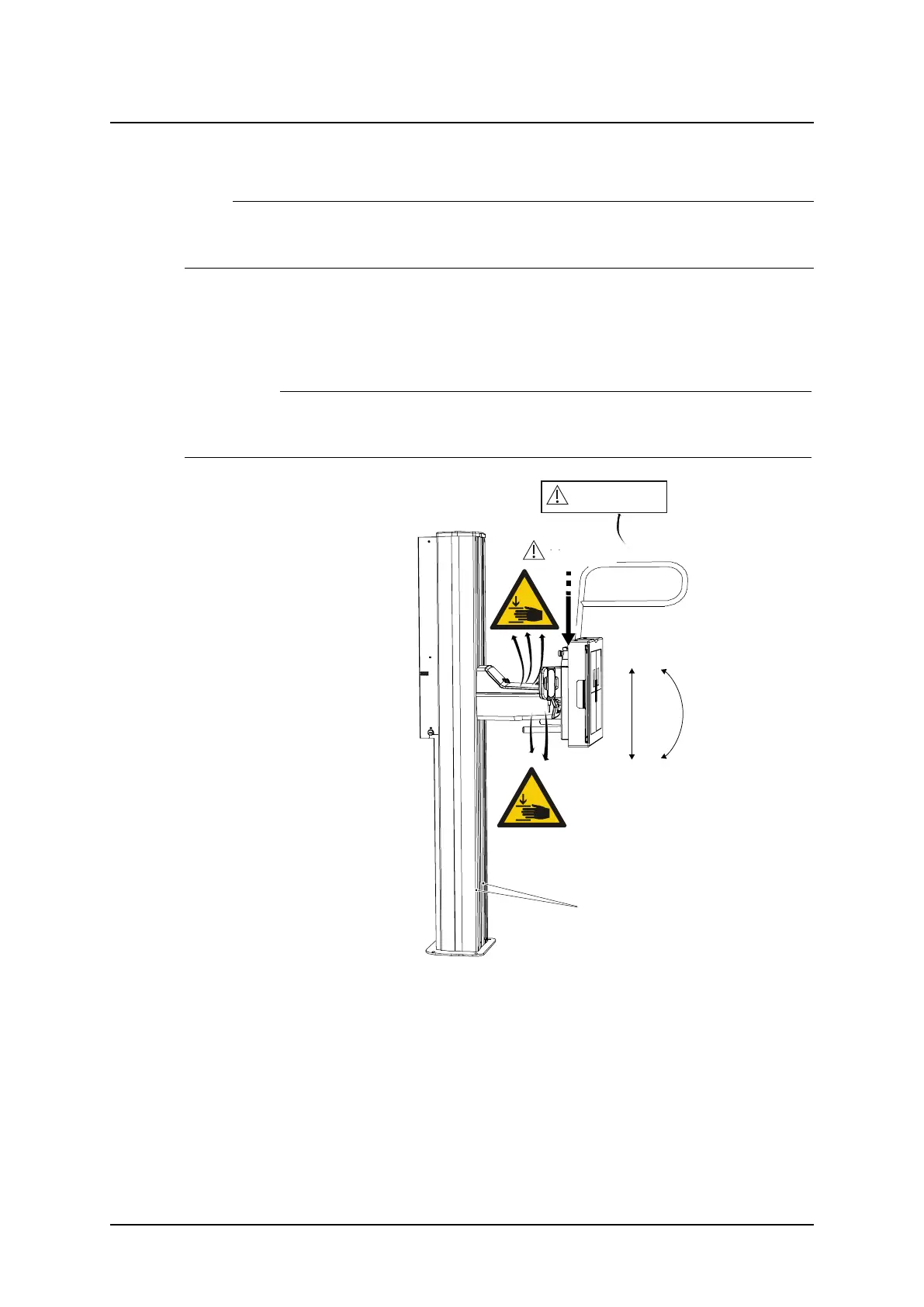

Possible squeezing hazard areas are indicated in figure. Getting stuck in the imaging unit
slide opening (1) causes squeezing hazard if the imaging unit is moving downwards (Z-
direction).
CAUTION!
If the motorized movement is operated, it is not allowed to have patient sitting or
standing in the surroundings of the Wallstand.
4011
Max 25kg
Z
1
Max 10kgMax 10kg
Fig. 2-6
1. Slide opening
Weight Restrictions
• The maximum weight to put on the Wallstand lateral armrest is restricted to 25 kg.
• For the Wallstand detector holder the maximum weight is set to 10 kg.
