Operating the System
Wallstand Examination Procedures
4.10.1.3 Basic Flow
Select a Wall Flexible mode examination.
The System display will display the following.

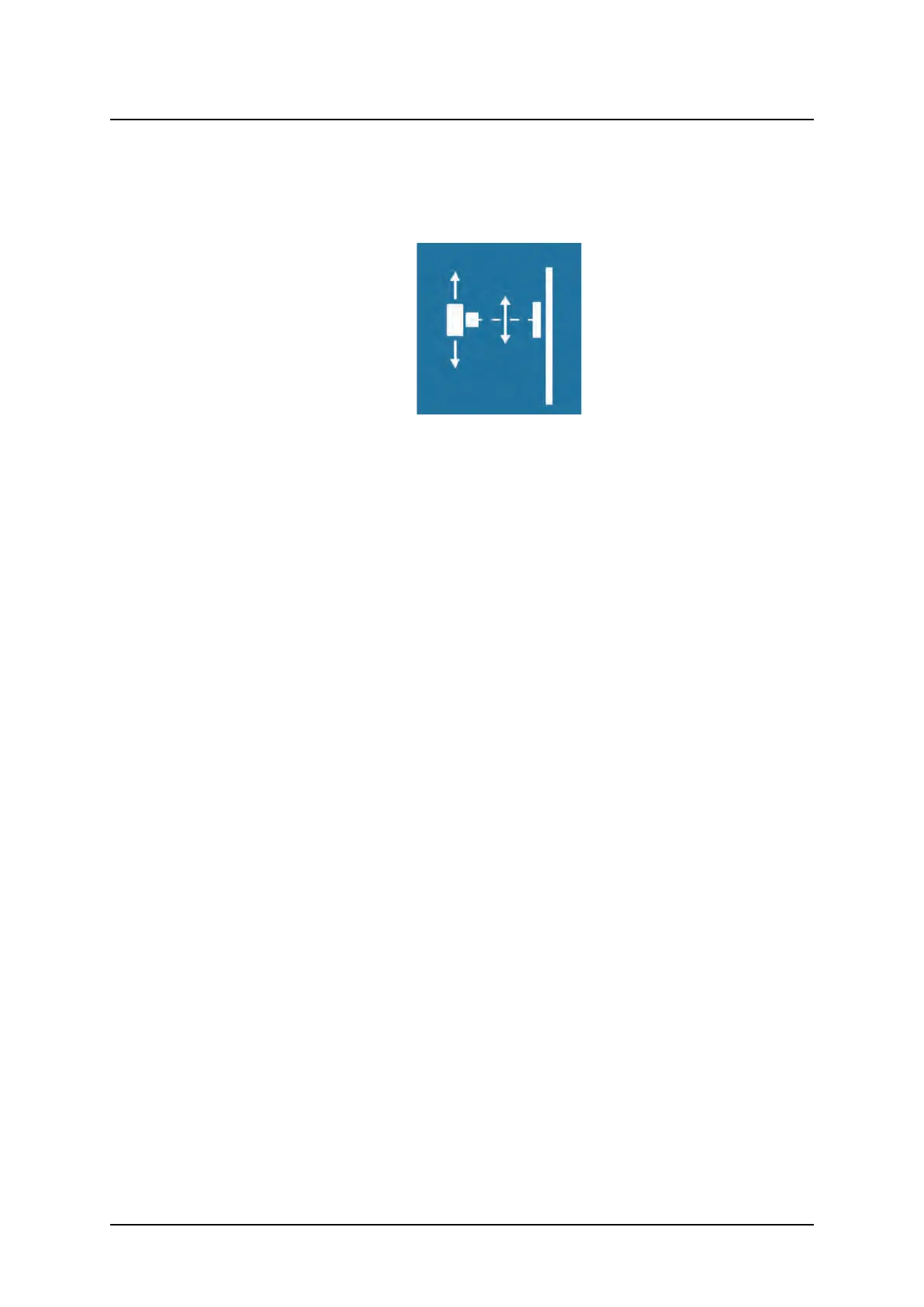

Fig. 4-32 Wall Flexible mode display
• The SID will be displayed.
Activate the mode by pressing the servo button.
• All movements are available.
• The OTC will automatically move to its programmed position.
• The OTC will either go direct to an aligned position to the detector or wait in the transporta-
tion height until detector is moved (wait or no wait selected).
• The mode will stay activated. The OTC beeps once and the servo mode indication light will
flash.
Adjust the height of the Wallstand.
Move the detector holder at the Wallstand.
• The OTC will move down and align with the Wallstand.
• The OTC will follow the Wallstand to stay aligned.
• The OTC turns on the collimator light when the correct height is reached.
Adjust the position.
• The mode will stay activated.
• The SID value is changed to the new distance (if selected distance towards the Wallstand
is changed).
