Lubrication Points
It is advisable to lubricate certain components peri-
odically to ensure free movement. Apply light oil to
the components using the following list as reference.
A. Accelerator Pedal Pivot/Cable Ends
B. Brake Pedal Pivot
C. Parking Brake Cable Ends
D. Shift Linkage
E. Differential Lock Cable End (XT)
F. Idle RPM Screw (Carburetor)

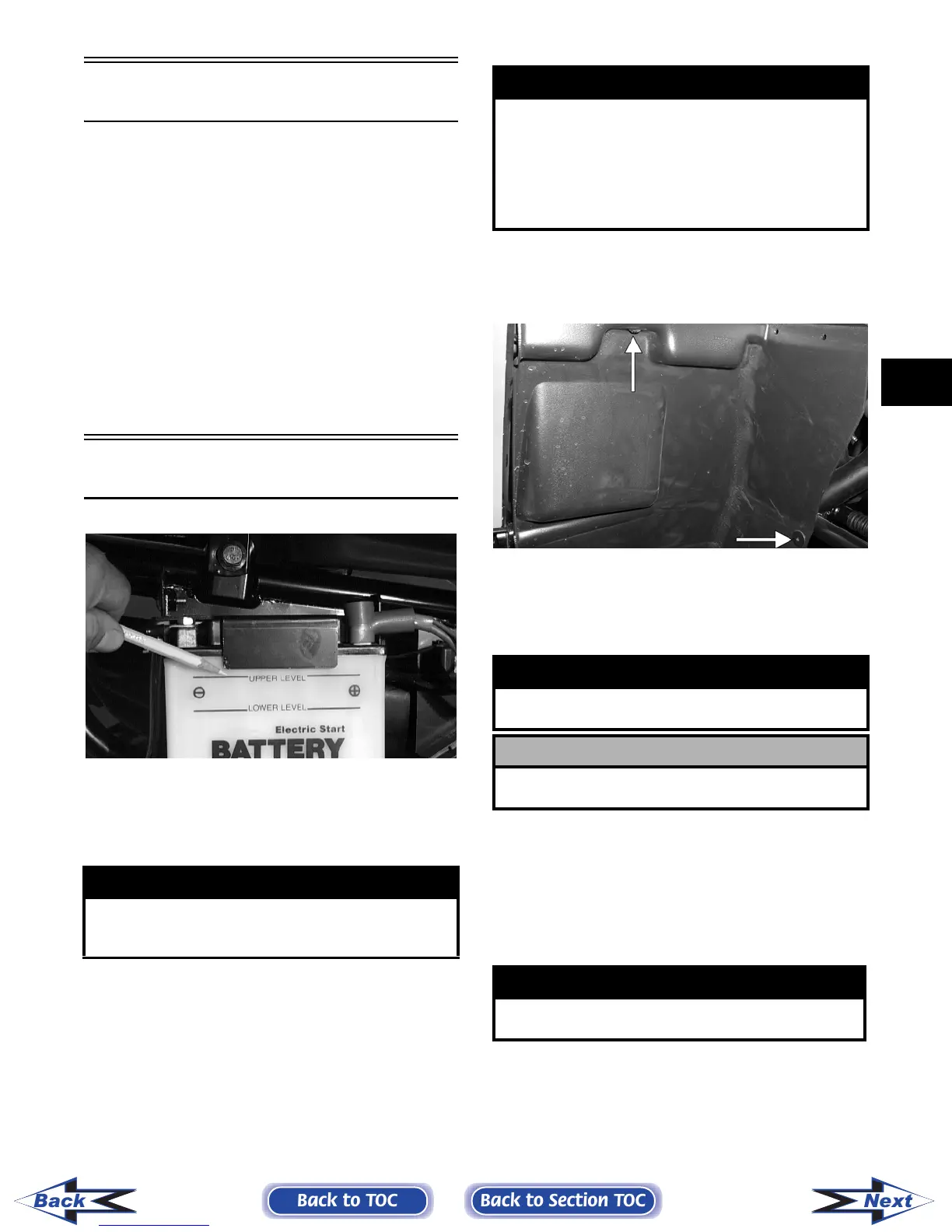

Battery
AF879D
The level of the battery fluid must be kept between
the upper and lower level lines at all times. If the
level drops below the lower level line, add only dis-
tilled water until it reaches upper level line.
If the battery is discharged, remove the battery from
the vehicle and charge the battery at the standard
charging rate of 1.5 amps for 10 hours.
To remove and charge the battery, use the following
procedure.
1. Remove the fasteners holding the left-rear
splash panel in place; then remove the battery
access panel.
PR054A
2. Remove the negative battery cable; then remove
the positive cable and the battery vent tube.
Remove the battery from the vehicle. Care
should be taken not to damage the vent tube.
3. Remove the vent plugs; then (if necessary) fill
the battery with distilled water to the UPPER
level indicated on the battery.
NOTE: Electrolyte should be at room tempera-
ture before filling. Do not use water or any other
liquid to activate a battery.
4. Allow the battery to stand for 15-30 minutes
after filling. Electrolyte level may fall during
this time. Refill with electrolyte to UPPER level
line.
! WARNING
Battery acid is harmful if it contacts eyes, skin, or
clothing. Care must be taken whenever handling a
battery.
! WARNING
Anytime service is performed on a battery, the fol-
lowing must be observed: keep sparks, open flame,
cigarettes, or any other flame away. Always wear
safety glasses. Protect skin and clothing when han-
dling a battery. When servicing battery in enclosed
space, keep the area well-ventilated. Make sure bat-
tery venting is not obstructed.
! WARNING
Avoid spillage and contact with skin, eyes, and
clothing.
! CAUTION
Do not charge the battery while it is in the vehicle
with the battery terminals connected.
! WARNING
Electrolyte is a sulfuric acid solution. Avoid spillage
and contact with skin, eyes, and clothing.
