8-8
PR226

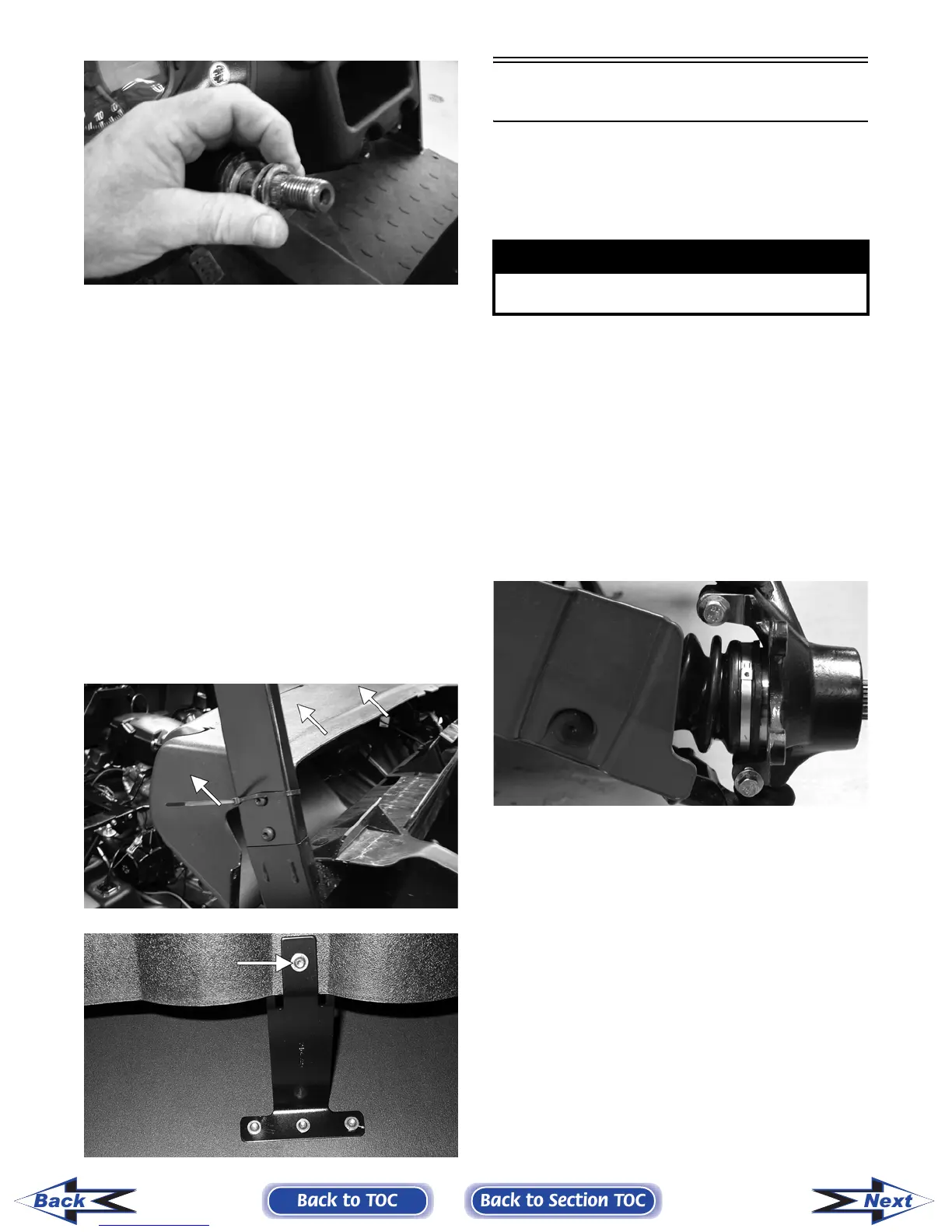

7. Hold rearward pressure on the steering wheel
and tighten the cap screw (from step 5) to speci-
fications.
8. Remove the steering wheel nut and apply one
drop of red Loctite #271 to the threads. Install
the nut and tighten to specifications.
9. Check that the steering wheel turns freely from
full-right to full-left; then install the steering
wheel cover.
NOTE: If the steering is stiff or the steering wheel
is difficult to turn, loosen and then tighten the cap
screw on the upper steering shaft joint. Check the
steering wheel nut for specified torque value.
10. Place the dash panel into position and secure to
the frame and center support with the six
torx-head screws and the cap screw and nut.
PR181A
PR475A
Steering Knuckles
REMOVING AND DISASSEMBLING
1. Secure the vehicle on a support stand to elevate
the wheel; then remove the wheel.
2. Remove the cotter pin from the axle.
3. Remove the nut securing the hub.
4. Remove the brake caliper.
5. Remove the hub assembly.
6. Remove the cotter pin from the tie rod end and
remove the tie rod end from the knuckle.
7. Remove the two cap screws securing the ball
joints in the knuckle.
PR193
8. Tap the ball joint end out of the knuckle; then
remove the knuckle.
9. Remove the snap ring securing the bearing in
the knuckle; then press the bearing out of the
knuckle.
! WARNING
Make sure the vehicle is solidly supported on the
support stand to avoid injury.
