3-29
3
ATV1014

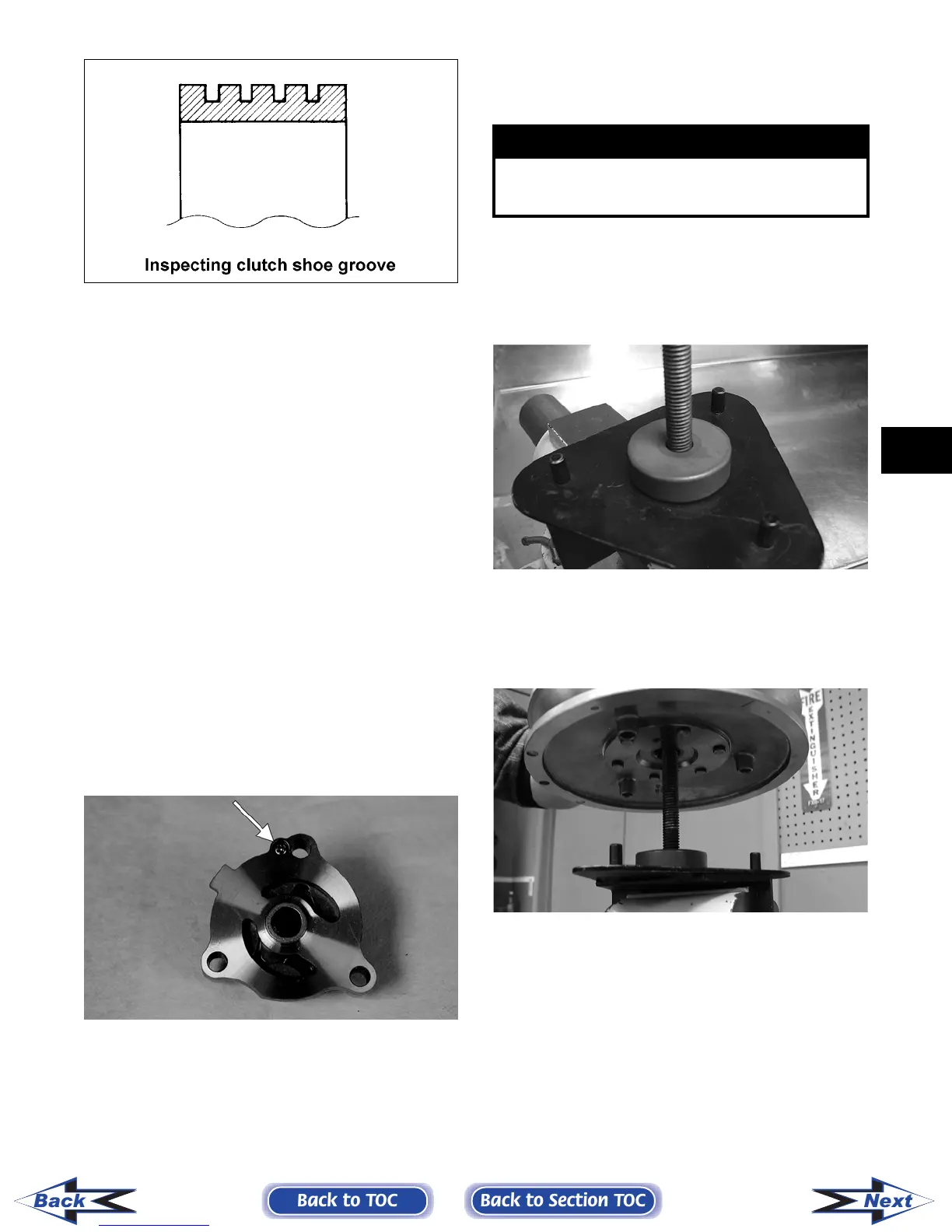

INSPECTING CLUTCH HOUSING
1. Inspect the clutch housing for burns, grooving,
cracks, or uneven wear.
2. If the housing is damaged in any way, the hous-
ing must be replaced.
INSPECTING PRIMARY
ONE-WAY DRIVE
1. Insert the drive into the clutch housing.
2. Rotate the inner race by hand and verify the
inner race rotates only one direction.
3. If the inner race is locked in place or rotates both
directions, the drive assembly must be replaced.
INSPECTING OIL PUMP
1. Inspect the pump for damage.
2. It is inadvisable to remove the screw securing
the pump halves. If the oil pump is damaged, it
must be replaced.
CD988A
DRIVEN PULLEY ASSEMBLY
Disassembling
1. Secure Driven Pulley Compressor (p/n
0444-121) in a suitable holding fixture such as a
bench vise; then remove the wing nut, holding
handle, flat washer, and pilot bushing leaving
the large spacer on the compressor tool base.
CD047
2. Place the driven pulley assembly onto the com-
pressor tool base engaging the dowel pins into
appropriate holes in the fixed face of the assem-
bly.
CD048
3. Install the pilot bushing with the machined end
directed down; then fit the bushing into the pul-
ley hub.
! WARNING
This procedure involves relaxing a compressed
spring assembly. DO NOT attempt disassembling
without the proper tools.
