Arctic Cat 2007 - Prowler;Xt

3-3
3
Prowler/XT
(Table of Contents)
Removing Engine/Transmission ............................. 3-3
Top-Side Components............................................. 3-7
Removing Top-Side Components ........................... 3-7
Right-Side Components ........................................ 3-11
Removing Right-Side Components....................... 3-11
Left-Side Components .......................................... 3-14
Removing Left-Side Components ......................... 3-14
Center Crankcase Components ........................... 3-18
Separating Crankcase Halves............................... 3-18
Disassembling Crankcase Half ............................. 3-18
Servicing Components.......................................... 3-20
Assembling Crankcase Half .................................. 3-36
Joining Crankcase Halves..................................... 3-38
Installing Left-Side Components ........................... 3-39
Installing Right-Side Components......................... 3-42
Installing Top-Side Components ........................... 3-45
Installing Engine/Transmission.............................. 3-51
Removing Engine/
Transmission
Many service procedures can be performed without
removing the engine/transmission from the frame.
Closely observe the note introducing each sub-sec-
tion for this important information.
Support the vehicle on a suitable lift or jack stands
allowing room to perform work from the underside.
 NOTE: Locate the jack stands to allow removing
of the center belly panel.
1. Remove the seats and center console; then
remove the left-side and right-side seat-bases.

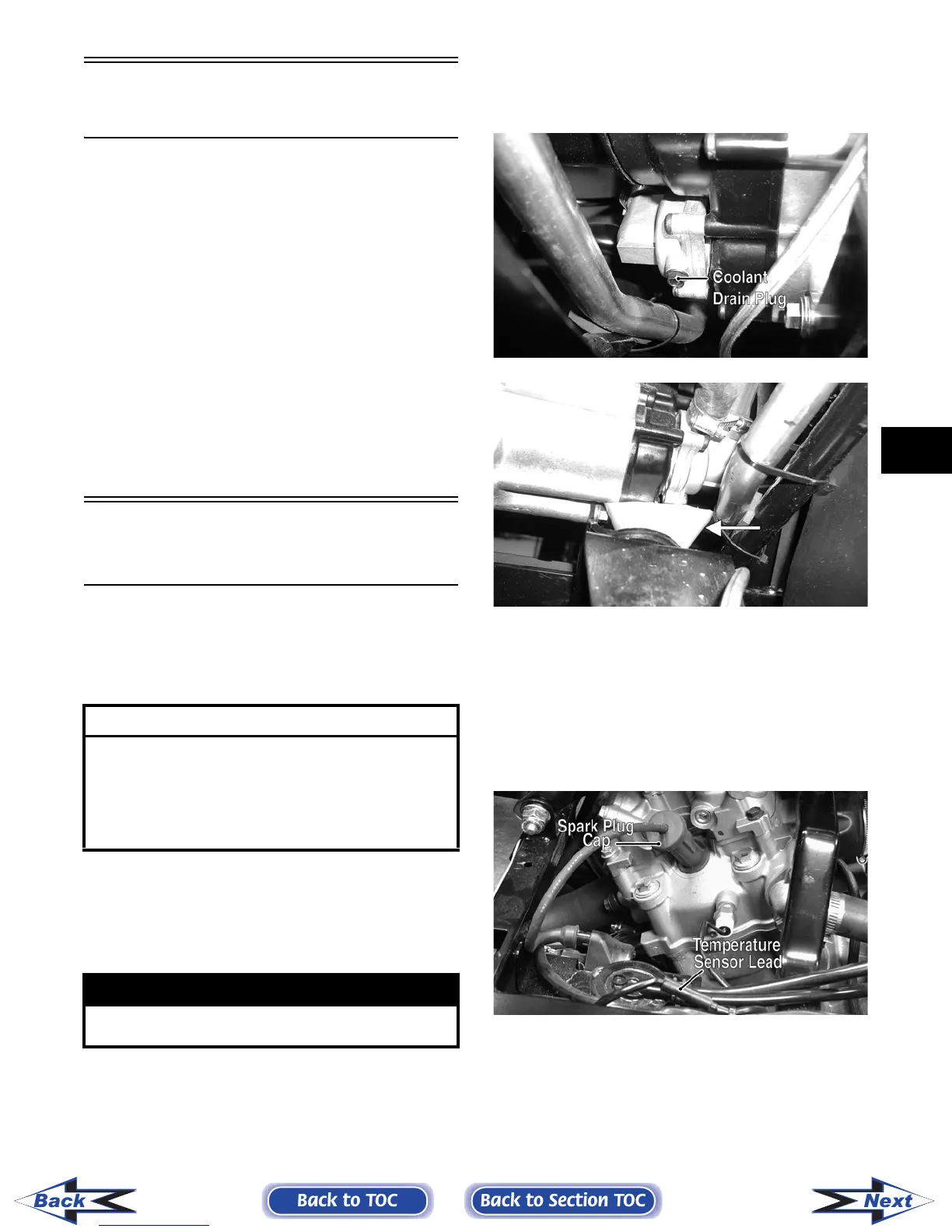

2. Remove the center belly panel; then drain the oil
and coolant.
 NOTE: Use a small funnel between the frame and
coolant drain plug to prevent coolant from drain-
ing on the frame and splashing.
PR122A
PR156A
3. Remove the negative cable from the battery;
then remove the positive cable.
4. From the left-side, remove the spark plug cap;
then disconnect the temperature sensor lead,
speed sensor connector (XT), fuel level sensor
connector (XT), and reverse override switch
connector.
PR130A
 AT THIS POINT
If the technician's objective is to service/replace
left-side cover oil seals (3), front output joint oil seal
(1), rear output joint oil seal (1), and/or the oil
strainer (from beneath the engine/ transmission), the
engine/transmission does not have to be removed
from the frame.
! WARNING
Make sure the vehicle is solidly supported on the
support stands to avoid injury.
