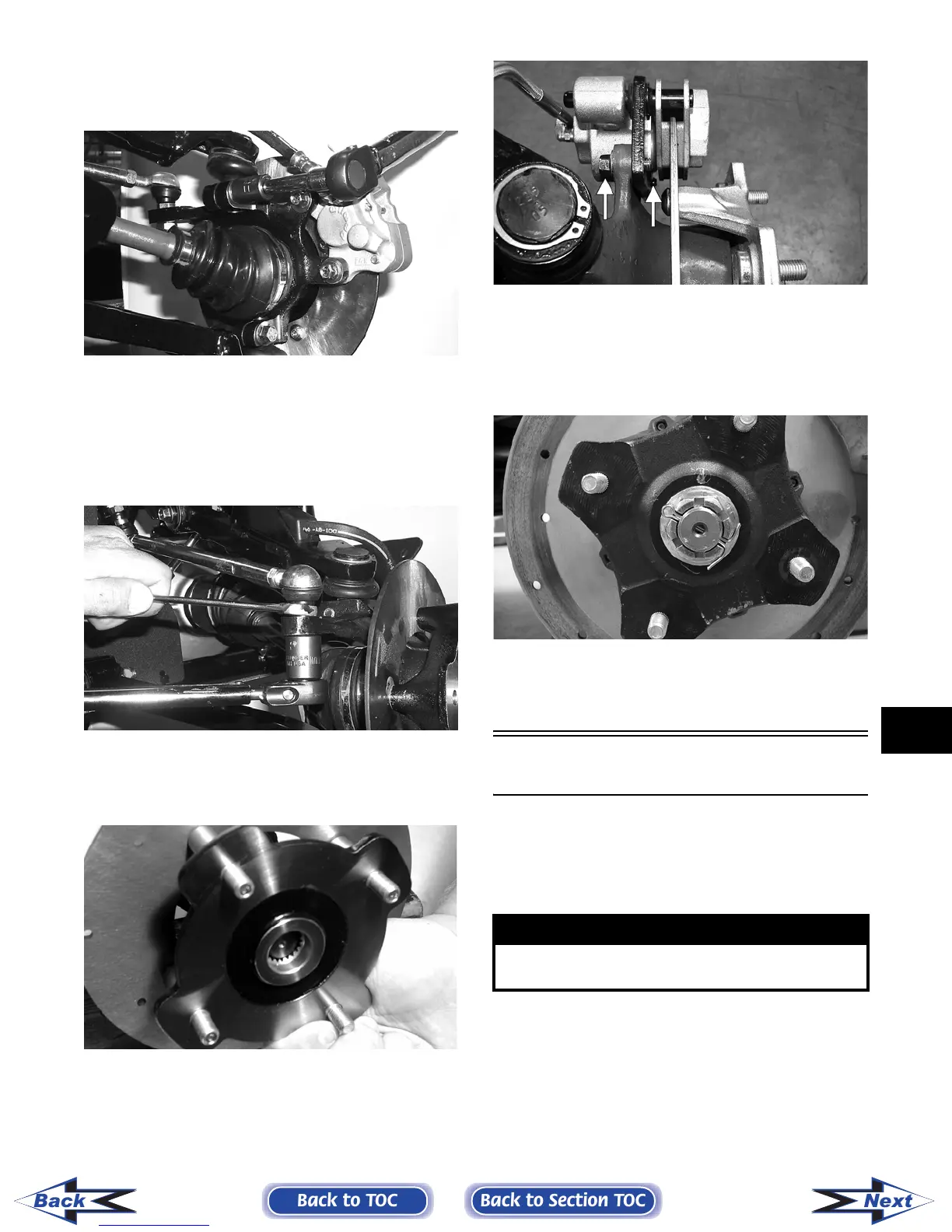

7-5
7
6. Install the knuckle assembly onto the ball joints
and secure with cap screws. Tighten to specifi-
cations.
AF628D
7. Install the tie rod end and secure with the nut.
Tighten to specifications; then install a new cot-
ter pin and spread the pin to secure the nut.
NOTE: During assembly, new cotter pins should
be installed.
AF618D
8. Apply grease to the hub and drive axle splines;
then install the hub assembly onto the drive
axle.
CD009
9. Secure the hub assembly with the nut. Tighten
only until snug.
10. Secure the brake caliper to the knuckle with the
two cap screws. Tighten to specifications.
PR377B
11. Secure the hub nut (from step 9) to the
shaft/axle. Tighten to specifications.
12. Install a new cotter pin and spread the pin to
secure the nut.
PR260
13. Install the wheel and tighten to specifications.
14. Remove the vehicle from the support stand.
Rear A-Arms
REMOVING
1. Secure the vehicle on a support stand to elevate
the wheels
.
2. Set the parking brake.
3. Remove the wheel.
4. Remove the cotter pin securing the hex nut; then
remove the hex nut.
! WARNING
Make sure the vehicle is solidly supported on the
support stand to avoid injury.
