9-4
2. Select the 2WD position on the 2WD/4WD
selector switch; then turn the ignition switch to
the ON position and select the LOCK position
on the toggle. The front drive actuator should
operate engaging four-wheel drive.
NOTE: It may be necessary to turn the steering
wheel or to rock the vehicle forward and backward
to align the differential lock splines and allow
engagement.
3. Return the toggle to the pushed-in position and
listen for the front drive actuator to operate.
4. Turn the ignition switch to the OFF position.
Tighten the jam nut securely; then install the
protector sleeve on the adjuster assembly.
Low Range/
High Range/Neutral/
Reverse Lever
REMOVING
1. Remove the seats and center console.
2. Remove the flange nut and shoulder screw from
the shift lever pivot; then remove the shift lever.
Account for the shifter spring.
PR340
INSTALLING
1. With the shifter spring in place on the shift lever,
install the shift lever onto the shifter axle.
2. Install the shoulder screw and secure with the
flange nut. Tighten to specifications (see Section
10).

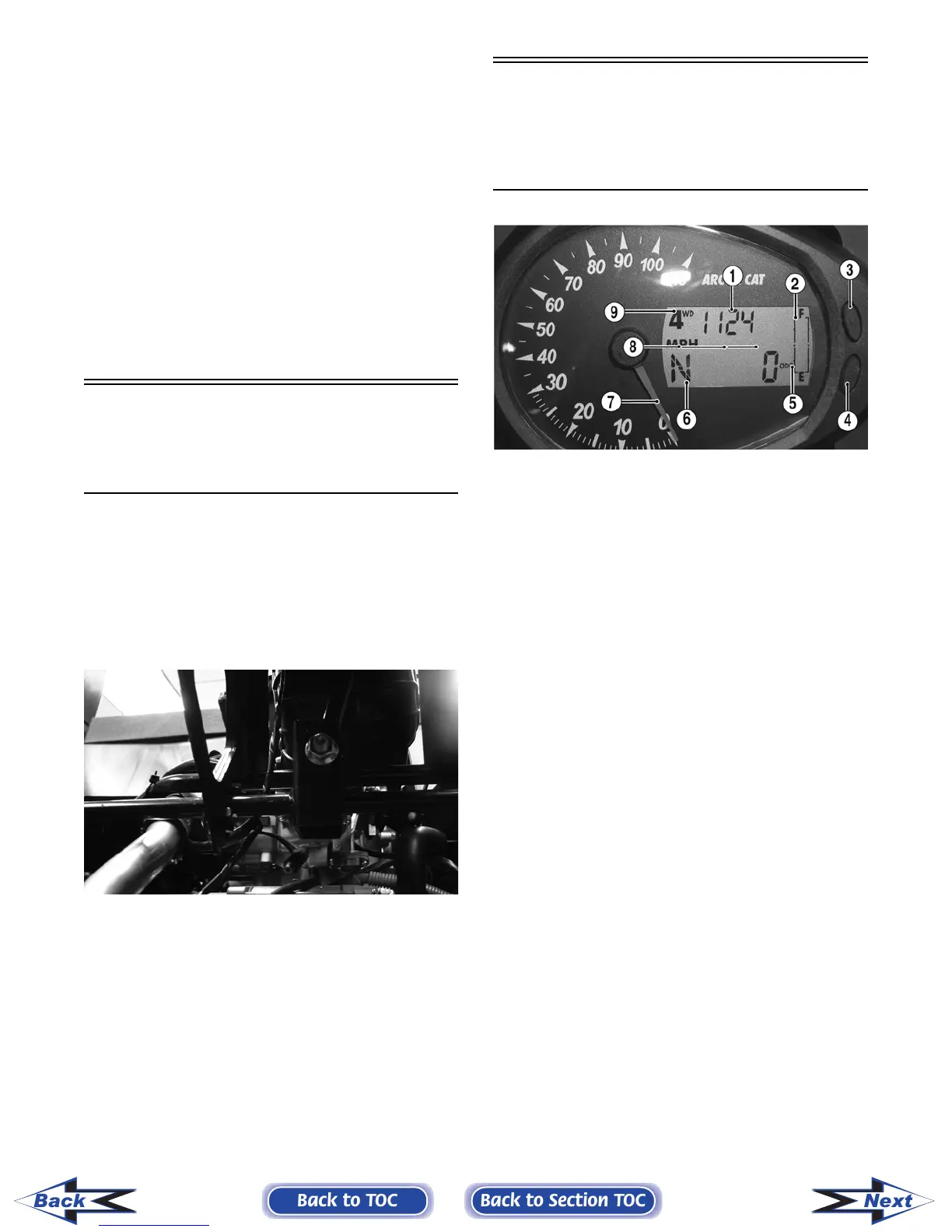

Speedometer/
Tachometer/LCD/
Indicator Light
(XT)
CF094B
1. Clock/Engine Hour Meter - The clock function
indicates time in the 12 hour mode; the hour
meter indicates the total time the vehicle has run
and cannot be reset to zero. To set the clock, use
the following procedure.
A. With the ignition switch in the ON position,
press and release the Mode Button (3) until
the Clock/Engine Hour Meter (1) is dis-
played; then (if necessary) press and release
the Set/Reset Button (4) to the clock display.
B. Press and hold the Set/Reset Button (4) until
the minutes stop scrolling and the hour dis-
play starts to scroll. Momentarily release
when the correct hour is displayed; then
repeatedly press and release the Set/Reset
Button (4) until the correct minutes are dis-
played.
NOTE: Approximately two seconds after releas-
ing either Button, the LCD will return to normal
operation.
NOTE: Clock memory power is supplied through
the 15-amp accessory fuse and verified during
gauge “power-up” and reset. In the event of clock
memory power failure (blown fuse, etc.), the gauge
will “power-up,” reset, and shut down repeatedly
until clock memory power is restored. Always
check the 15-amp accessory fuse if this gauge
condition is noted.
NOTE: The engine hour meter will not activate
until engine speed exceeds 500 RPM.
2. Fuel Level Indicator - Indicates approximate
amount of gasoline in the gas tank.
