Arctic Cat 2007 - Universal Joints

6-26

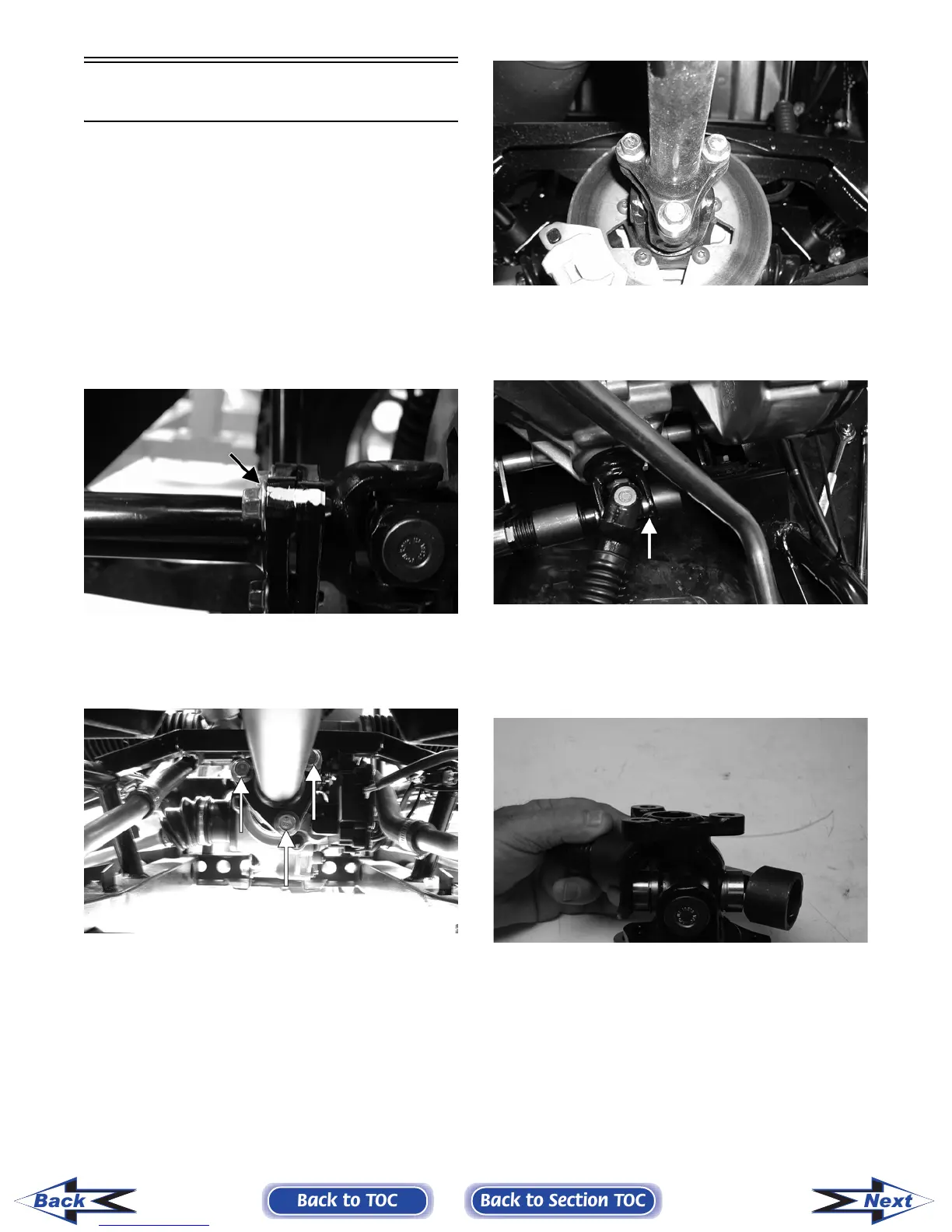

Universal Joints
REMOVING
 NOTE: The four universal joints can be accessed
by removing the belly panel. To remove the belly
panel, see Belly Panel in Section 8.
1. Support the vehicle on suitable jack stands ele-
vated high enough to allow working from the
underside of the vehicle.
2. To aid in installing, match mark drive-line com-
ponents prior to removing.
PR152A
3. Remove the cap screws securing the propeller
shaft flange to the yoke flange on the appropri-
ate drive-line; then remove the propeller shaft.
PR120A
PR121
4. Install U-Joint Separator Tool (p/n 0444-128) on
the universal joint fixed yoke; then remove the
bearing cup retainers.
PR354A
5. Using a suitable socket and ratchet handle,
rotate the jackscrew to push the bearing cup out
of the yoke; then remove the tool and the bear-
ing cup.
PR359
6. Install the separator tool on the opposite side of
the yoke to push the second bearing cup from
the yoke; then remove the tool and separate the
universal joint.
7. Secure the separator tool in a vise and repeat
steps 4-6 to remove the bearing cups from the
movable yoke.
