8-15
8
INSTALLING
1. With the help of an assistant or an adequate lift,
set the cargo box into position on the frame;
then position the two upper pivot housings
between the cargo box and frame. Lightly grease
the pivot housings.
2. Align the holes in the upper pivot housings with
the holes in the cargo box; then install the lower
pivot housings and secure with the four shoulder
cap screws. Tighten to specifications.
3. Raise the cargo box; then connect the lift sup-
port to the frame, install the cap screw and nut,
and tighten the nut securely.
4. Lower the cargo box and lock into position.

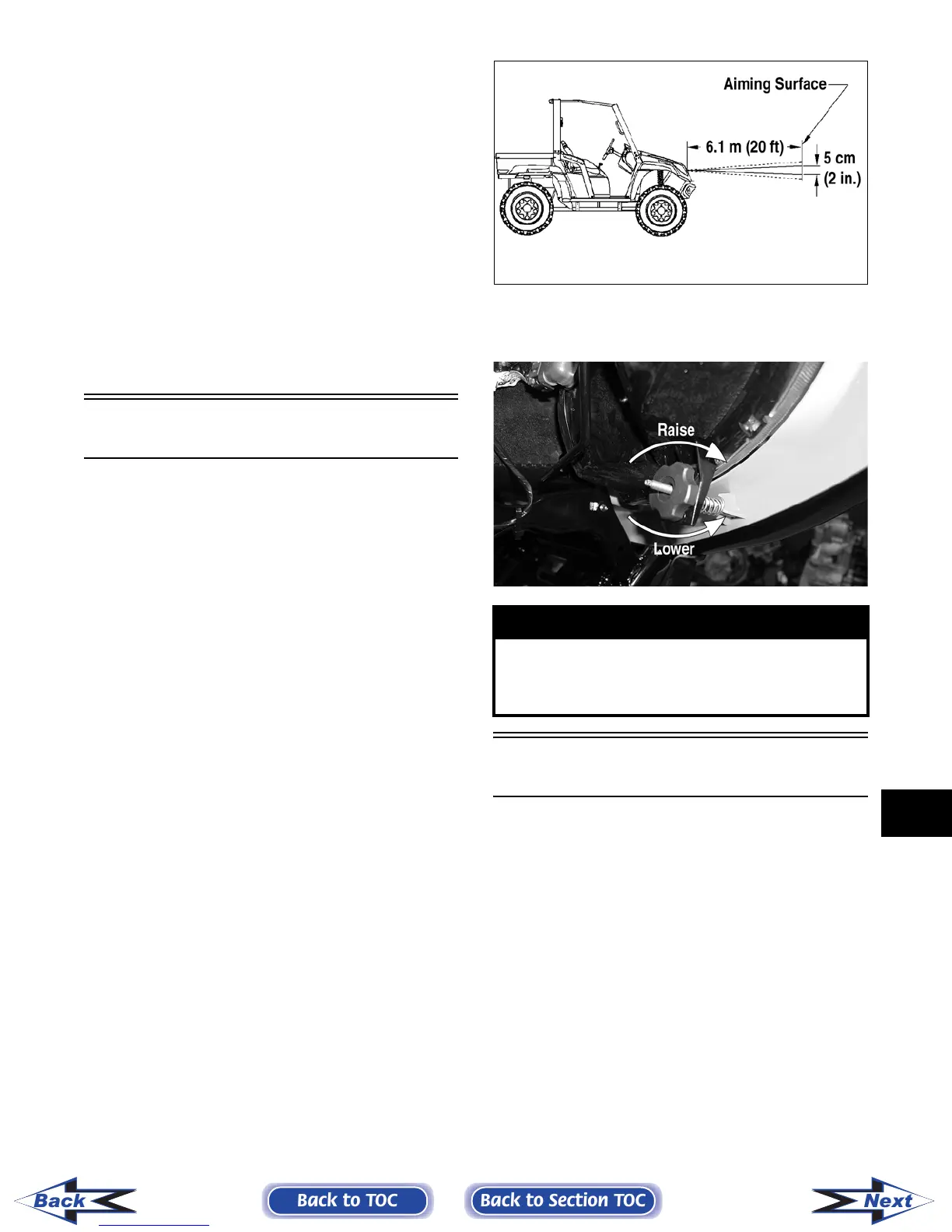

Adjusting Headlights
The headlights can be adjusted vertically. The geo-
metric center of the HIGH beam light zone is to be
used for vertical aiming.
1. Position the vehicle on a level floor so the head-
lights are approximately 6.1 m (20 ft) from an
aiming surface (wall or similar aiming surface).
NOTE: There should be an average operating
load on the vehicle when adjusting the headlight
aim.
2. Measure the distance from the floor to the
mid-point of each headlight.
3. Using the measurements obtained in step 2,
make horizontal marks on the aiming surface.
4. Make vertical marks which intersect the hori-
zontal marks on the aiming surface directly in
front of the headlights.
5. Switch on the lights. Make sure the HIGH beam
is on. DO NOT USE LOW BEAM.
6. Observe each headlight beam aim. Proper aim is
when the most intense beam is centered on the
vertical mark 5 cm (2 in.) below the horizontal
mark on the aiming surface.
0740-647
7. Turn the adjustment knob counterclockwise to
lower the beam and clockwise to raise the beam.
CD714A
Taillight Assembly
REMOVING
1. Remove two torx-head screws securing the tail-
light assembly to the rear canopy tube; then
rotate the taillight assembly left or right to allow
the connector to clear the access opening.
! WARNING
Do not operate the vehicle unless the headlight
beam is adjusted properly. An incorrectly adjusted
beam will not provide the operator the optimum
amount of light.
Back to TOC
Back to Section TOC
Next
Back
