7-7
7
9. Secure the boot guard to the lower A-arm with
the two cap screws. Tighten securely.
10. Install the wheel and tighten to specifications.
11. Remove the vehicle from the support stand.

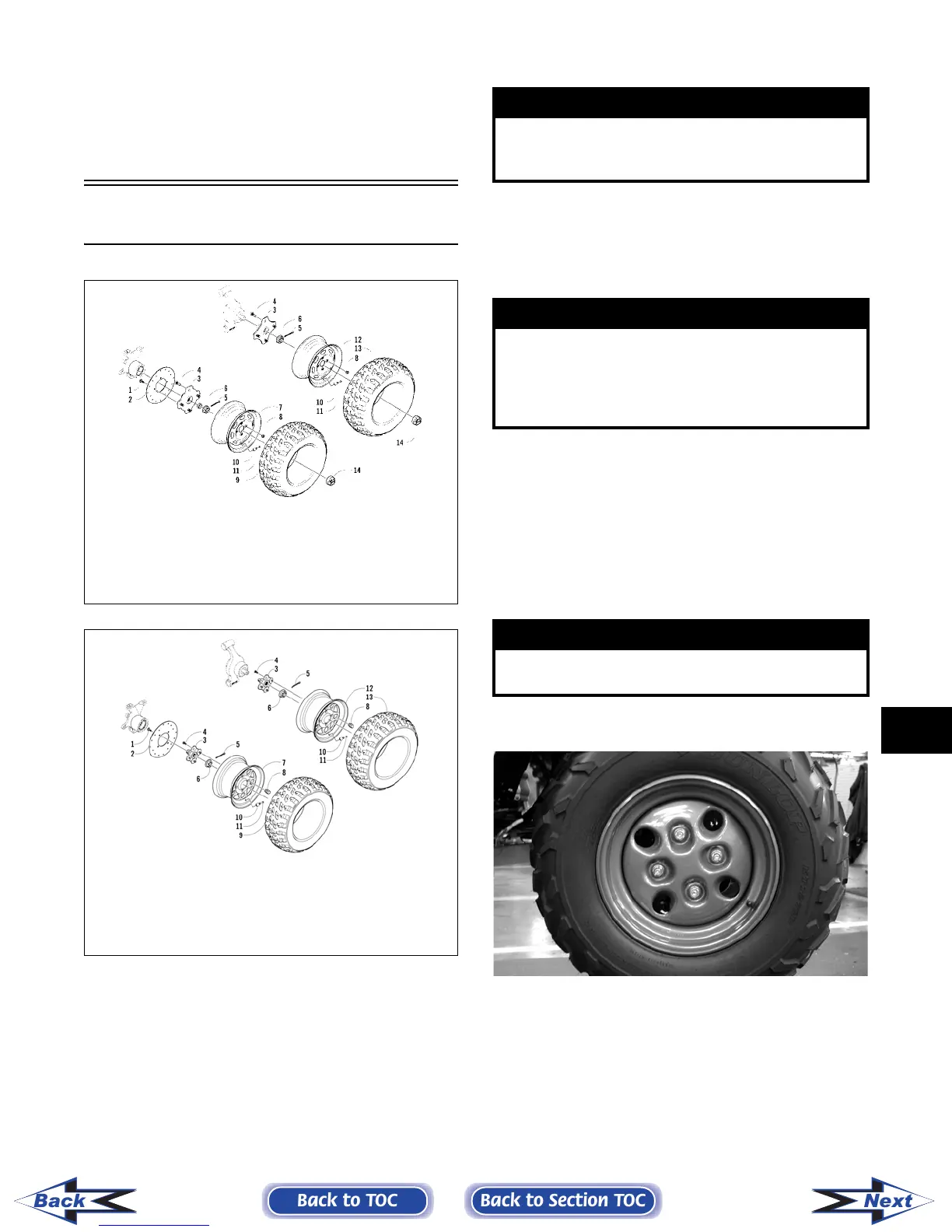

Wheels and Tires
0741-724
0740-489
TIRE SIZE
The Prowler/XT models are equipped with
low-pressure tubeless tires of the size and type listed
(see Section 1). Do not under any circumstances
substitute tires of a different type or size.
TIRE INFLATION PRESSURE
Front and rear tire inflation pressure should be 0.70
kg/cm² (10 psi).
REMOVING
1. Secure the vehicle on a support stand to elevate
the wheels.
2. Remove the wheels.
CD006
CLEANING AND INSPECTING
NOTE: Whenever a part is worn excessively,
cracked, or damaged in any way, replacement is
necessary.
1. Clean the wheels and hubs with parts-cleaning
solvent.
KEY:
1. Machine Screw
2. Brake Disc
3. Wheel Hub
4. Hub Stud
5. Cotter Pin
6. Castle Nut
7. Wheel
8. Mounting Nut
9. Tire - Front
10. Valve Stem
11. Valve Stem Cap
12. Wheel
13. Tire - Rear
14. Wheel Cap
Prowler
KEY
1. Machine Screw
2. Brake Disc
3. Wheel Hub
4. Hub Stud
5. Cotter Pin
6. Castle Nut
7. Wheel
8. Mounting Nut
9. Tire - Front
10. Valve Stem
11. Valve Stem Cap
12. Wheel
13. Tire - Rear
XT
! WARNING
Use only Arctic Cat approved tires when replacing
tires. Failure to do so could result in unstable vehi-
cle operation.
! WARNING
Do not mix tire tread patterns. Use the same pattern
type on front and rear. Failure to heed warning could
cause poor handling qualities of the vehicle and
could cause excessive drive train damage not cov-
ered by warranty.
! WARNING
Make sure the vehicle is solidly supported on the
support stand to avoid injury.
