6-4
7. Secure the wiring harness to the frame with a
nylon cable tie; then install the inner fender
panel.

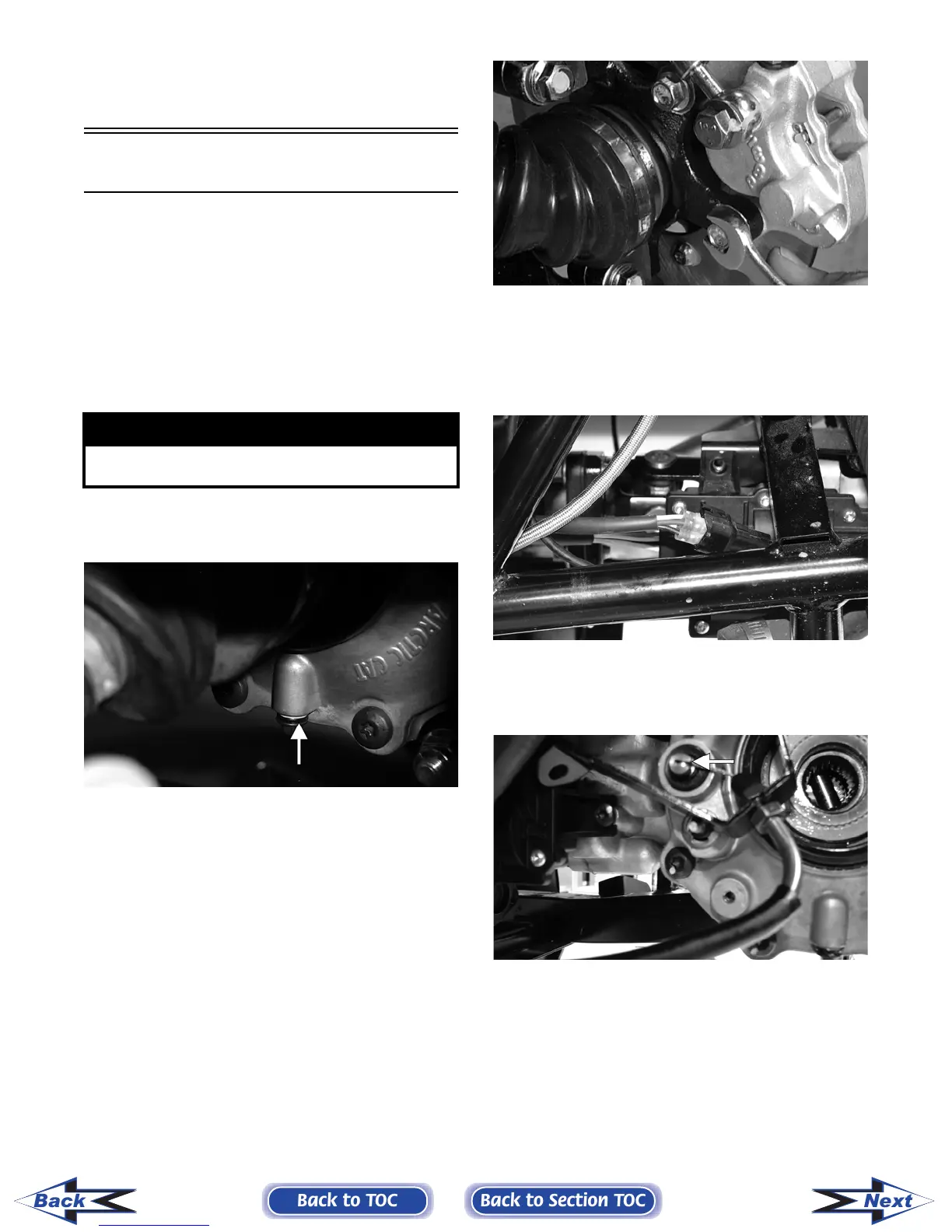

Front Differential
REMOVING
1. Remove the belly panel; then place the vehicle
on jack stands adjusted high enough to allow
working from the underside of the vehicle.
NOTE: The jack stands should be placed under
the main frame to avoid contact with front suspen-
sion components.
2. Remove the drain plug and drain the gear lubri-
cant into a drain pan; then install the plug.
PR022A
3. Remove the front wheels.
4. Set the parking brake; then turn the ignition
switch to the ON position and select 4WD on
the 2WD/4WD selector switch.
5. Remove the cotter pin securing the hex nut; then
remove the hex nut.
6. Release the parking brake.
NOTE: It is not necessary to remove the brake
hoses from the calipers for this procedure.
7. Remove the two brake calipers. Account for the
four cap screws; then remove the hubs.
AF894D
8. Disconnect the front drive actuator power con-
nector from the main harness; then on the XT,
disconnect the differential lock indicator con-
nector from the differential lock switch located
on the right-side of the differential.
PR191
9. On the XT, remove two cap screws securing the
differential lock cable support; then disconnect
the differential lock cable at the differential.
PR194A
! WARNING
Make sure the vehicle is solidly supported on the
jack stands to avoid injury.
