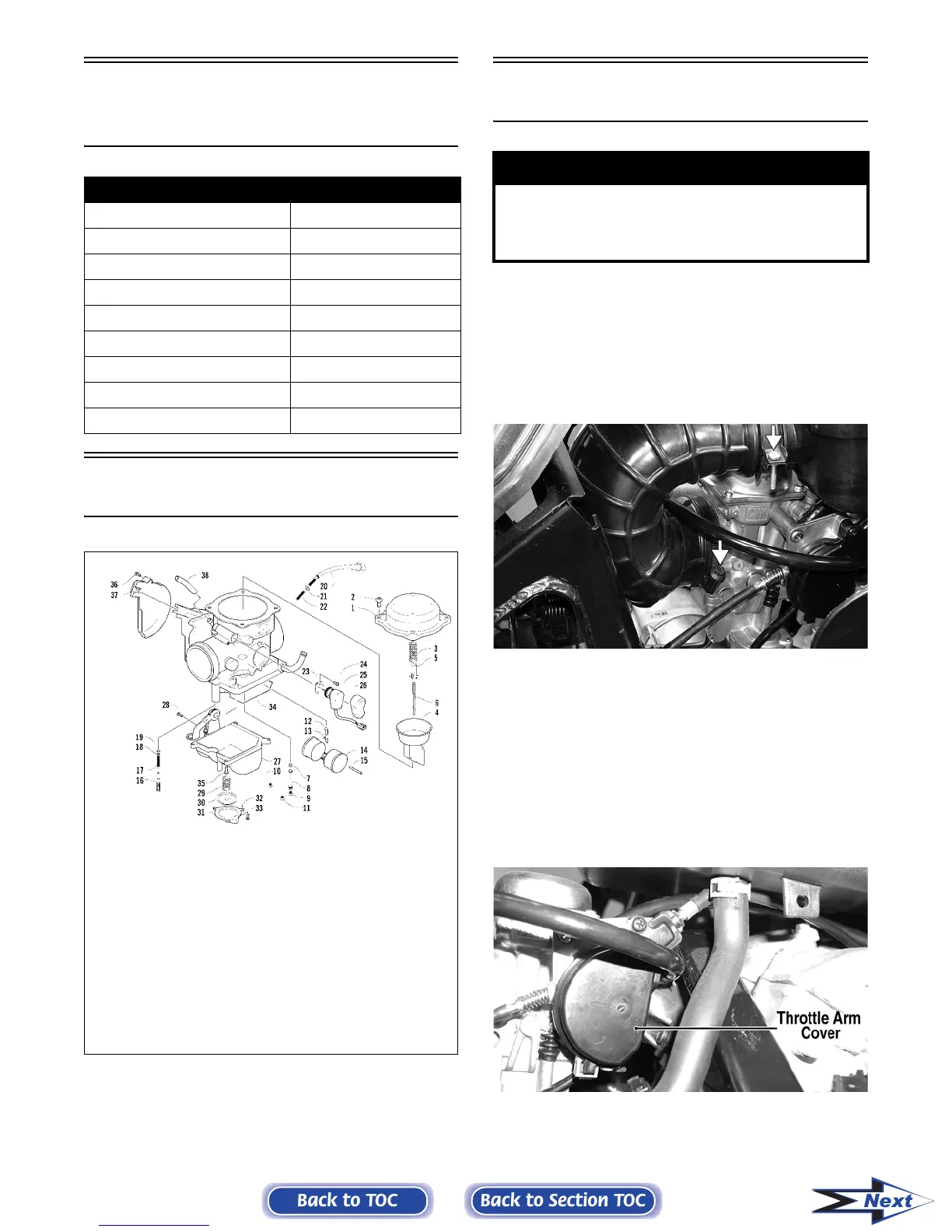

4-2
Carburetor
Specifications
Carburetor Schematic
0741-115
Carburetor
REMOVING
1. Remove the seats and center console; then
remove the left-side seat-base.
2. Loosen the clamps on the inlet boot; then
remove the boot from the left-side.
PR160A
3. Loosen the clamp securing the intake boot to the
carburetor; then separate the carburetor from the
boot.
4. Remove the gas hose and carburetor float cham-
ber vent hose.
5. Remove the throttle arm cover; then loosen the
outer jam nut on the throttle cable and discon-
nect the throttle cable from the carburetor.
PR154A
PROWLER/XT
Ty p e Ke ih in C V K3 6
Main Jet 132
Slow Jet 40
Pilot Screw Setting (turns) 1 1/4
Needle Jet 6.0/4.0
Jet Needle Fixed
Idle RPM 1250-1350
Starter Jet 85
Float Arm Height 17 mm (0.7 in.)
KEY
1. Cover
2. Screw
3. Spring
4. Vacuum Piston
5. Spring Seat
6. Jet Needle
7. Needle Jet
8. Jet Holder
9. Main Jet
10. Slow Jet
11. Starter Jet
12. Float Valve
13. Clip
14. Float Set
15. Float Pin
16. Pilot Screw
17. Spring
18. Washer
19. O-Ring
20. Idle Adjust
Screw
21. Washer
22. Spring
23. Plate
24. Screw
25. Electric Choke
26. Choke Cover
27. Float Chamber
Assy
28. Screw
29. Spring
30. Diaphragm
Assy
31. Pump Housing
32. U-Ring
33. Screw
34. O-Ring
35. Screw
36. Screw
37. Cover
38. Vent Hose
! WARNING
Whenever any maintenance or inspection is per-
formed on the fuel system during which there may
be fuel leakage, there should be no welding, smok-
ing, open flames, etc., in the area.
Back to TOC
Back to Section TOC
Next
