2-11
2
737-651A
4. After all the lubricant has been drained, install
the drain plugs and tighten to specifications (see
Section 10).
5. Pour the appropriate amount of recommended
lubricant into the fill/level hole.
6. Install the fill/level plugs.
NOTE: If the differential/rear drive lubricant is
contaminated with water, inspect the drain plug,
fill/level plug, and/or bladder.
Tires
TIRE SIZES
The Prowler/XT models are equipped with
low-pressure tubeless tires of the size and type listed
(see Section 1). Do not under any circumstances
substitute tires of a different type or size.
TIRE INFLATION PRESSURE
Front and rear tire inflation pressure should be 0.70
kg-cm² (10 psi).
A low-pressure gauge is provided in the tool kit to
measure the air pressure in the tires. Check the air
pressure in all tires before each use of the vehicle.
Steering Components
The following steering components should be
inspected periodically to ensure safe and proper oper-
ation.
A. Steering wheel secure.
B. Steering has equal and complete full-left and
full-right capability.
C. Steering sector mounting bolts tight.
D. Ball joints not worn, cracked, or damaged.
E. Tie rods not bent or cracked.
F. Knuckles not worn, cracked, or damaged.
G. Cotter pins not damaged or missing.
Driveshaft/Coupling
The following drive system components should be
inspected periodically to ensure proper operation.
A. Spline lateral movement (slop).
B. Coupling cracked, damaged, or worn.
C. Universal joints worn or missing bearings.
Suspension/Shock
Absorbers/Bushings
The following suspension system components
should be inspected periodically to ensure proper
operation.
A. Shock absorber rods bent, pitted, or damaged.
B. Rubber damper cracked, broken, or missing.
C. Shock absorber body damaged, punctured, or
leaking.
D. Shock absorber eyelets broken, bent, or
cracked.
E. Shock absorber eyelet bushings worn, deteri-
orated, cracked, or missing.
F. Shock absorber spring broken or sagging.
G. Sway bar mountings tight and bushings
secure.
! WARNING
Always use the size and type of tires specified.
Always maintain proper tire inflation pressure.

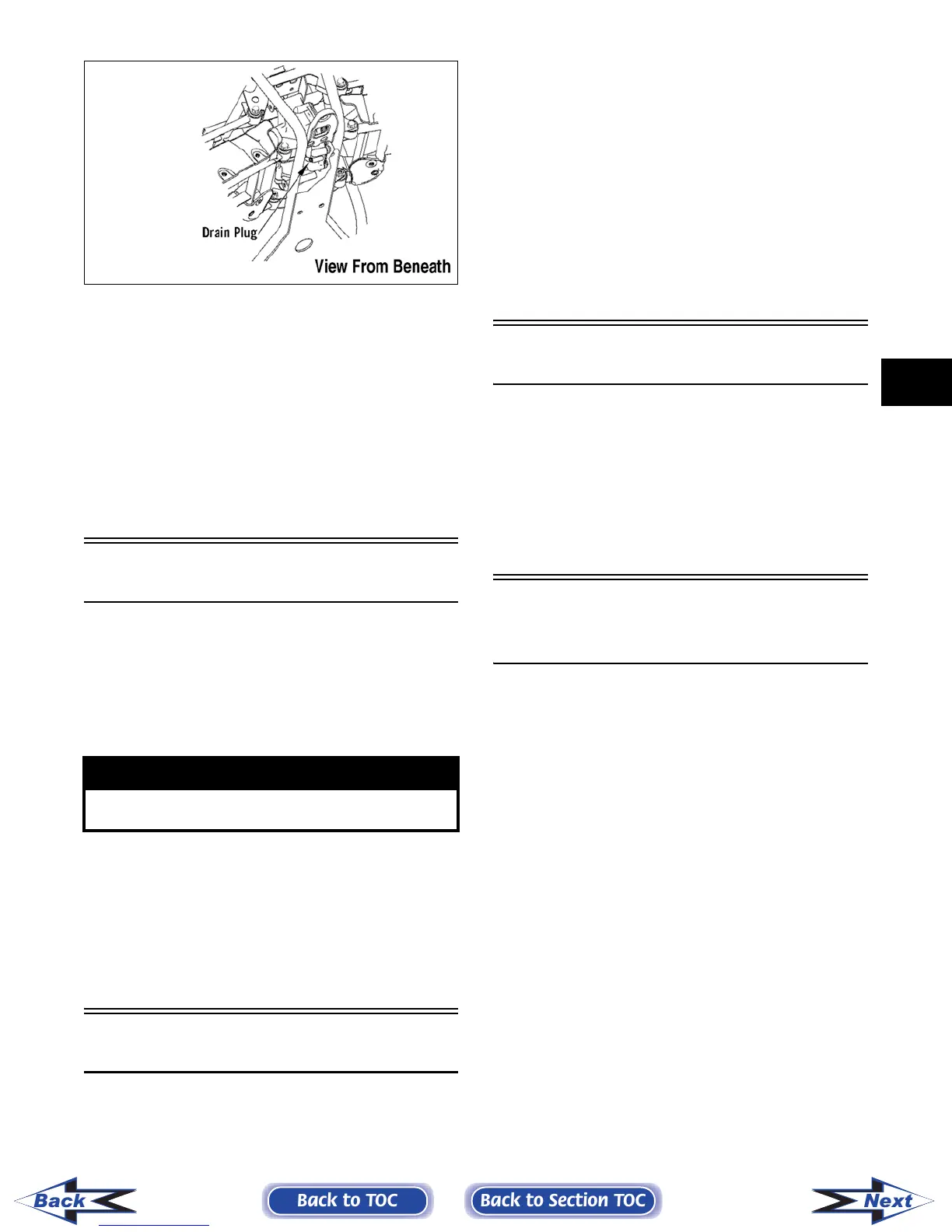

Rear Drive
