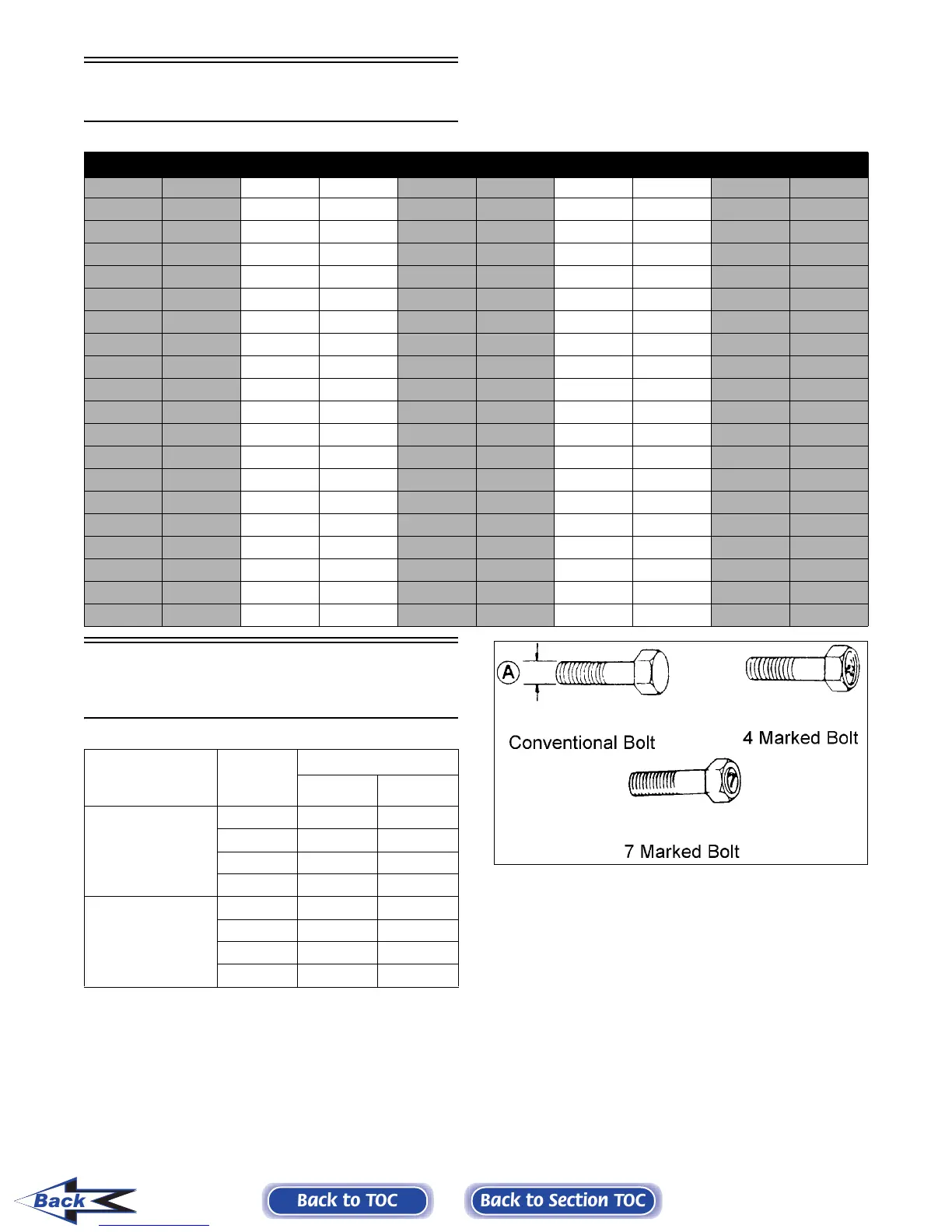

Arctic Cat 2007 - Tightening Torque

10-4
Torque Conversions
Tightening Torque
(General Bolts)
ft-lb kg-m ft-lb kg-m ft-lb kg-m ft-lb kg-m ft-lb kg-m
1 0.1212.941 5.7 61 8.4 81 11.2
2 0.3223.042 5.8 62 8.6 82 11.3
3 0.4233.243 5.8 63 8.7 83 11.5
4 0.6243.344 6.1 64 8.9 84 11.6
5 0.7253.545 6.2 65 9.0 85 11.8
6 0.8263.646 6.4 66 9.1 86 11.9
7 1.0273.747 6.5 67 9.3 87 12.0
8 1.1283.948 6.6 68 9.4 88 12.2
9 1.2294.049 6.8 69 9.5 89 12.3
10 1.4304.250 6.9 70 9.7 90 12.5
11 1.5314.351 7.1 71 9.8 91 12.6
12 1.7324.452 7.2 72 10.0 92 12.8
13 1.8334.653 7.3 73 10.1 93 12.9
14 1.9344.754 7.5 74 10.2 94 13.0
15 2.1354.855 7.6 75 10.4 95 13.1
16 2.2365.056 7.7 76 10.5 96 13.3
17 2.4375.157 7.9 77 10.7 97 13.4
18 2.5385.358 8.0 78 10.8 98 13.6
19 2.6395.459 8.2 79 10.9 99 13.7
20 2.8405.560 8.3 80 11.1 100 13.8
Type of Bolt
Thread
Diameter
A (mm)
Tightening Torque
kg-m ft-lb
(Conventional or
4 Marked Bolt)
5 0.2-0.4 1.5-3.0
6 0.4-0.7 3.0-5.0
8 1.0-1.6 7.0-11.5
10 2.2-3.5 16.0-25.5
(7 Marked Bolt)
5 0.3-0.6 2.0-4.5
6 0.8-1.2 6.0-8.5
8 1.8-2.8 13.0-20.0
10 4.0-6.0 29.0-43.5
