4-10

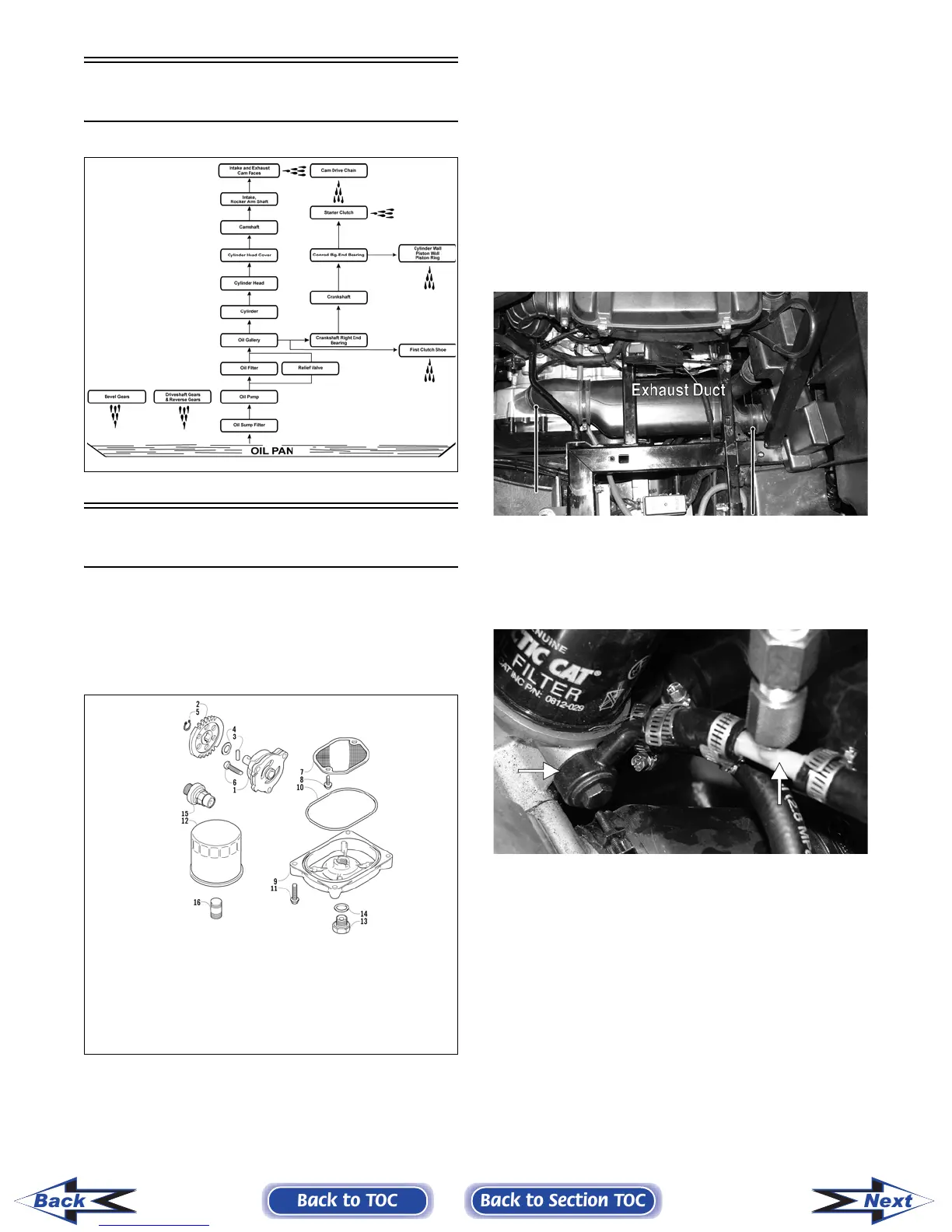

Oil Flow Chart
ATV-1102
Oil Filter/Oil Pump
NOTE: Whenever internal engine components
wear excessively or break and whenever oil is con-
taminated, the oil pump should be disassembled,
cleaned and inspected, and serviced as necessary.
0738-289
TESTING OIL PUMP PRESSURE
NOTE: The engine must be warmed up to the
specified temperature for this test.
1. Remove the seats and center console; then
remove the left-side seat-base.
2. Tilt the cargo box back.
3. Loosen the clamps securing the V-belt housing
exhaust duct; then remove the duct and set aside.
PR266A
4. Disconnect the upper oil cooler hose; then using
an appropriate T-fitting and adapter, connect the
Oil Pressure Test Kit (p/n 0644-495) into the oil
cooler circuit.
PR265A
NOTE: Some oil seepage may occur when
installing the oil pressure gauge. Wipe up oil resi-
due with a cloth.
5. Set the parking brake and start the engine.
Allow the engine to warm up to operating tem-
perature (with cooling fan cycling).
6. Set the speedometer/tachometer to RPM (XT) or
connect a suitable tachometer (Prowler). With
the engine running at 2500 RPM, the pressure
gauge must show 1.40-2.11 kg/cm² (20-30 psi).
7. Reconnect the oil cooler hose and tighten the
hose clamp securely; then install the V-belt
exhaust duct and tighten the clamps securely.
KEY
1. Oil Pump
2. Driven Gear
3. Pin
4. Washer
5. Circlip
6. Cap Screw
7. Strainer
8. Cap Screw
9. Cap
10. O-Ring
11. Cap Screw
12. Filter
13. Drain Plug
14. Gasket
15. Oil Relief Valve
Assy
16. Oil Filter Union
