2. Place bushings and sleeves (where appropriate)
into shock eyelet; then install shock with two
cap screws and nuts. Tighten all nuts to specifi-
cations.
NOTE: The rear shock absorber-to-lower A-arm
torque factor is 2.8 kg-m (20 ft-lb).
3. Remove the vehicle from the support stand.

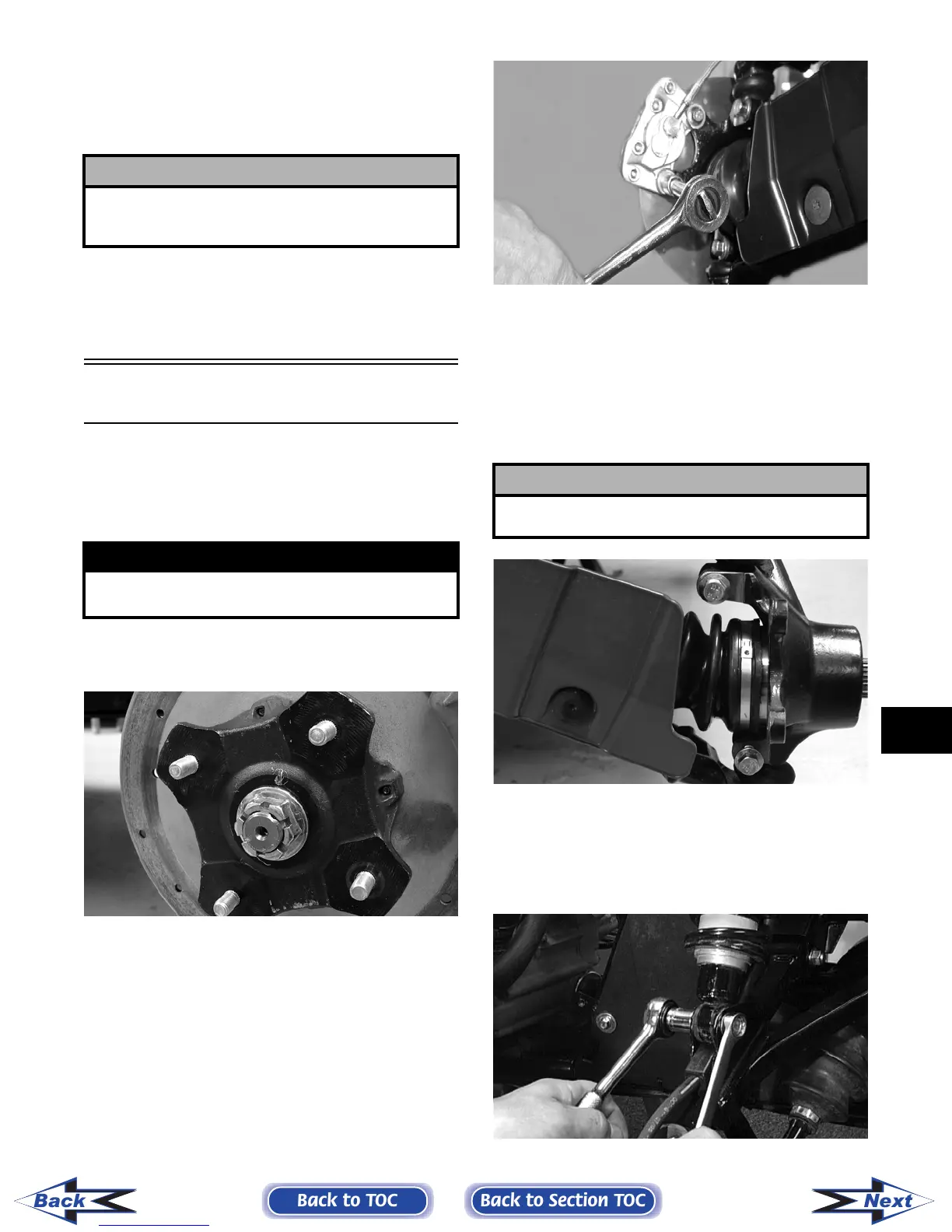

Front A-Arms
REMOVING
1. Secure the vehicle on a support stand to elevate
the front wheels; then remove the wheels.
2. Remove the cotter pin from the nut. Discard the
cotter pin.
PR257
3. Remove the nut securing the hub.
4. Remove the brake caliper. Account for two cap
screws.
CD007
5. Remove the hub assembly.
6. Remove the cotter pin and slotted nut securing
the tie rod end to the knuckle; then remove the
tie rod end from the knuckle.
7. Remove the cap screws securing the ball joints
to the knuckle.
PR193
8. Tap the ball joints out of the knuckle; then
remove the knuckle.
9. Remove the lower shock absorber eyelet from
the upper A-arm.
AF626D
! CAUTION
Do not tighten the nuts beyond the 4.8 kg-m (35 ft-lb)
specification or the shock eyelet or mount WILL be
damaged.
! WARNING
Make sure the vehicle is solidly supported on the
support stand to avoid injury.
! CAUTION
Support the knuckle when removing the cap screws
or damage to the threads will occur.
