Arctic Cat 2007 - Servicing Left-Side Components; Inspecting Centrifugal Clutch Shoe

3-28
CC003D

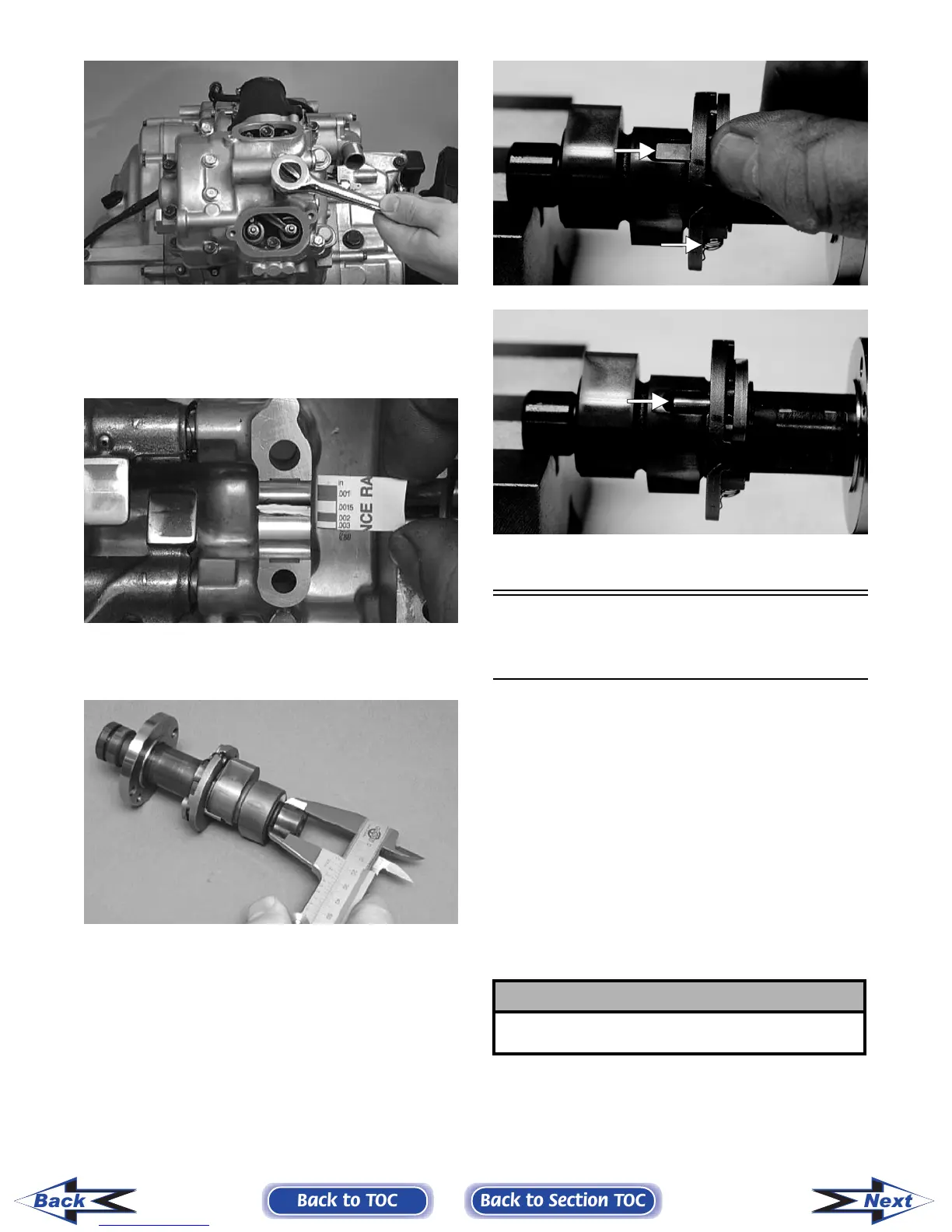

5. Match the width of the plasti-gauge with the
chart found on the plasti-gauge packaging to
determine camshaft to cylinder head and valve
cover clearance.
CC145D
6. If clearance is excessive, measure the journals of
the camshaft.
CC287D
 NOTE: If the journals are worn, replace the cam-
shaft; then measure the clearance again. If it is still
out of tolerance, replace the cylinder head.
Inspecting Camshaft Spring/Drive
Pin
1. Inspect the spring and drive pin for damage.
CF061A
CF060A
2. If damaged, the camshaft must be replaced.
Servicing Left-Side
Components
 NOTE: Whenever a part is worn excessively,
cracked, damaged in any way, or out of tolerance,
replacement is necessary.
INSPECTING CENTRIFUGAL
CLUTCH SHOE
1. Inspect the clutch shoes for uneven wear, chips,
cracks, or discoloration. If any shoe is damaged,
replace the complete set.
2. Inspect the clutch shoes for wear or damage. If
any shoe is worn to the bottom of the groove,
replace the complete set.
! CAUTION
Always replace the clutch shoes as a complete set
or severe imbalance could occur.
