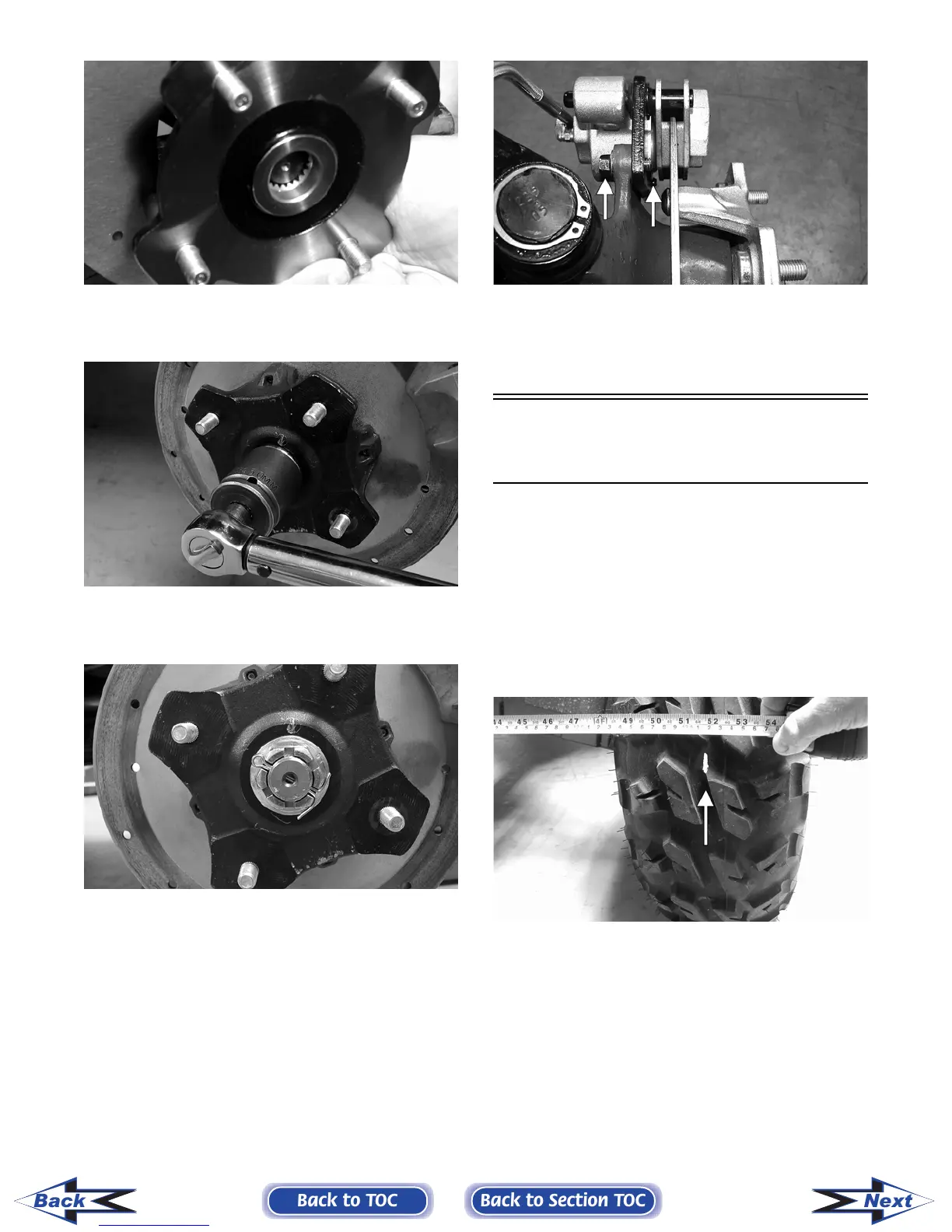

6. Secure the hub assembly with the nut. Tighten to
specifications.
PR256
7. Install a new cotter pin and secure by spreading
as shown.
PR260
NOTE: If the hole in the axle shaft does not align
with the slots in the castle nut, tighten the nut until
the hole and slots align.
8. Secure the brake caliper to the knuckle with the
two cap screws. Tighten to specifications.
PR377B
9. Install the wheel; then using a crisscross pattern,
tighten to specifications.
10. Remove the vehicle from the support stand.
Checking/Adjusting
Front Wheel Alignment
NOTE: All measurements and adjustments must
be made with the vehicle unloaded.
Mark the center-line of the front tires at the front
and rear of the tire; then using a tape measure, mea-
sure and record the distance between the marks at
the front and rear. The front measurement should be
6-12 mm (1/4-1/2 in.) greater than the rear measure-
ment (toe-out).
PR087A
To adjust the wheel alignment, use the following
procedure.
1. Center the steering wheel; then using an
open-end wrench to hold the tie rod ends, loosen
the right-side and left-side jam nuts.
