4-13
4
Liquid Cooling System
The cooling system should be inspected daily for
leakage and damage. Also, the coolant level should
be checked periodically.
When filling the cooling system, use premixed Arc-
tic Cat Antifreeze. While the cooling system is
being filled, air pockets may develop; therefore, run
the engine for five minutes after the initial fill, shut
the engine off, and then fill the cooling system to the
bottom of the stand pipe in the radiator neck.
Radiator/Oil Cooler
REMOVING

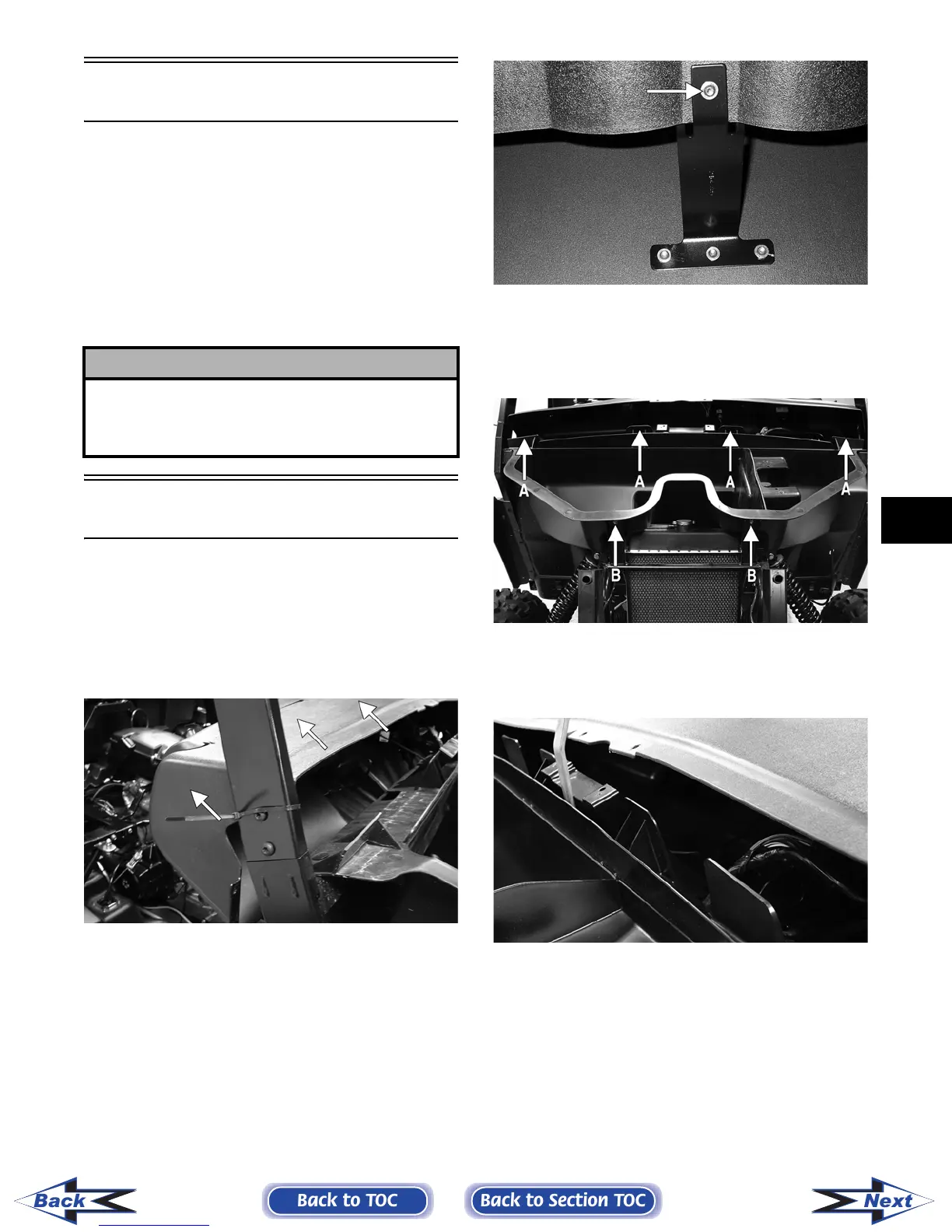

1. Remove six torx-head screws securing the dash
assembly to the frame and one cap screw and
nut from the center support. Slide the dash rear-
ward approximately four inches.
PR181A
PR475A
2. Remove four torx-head screws (A) securing the
under-hood storage box to the frame; then
remove two cap screws with nuts (B) at the front
of the storage box.
PR182A
3. While lifting up on the front of the storage box,
pry the rear center clear of the center dash
mount and remove the storage box.
PR186
4. Drain the coolant into a suitable container; then
disconnect the cooling fan wire connector from
the main harness.
! CAUTION
After operating the vehicle for the initial 5-10 min-
utes, stop the engine, allow the engine to cool down,
and check the coolant level. Add coolant as neces-
sary.
