4-14
PR183A

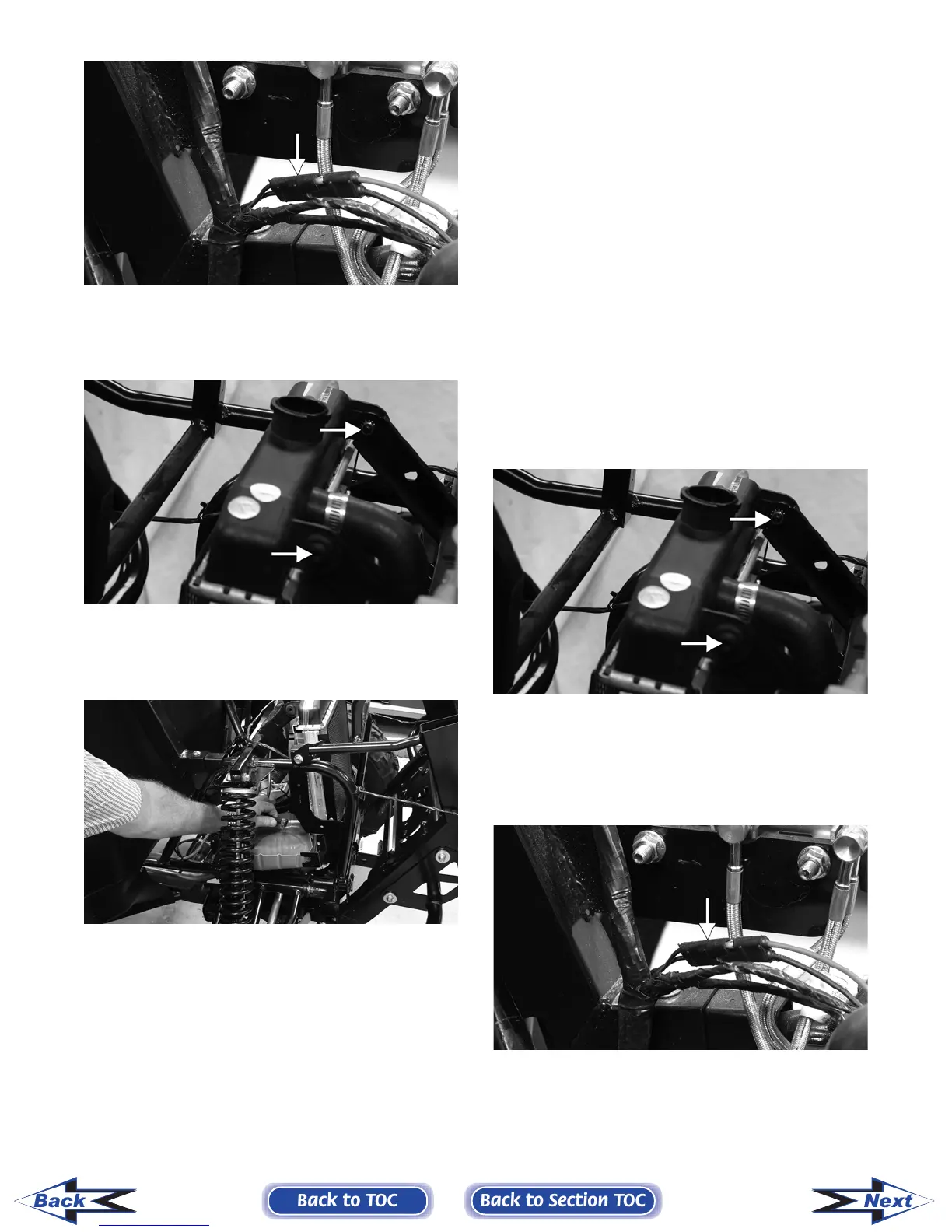

5. Remove the two shoulder bolts and nuts secur-
ing the radiator to the frame; then disconnect the
upper and lower coolant hoses.
PR184A
6. Place a shallow container under the right-side
oil cooler hose; then remove the hose from the
oil cooler.
PR185
7. Allow the oil cooler to drain; then remove the
left-side oil cooler hose.
8. Lift the radiator/oil cooler assembly from the
vehicle. Account for two upper and two lower
rubber mounting grommets.
CLEANING AND INSPECTING
NOTE: Whenever a part is worn excessively,
cracked, or damaged in any way, replacement is
necessary.
1. Flush the radiator with water to remove any con-
taminants.
2. Inspect the radiator for leaks and damage.
3. Inspect all hoses for cracks and deterioration.
4. Inspect all fasteners and grommets for damage
or wear.
INSTALLING
1. Place the radiator/oil cooler into position mak-
ing sure the grommets are correctly installed;
then secure to the mounts with the two shoulder
bolts and nuts. Tighten securely.
PR184A
2. Connect the upper and lower radiator hoses and
the left and right oil cooler hoses to the radia-
tor/oil cooler and secure with the appropriate
hose clamps; then connect the cooling fan con-
nector to the main harness.
PR183A
3. Pour the recommended coolant into the radiator
and secure the radiator cap.
