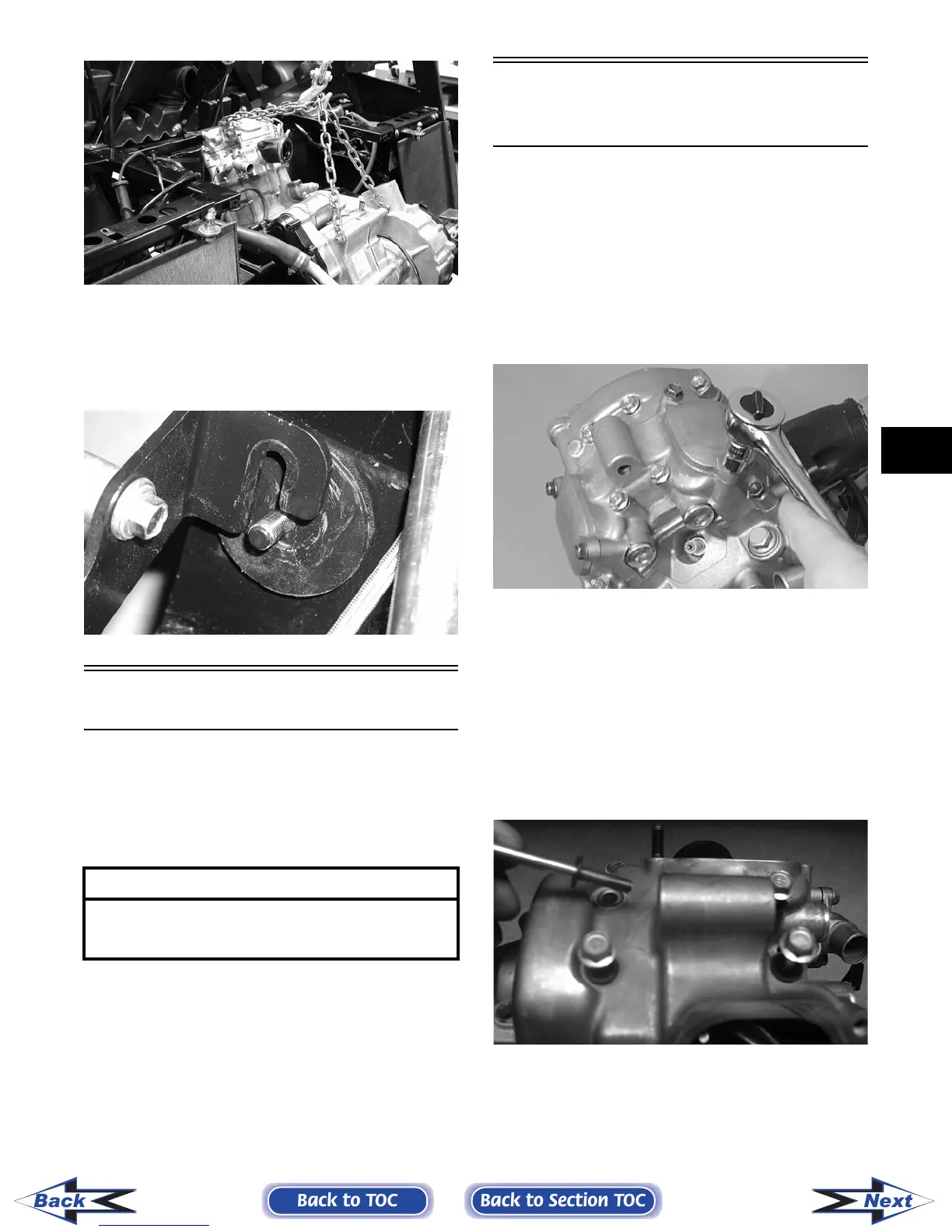

3-7
3
PR114
NOTE: The front engine mounting bracket
should slide free of the engine mounts first; then
the rear engine mounting bracket and two rear
engine mounts will lift free of the frame.
PR146
Top-Side Components
NOTE: For efficiency, it is preferable to remove
and disassemble only those components which
need to be addressed and to service only those
components. The technician should use discretion
and sound judgment.
NOTE: The engine/transmission does not have
to removed from the frame for this procedure.
Removing Top-Side
Components
A. Valve Cover
B. Cylinder Head
NOTE: Remove the spark plug and timing
inspection plug; then using the recoil starter,
rotate the crankshaft to top-dead-center of the
compression stroke.
1. Remove the two tappet covers.
CC001D
NOTE: Keep the mounting hardware with the
covers for assembly purposes or thread them back
into the head to keep them separated.
2. Remove the 12 cap screws securing the valve
cover to the head; account for the four rubber
washers on the top side cap screws. Remove the
valve cover. Account for and note the orienta-
tion of the cylinder head plug. Note the location
of two alignment pins.
CD205
AT THIS POINT
To service any one specific component, only limited
disassembly of components may be necessary. Note
the AT THIS POINT information in each sub-section.
