4-16
Fan
REMOVING
1. Remove the radiator (see Radiator/Oil Cooler in
this section).
2. Remove the fan assembly from the radiator.
INSTALLING
1. Position the fan assembly on the radiator; then
secure with existing hardware.
NOTE: The fan wiring must be in the upper-right
position.
2. Install the radiator (see Radiator/Oil Cooler in
this section).

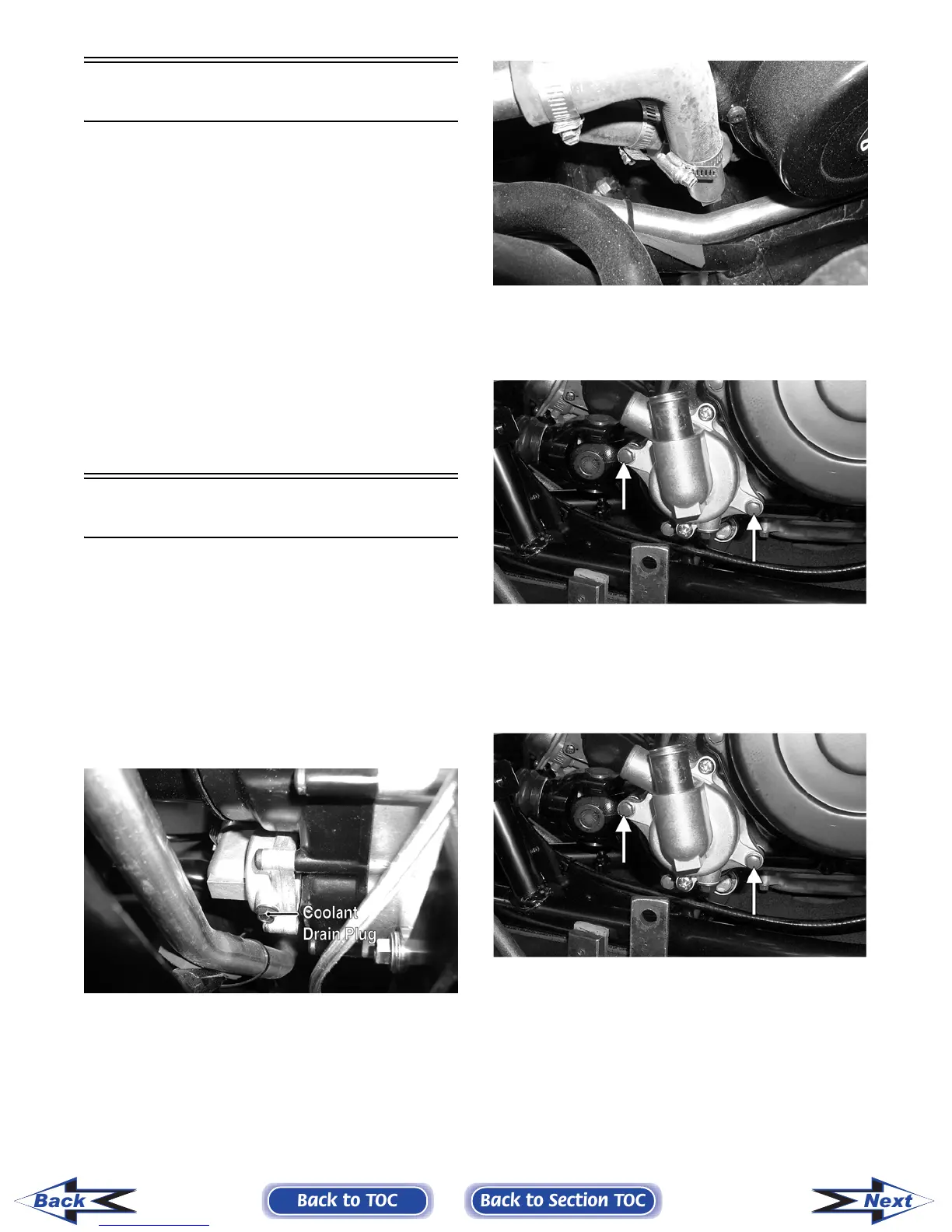

Water Pump
NOTE: The water pump is not a serviceable
component. If the pump is defective or if the
mechanical seal is leaking (coolant dripping from
the discharge hole), the water pump must be
replaced.
REMOVING
1. Remove the radiator cap; then remove the water
pump coolant drain plug and drain the coolant.
PR122A
2. Drain the oil from the engine/transmission.
3. Remove the seats and center console; then
remove the right-side seat-base.
4. Loosen the coolant hose clamps and slide the
clamps away from the hose ends approximately
51 mm (2 in.); then remove both hoses from the
water pump.
PR132
5. Remove the two cap screws securing the water
pump to the engine; then remove the water
pump.
CC786A
INSTALLING
1. Secure the water pump to the engine with the
two cap screws tightened securely.
CC786A
2. Connect the two coolant hoses to the water
pump and secure with the clamps; then install
the water pump coolant drain plug.
