8-12

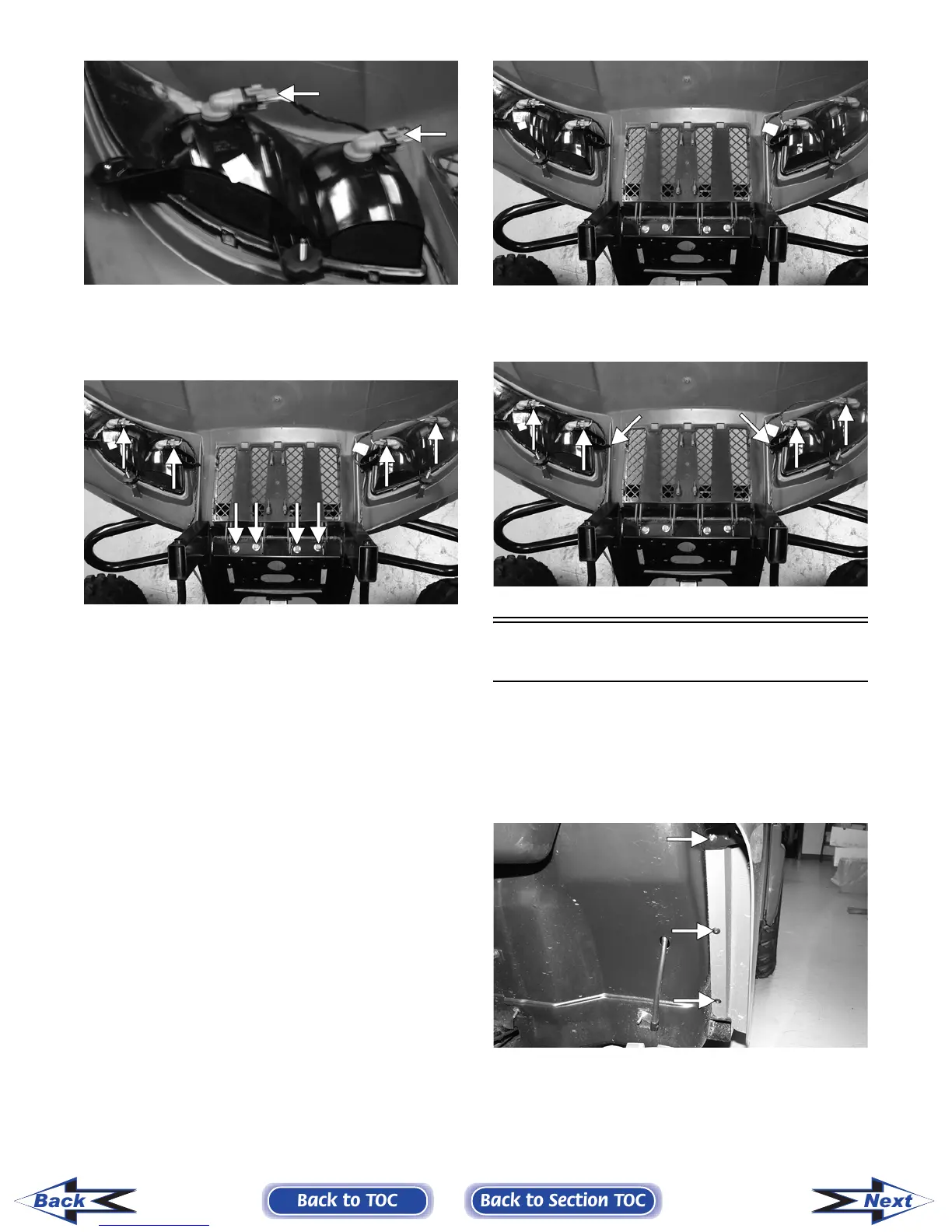

PR328A
2. Loosen but do not remove the four cap screws
and flange nuts securing the hood hinge to the
frame; then lower the hood.
PR332A
3. Finish removing the cap screws and flange nuts
(from step 2); then remove the hood assembly.
CLEANING AND INSPECTING
NOTE: Whenever a part is worn excessively,
cracked, or damaged in any way, replacement is
necessary.
1. Clean all hood components with parts-cleaning
solvent and soap and water.
2. Inspect the hood for cracks and/or loose fasten-
ers.
3. Inspect for any missing decals.
INSTALLING
1. Place the hood into position on the vehicle; then
install the two outside cap screws and flange
nuts. Finger-tighten only at this time.
2. Open the hood; then install the remaining two
cap screws and flange nuts. Tighten all four
securely.
PR332
3. Connect the four headlight connectors; then
secure the wires with two new nylon ties.
PR332B
Fenders
REMOVING
To remove the fenders, remove three torx-head
screws securing each fender to the frame. Account
for a stiffener bracket on the front fenders.
PR311A
INSTALLING
To install the fenders, place the appropriate fender
into position and secure with existing hardware.
