3-8
CD206
CD211A

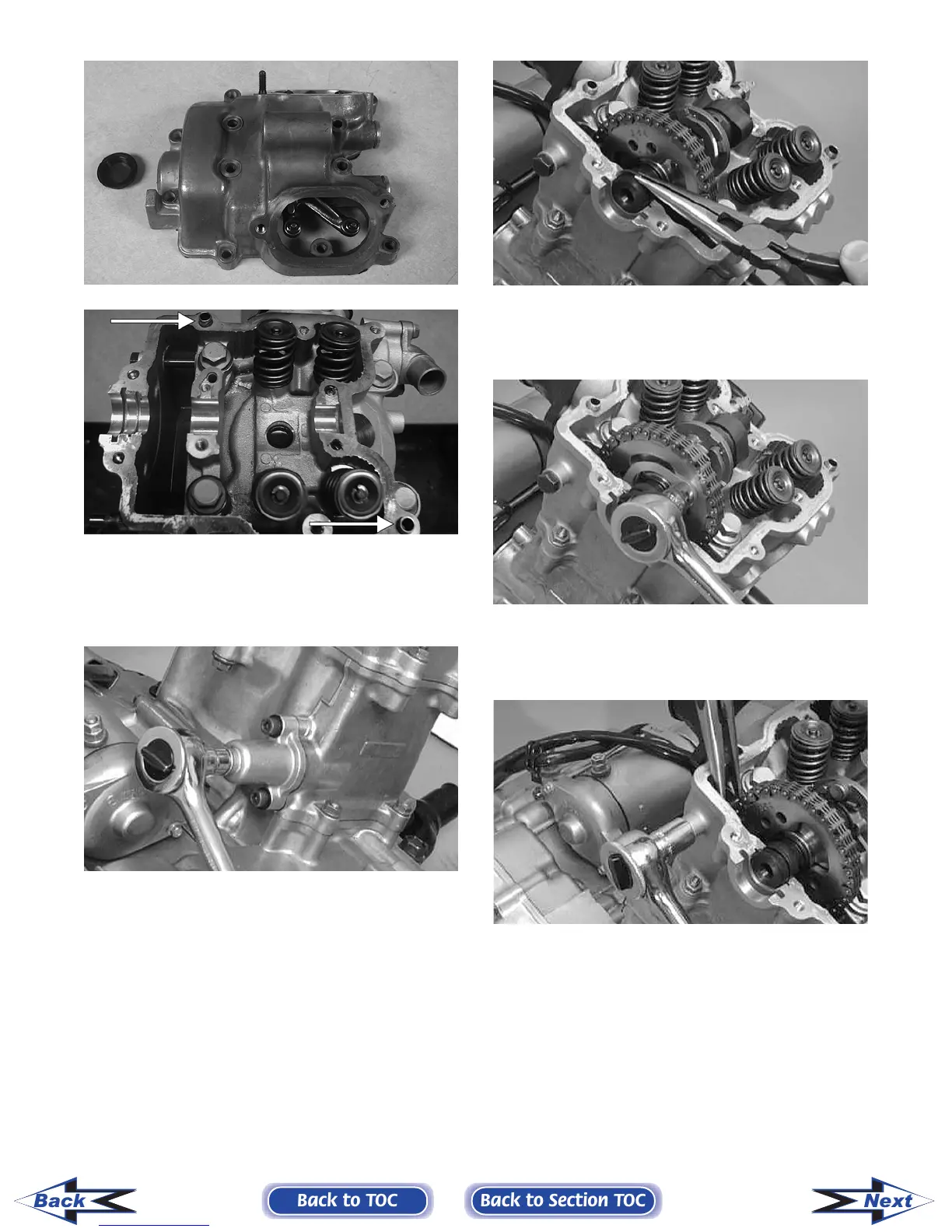

3. Loosen the cap screw on the end of the ten-
sioner; then remove the two Allen-head cap
screws securing the tensioner adjuster assembly
and remove the assembly. Account for a gasket.
CC009D
4. Using an awl, rotate the C-ring in its groove
until it is out of the cylinder head; then remove
the C-ring.
NOTE: Care should be taken not to drop the
C-ring down into the crankcase.
CC012D
5. Bend the washer tabs down and remove the two
cap screws securing the sprocket to the cam-
shaft; then drop the sprocket off the camshaft.
CC013D
6. Remove the cap screw securing the chain ten-
sioner (account for a washer); then remove the
tensioner.
CC014D
7. While holding the chain, slide the sprocket and
camshaft out of the cylinder head.
