NOTE: Loop the chain over the cylinder and
secure it to keep it from falling into the crankcase.

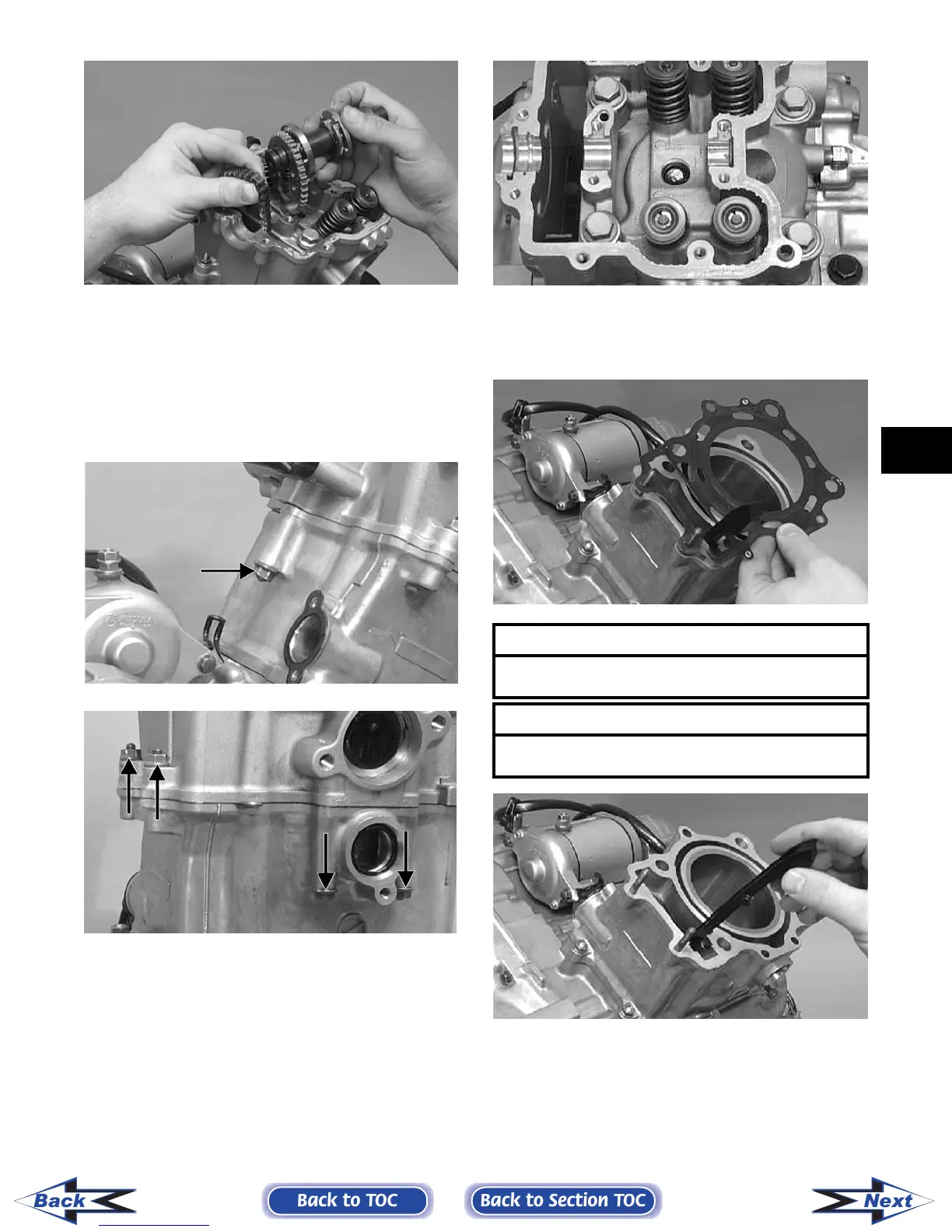

8. Remove the five nuts securing the cylinder head
to the cylinder; then remove the four cylinder
head cap screws with copper washers (note loca-
tion of the different-sized cap screws and nuts).
CC017D
CC018D
CC016D
9. Remove the cylinder head from the cylinder,
remove the gasket, and account for two align-
ment pins; then remove the cam chain guide.
CC020D
CC022D
AT THIS POINT
To service valves and cylinder head, see Servicing
Top-Side Components sub-section.
AT THIS POINT
To inspect cam chain guide, see Servicing Top-Side
Components sub-section.
