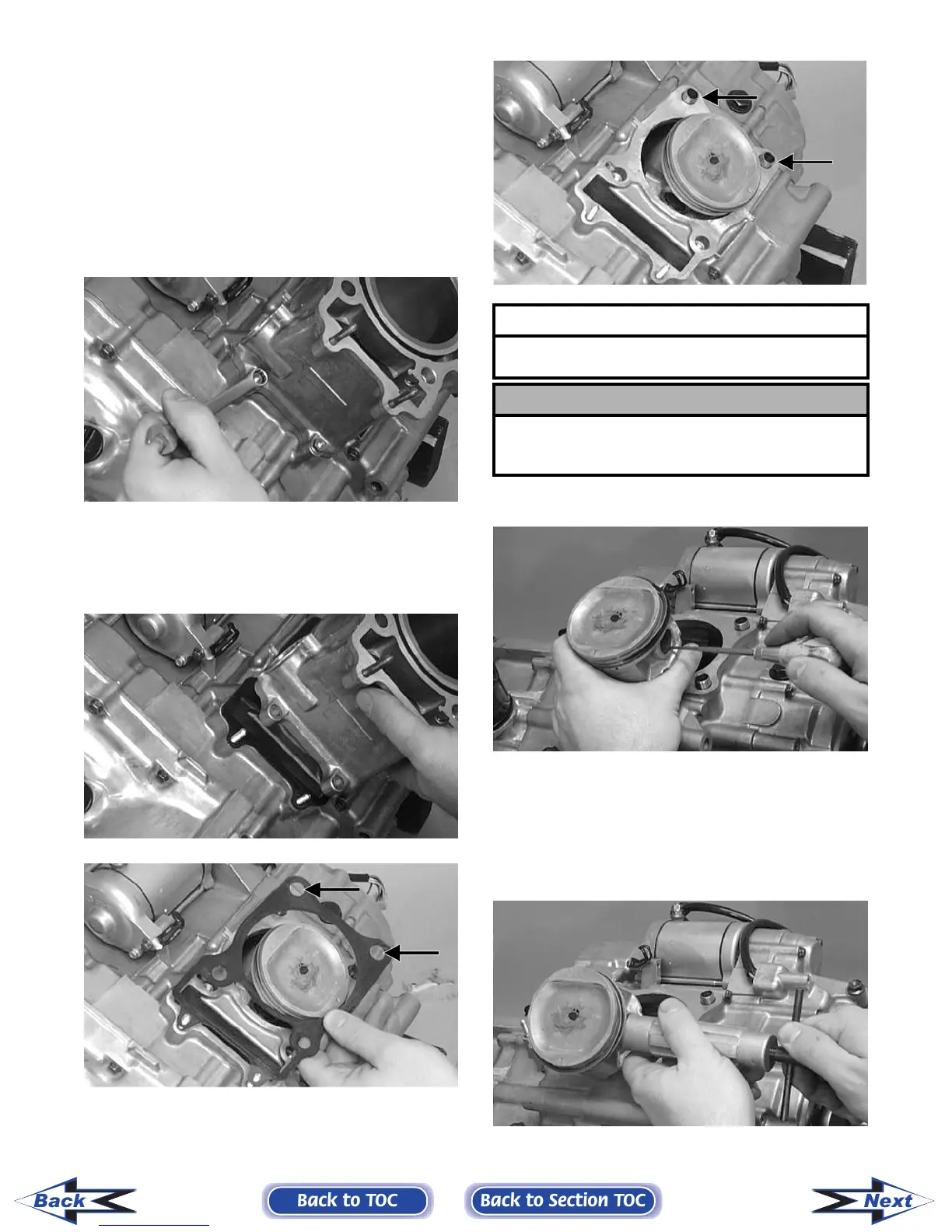

3-10
C. Cylinder
D. Piston
NOTE: Steps 1-9 in the preceding sub-section
must precede this procedure.
10. Loosen the clamp securing the coolant hose to
the union; then detach the hose.
11. Remove the two nuts securing the cylinder to
the crankcase.
CC023D
12. Lift the cylinder off the crankcase taking care
not to allow the piston to drop against the crank-
case. Account for the gasket and two alignment
pins.
CC024D
CC025D
CC026D
13. Using an awl, remove one piston-pin circlip.
CC032D
14. Using the Piston Pin Puller (p/n 0644-328),
remove the piston pin. Account for the oppo-
site-side circlip. Remove the piston.
NOTE: It is advisable to remove the oppo-
site-side circlip prior to using the puller.
CC033D
AT THIS POINT
To service cylinder, see Servicing Top-Side Compo-
nents sub-section.
! CAUTION
When removing the cylinder, be sure to support the
piston to prevent damage to the crankcase and pis-
ton.
