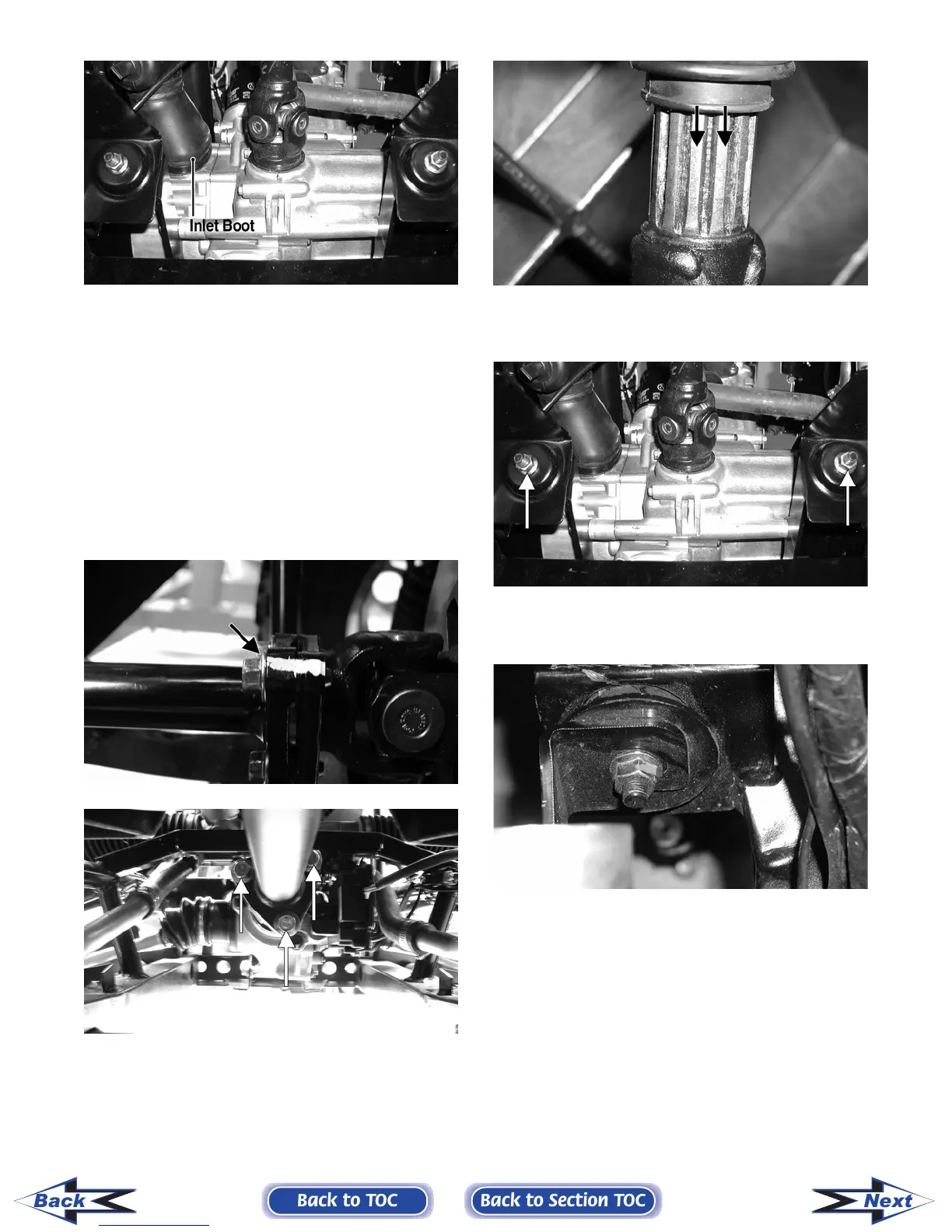

3-6
PR153B
13. Remove the muffler; then remove the exhaust
pipe.
14. Set the parking brake; then from the underside
of the vehicle, mark the flanges of the drive-line
couplers for assembling and remove the cap
screws (three on the front drive coupler and
three on the rear drive coupler) securing the
driveshafts to the drive couplers.
NOTE: Remove the front driveshaft first or the
parking brake will not hold the coupler stationary
and cap screw removing will be more difficult.
PR152A
PR120A
15. Separate the drive coupler flanges; then remove
the driveshafts from the splined slip-joints being
careful not to damage the rubber boots. The
front boot should be removed with the drive-
shaft.
PR148A
16. Remove two flange nuts from the underside of
the rear engine mounts.
PR153A
17. Remove two flange nuts securing the engine
mounting bracket to the front engine mounts.
PR147
18. Attach suitable lifting chains to the engine/trans-
mission; then using an engine hoist, lift the
assembly out of the engine compartment.
