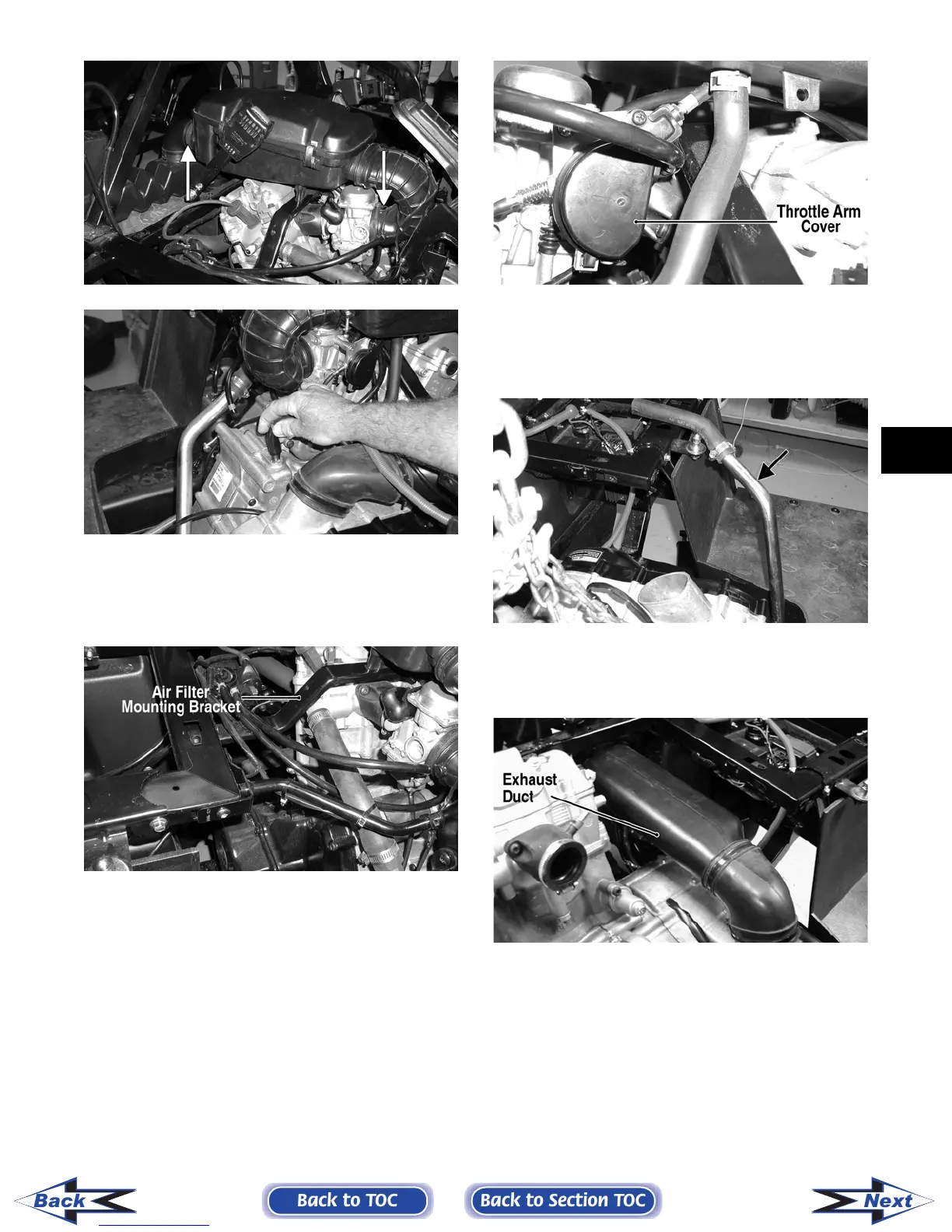

9. Remove four self-tapping screws securing the
air filter mounting bracket to the frame; then
remove the air filter and mounting bracket as an
assembly.
PR140A
10. Remove the throttle arm cover from the carbure-
tor; then disconnect and remove the throttle
cable and the carburetor.
PR154A
11. Remove the coolant hoses from the water pump
and thermostat housings; then position the upper
coolant line to the left-side of the engine com-
partment.
PR150A
12. Remove the exhaust duct from the V-belt hous-
ing; then remove the inlet boot connecting the
inlet duct to the V-belt housing.
PR144B
