3-4
PR155B
PR157A

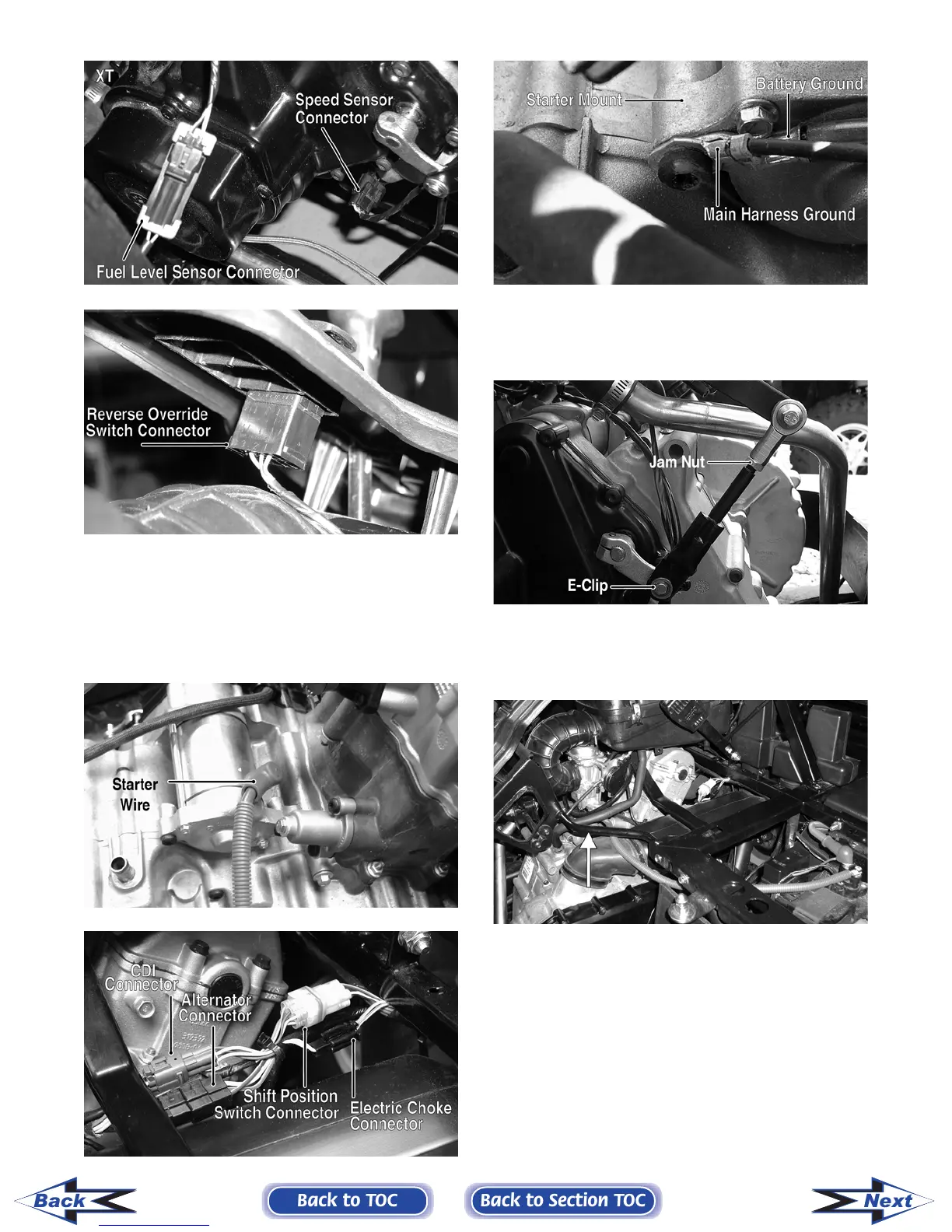

5. From the left-side, disconnect the starter wire,
alternator connector, CDI connector, shift posi-
tion switch connector, and electric choke con-
nector; then remove the cap screw securing the
main harness ground and the battery ground
wires to the starter.
PR145A
PR128A
PR474A
6. Remove the E-clip from the transmission shift
arm; then disconnect the shifter linkage.
Account for a washer and a bushing.
PR461A
7. Remove four machine screws securing the
shifter mount to the frame; then remove the
shifter assembly.
PR123A
8. Loosen the clamp securing the air intake boot to
the carburetor and the clamp securing the air fil-
ter housing to the inlet housing boot; then
remove the crankcase breather hose from the
crankcase.
