4-12
PR271A

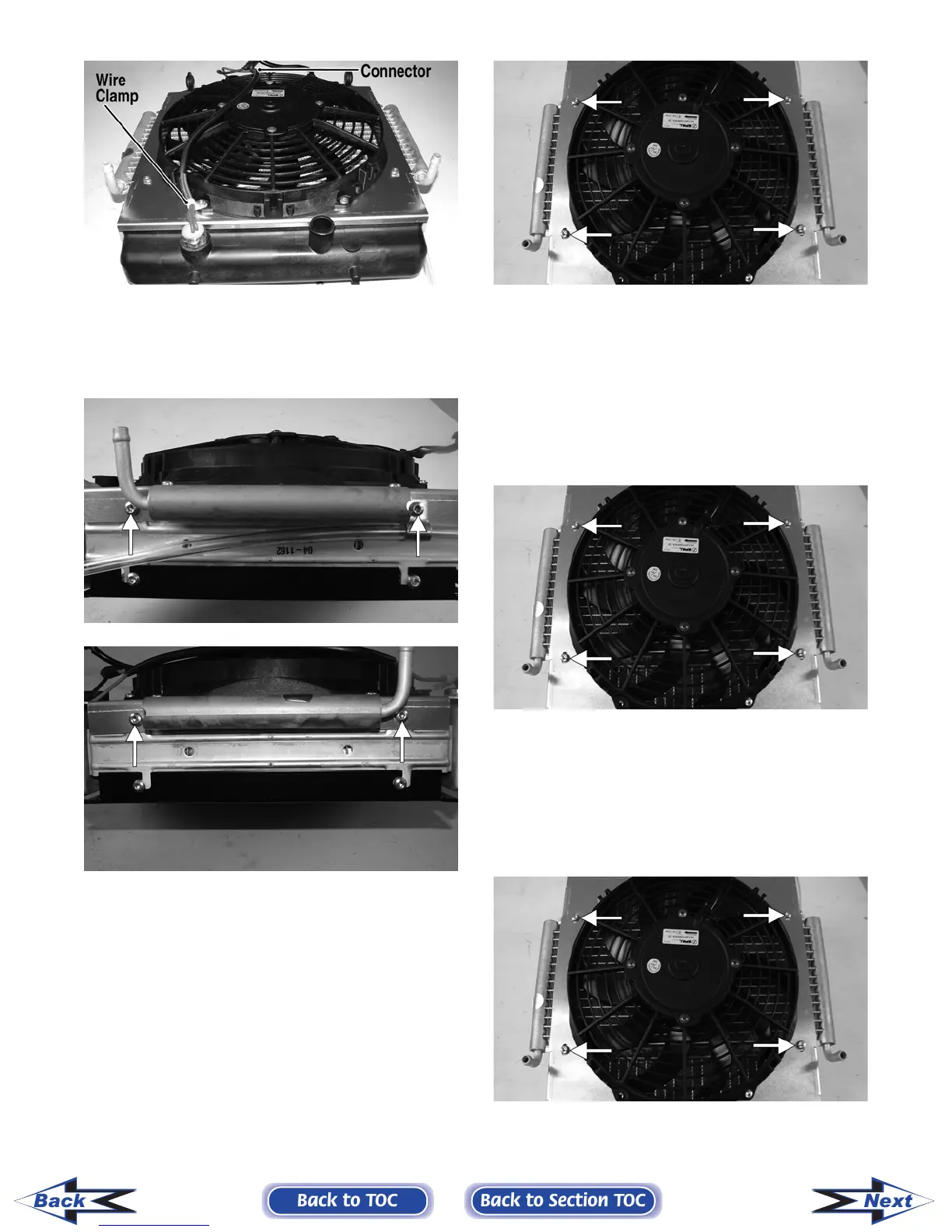

2. Remove four machine screws (two on each side)
securing the fan shroud to the radiator noting
orientation of the fan and oil cooler for assem-
bling.
PR275A
PR268A
3. Remove four machine screws securing the oil
cooler to the fan shroud and remove the oil
cooler.
PR273A
INSTALLING OIL COOLER
1. Place the oil cooler on a clean flat surface; then
position the fan shroud over the oil cooler mak-
ing sure the fan wires are directed toward the top
of the shroud and the oil cooler connections are
directed toward the bottom of the shroud. Secure
with four machine screws.
PR273A
2. Place the radiator on a flat surface (front side
down); then position the oil cooler/cooling fan
assembly onto the radiator with the oil cooler
connections directed toward the bottom of the
radiator. Secure with four machine screws mak-
ing sure to install the radiator overflow hose
hold-down clip on the upper-right machine screw.
PR273A
3. Connect the cooling fan harness to the cooling
fan connector; then secure the cooling fan har-
ness wire clamp with the machine screw.
