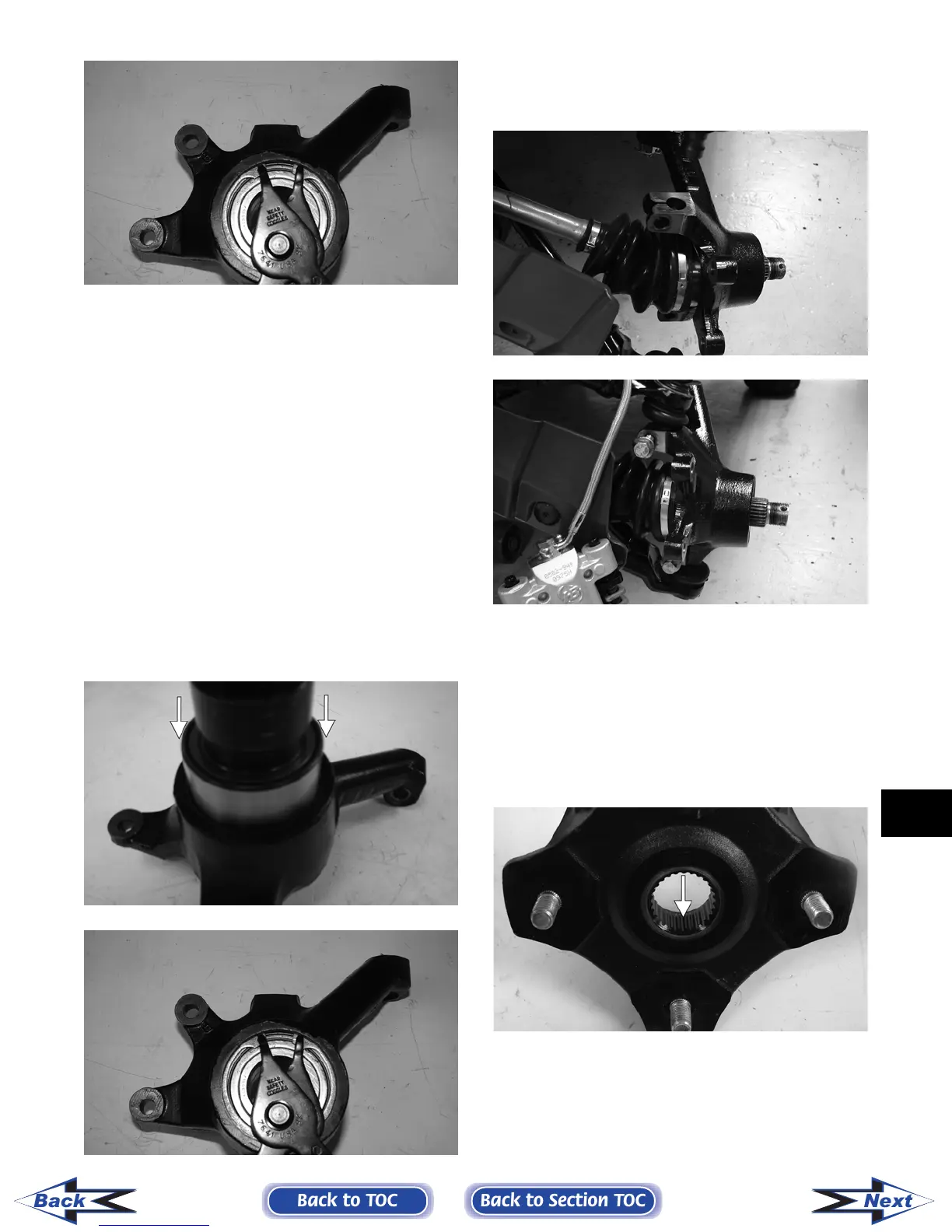

CLEANING AND INSPECTING
NOTE: Whenever a part is worn excessively,
cracked, or damaged in any way, replacement is
necessary.
1. Clean all knuckle components.
2. Inspect the bearing for pits, scoring, rusting, or
premature wear.
3. Inspect the knuckle for cracks, breaks, or galling
of the bearing surface.
ASSEMBLING AND INSTALLING
1. Using a suitable press and driver, press the bear-
ing into the knuckle until firmly seated; then
install the snap ring.
PR292A
PR289
2. Install the knuckle to the upper and lower ball
joints and secure with the two cap screws.
Tighten to specifications.
PR202
PR203
3. Install the tie rod end and secure with the nut.
Tighten to specifications; then install a new cot-
ter pin and spread the pin.
NOTE: During assembling, new cotter pins
should be installed.
4. Apply a small amount of grease to the hub
splines.
PR290A
5. Install the hub assembly onto the splines of the
shaft.
