4-3
4
PR162A
6. Disconnect the electric choke connector; then
remove the carburetor from the engine.

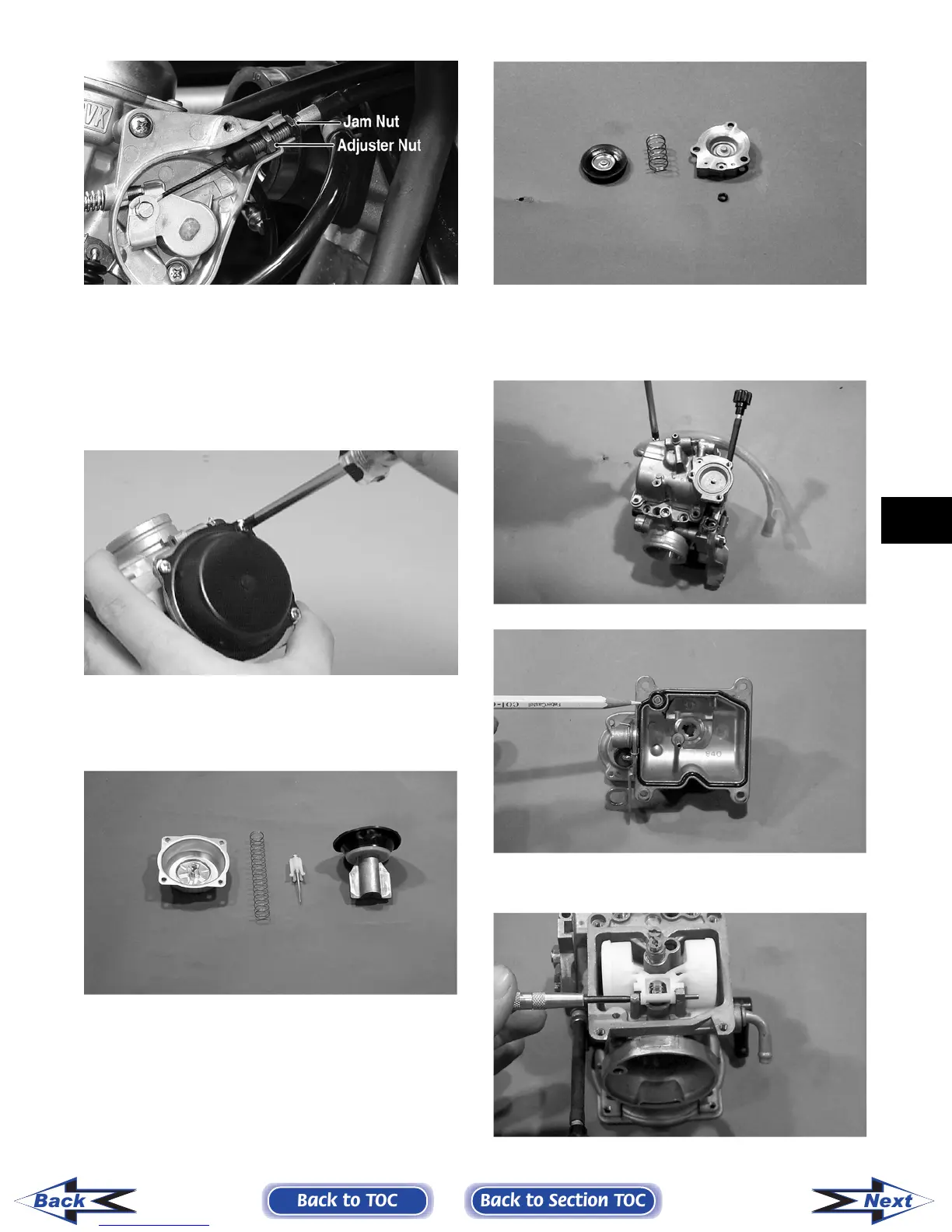

DISASSEMBLING
1. Remove the four Phillips-head screws securing
the top cover; then remove the cover.
CH015D
2. Remove the vacuum piston assembly from the
carburetor body. Account for a spring, spring
seat, and the jet needle.
CC746
3. Remove the three screws securing the pump
housing. Account for the diaphragm assembly,
spring, and U-ring (in the housing).
CC748
4. Remove the Phillips-head screws securing the
float chamber; then remove the chamber.
Account for the O-ring.
CC749
CC750
5. Remove the float pin.
CC752
