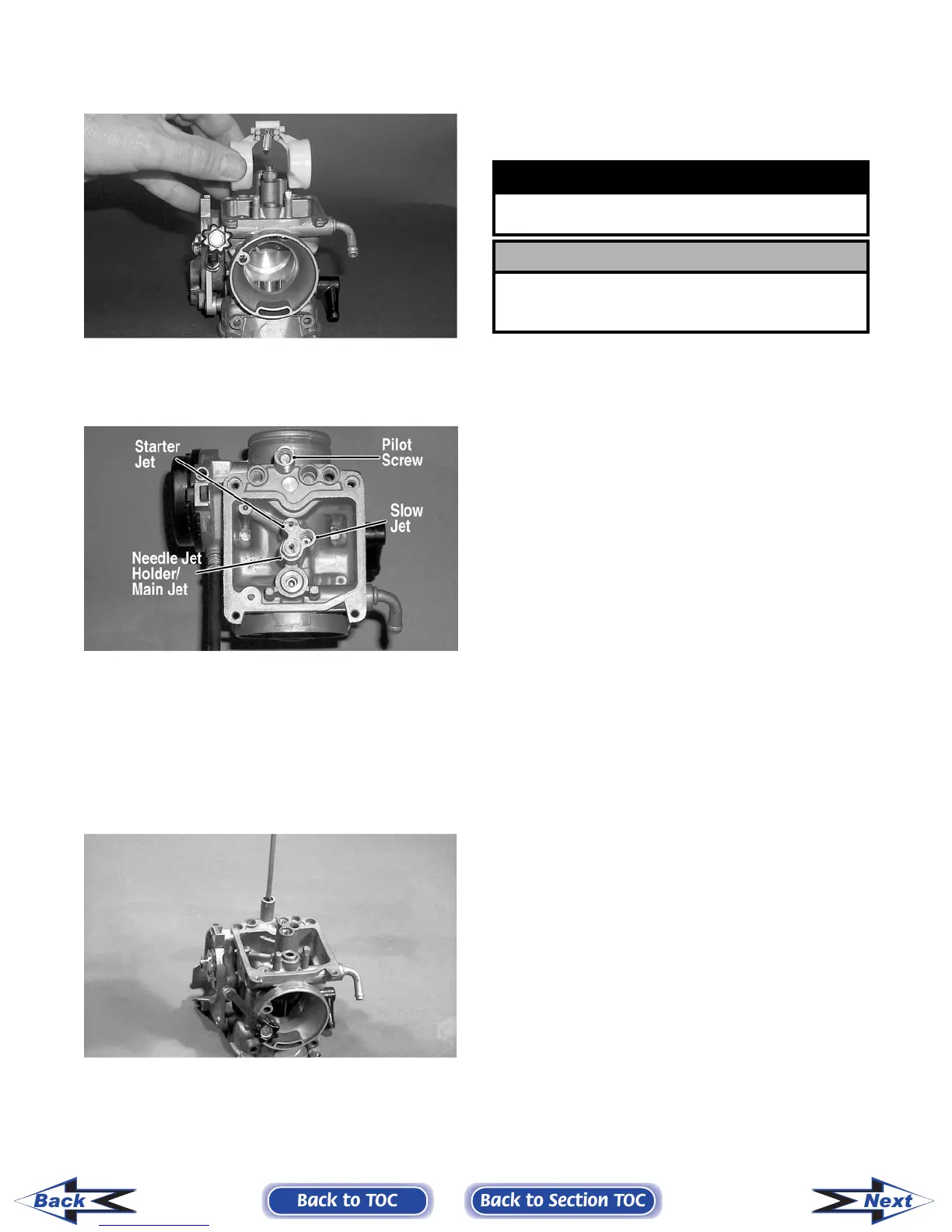

6. Lift the float assembly from the carburetor.
Account for the float valve.
CC753
NOTE: Note the locations of the jets, pilot screw,
and holder for disassembling procedures.
CC761A
7. Secure the needle jet holder with a wrench; then
remove the main jet.
8. Remove the needle jet holder; then remove the
needle jet, slow jet, and the starter jet.
9. Remove the pilot screw. Account for a spring, a
washer, and an O-ring.
CC758
10. Unscrew and remove the idle adjust screw
assembly. Account for the spring and washer.
CLEANING AND INSPECTING
NOTE: Whenever a part is worn excessively,
cracked, or damaged in any way, replacement is
necessary.
1. Place all metallic components in a wire basket
and submerge in carburetor cleaner.
2. Soak for 30 minutes; then rinse with fresh
parts-cleaning solvent.
3. Wash all non-metallic components with soap
and water. Rinse thoroughly.
4. Dry all components with compressed air only
making sure all holes, orifices, and channels are
unobstructed.
5. Inspect the carburetor body for cracks, nicks,
stripped threads, and any other imperfections in
the casting.
6. Inspect the vacuum piston/diaphragm for cracks,
imperfections in the casting, or cracks and tears
in the rubber.
7. Inspect float for damage.
8. Inspect gasket and O-rings for distortion, tears,
or noticeable damage.
9. Inspect tips of the jet needle, pilot screw, and the
needle jet for wear, damage, or distortion.
10. Inspect the slow jet and main jet for obstructions
or damage.
NOTE: If the slow jet is obstructed, the mixture
will be extremely lean at idle and part-throttle oper-
ation.
11. Inspect the float valve for wear or damage.
12. Inspect the carburetor mounting flange for dam-
age and tightness.
! WARNING
When drying components with compressed air,
always wear safety glasses.
! CAUTION
DO NOT place any non-metallic components in
parts-cleaning solvent because damage or deterio-
ration will result.
