6-5
6
PR195A

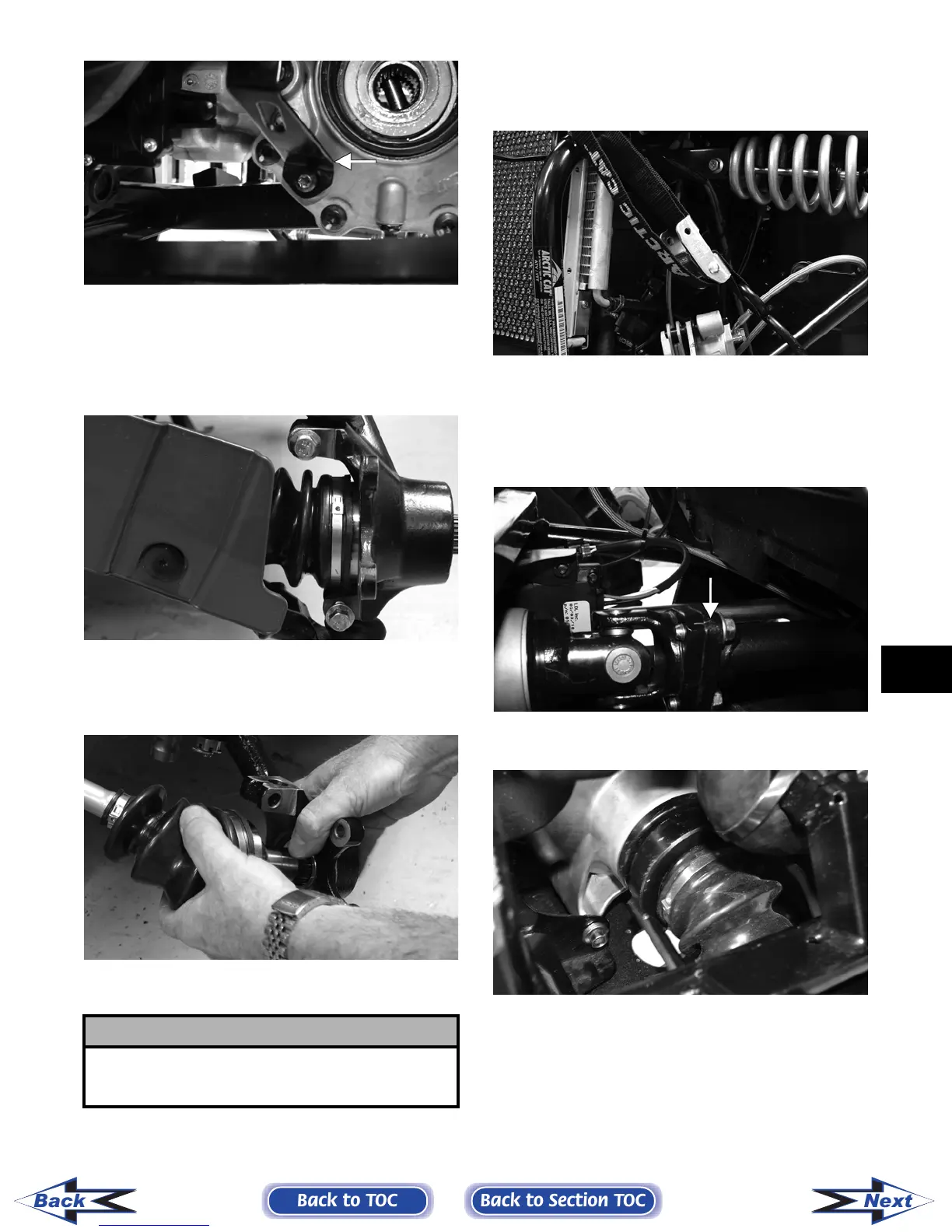

10. Remove the lower and upper ball joint cap
screws taking care not to strip the threads on the
ball joint shaft; then using a rubber mallet, tap
the end of the axle and free it from the knuckle
assembly.
PR193
11. Pull the steering knuckle away from the axle
taking care not to damage the seals with the axle
end.
PR222
12. Support the axle to not allow it to drop or hang.
13. Remove the lower shock bolts. Account for the
lock nuts; then move the shocks and upper
A-arm up and secure them with a strap.
PR200
14. Scribe match marks on the front input drive
flange and the front drive yoke flange; then
remove three cap screws securing the yoke and
flange. Separate the flanges but do not remove
the driveshaft.
PR198A
15. Using a slide hammer, remove the front axles.
PR199
16. Remove the lower differential mounting cap
screw. Account for a lock nut and four washers.
Note the position of the washers for assembling.
! CAUTION
The axle must be supported. If the axle is allowed to
drop or hang, damage to the inner CV joint may
occur.
