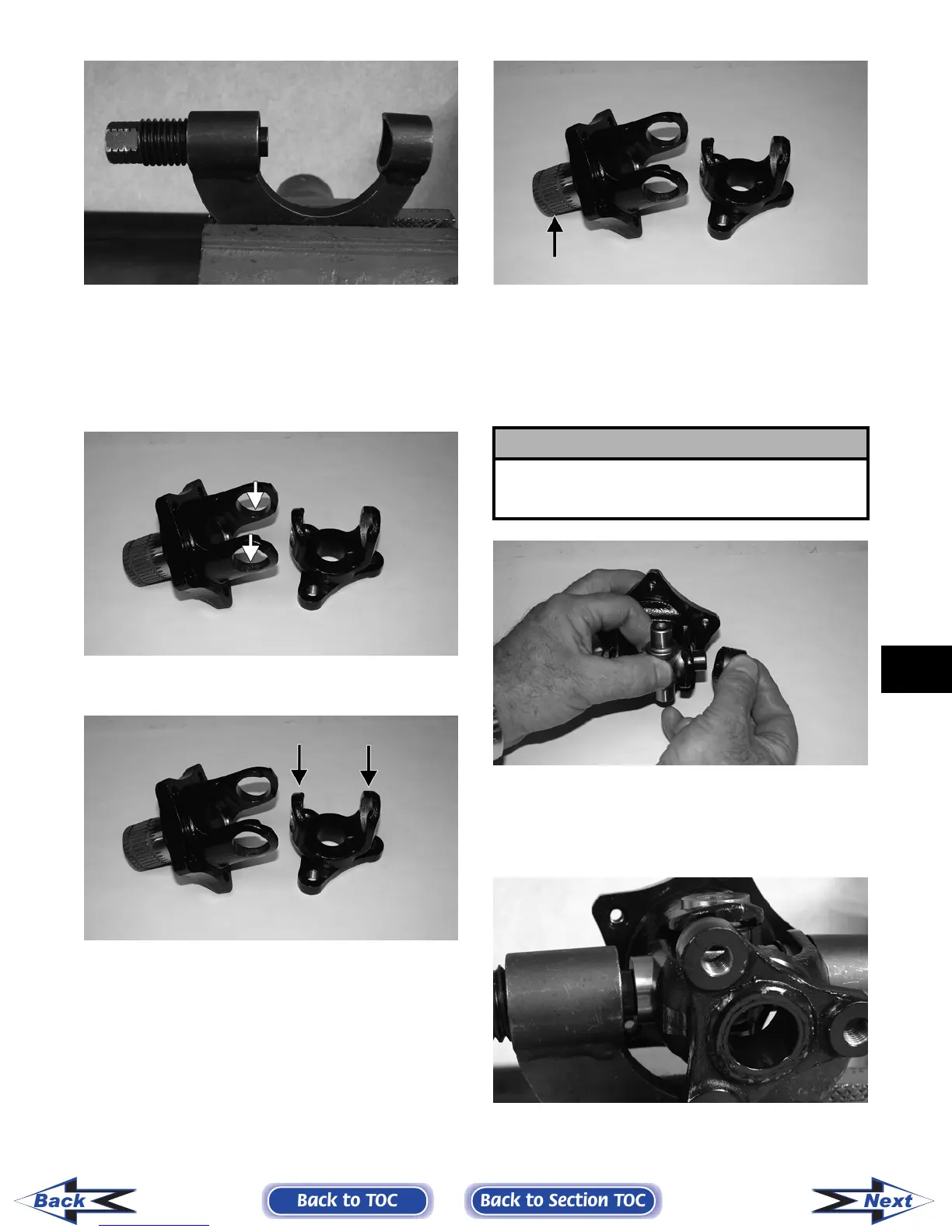

INSPECTING
1. Inspect the yoke bores for damage or signs of
bearing cup looseness. If bearing cups are loose,
the yoke must be replaced.
PR367B
2. Check that yoke legs are parallel.
PR367A
3. Check splines and flanges for excessive wear,
thread damage, or warpage.
PR367C
INSTALLING
1. Remove the bearing cups from the universal
joint; then insert the joint into the yoke and
install one bearing cup on the joint.
PR368
2. Secure U-Joint Separator Tool (p/n 0444-128) in
a vise; then place the yoke, joint, and bearing
cup into position and press the cup into the
yoke.
PR374
3. Install the retainer in the bearing cup; then
remove the yoke from the separator tool.
! CAUTION
Care must be taken when installing bearing cups
that the needle bearings stay in place or severe dam-
age to the universal joint will occur.
