6-25
6
PR239B
6. Plug the fluid port with a suitable plug to pre-
vent contamination during cleaning.
PR240A
CLEANING AND INSPECTING
1. Clean all caliper components (except the brake
pads) with parts-cleaning solvent.
2. Inspect the brake pads for damage and excessive
wear.
NOTE: For measuring brake pads, see Section 2.

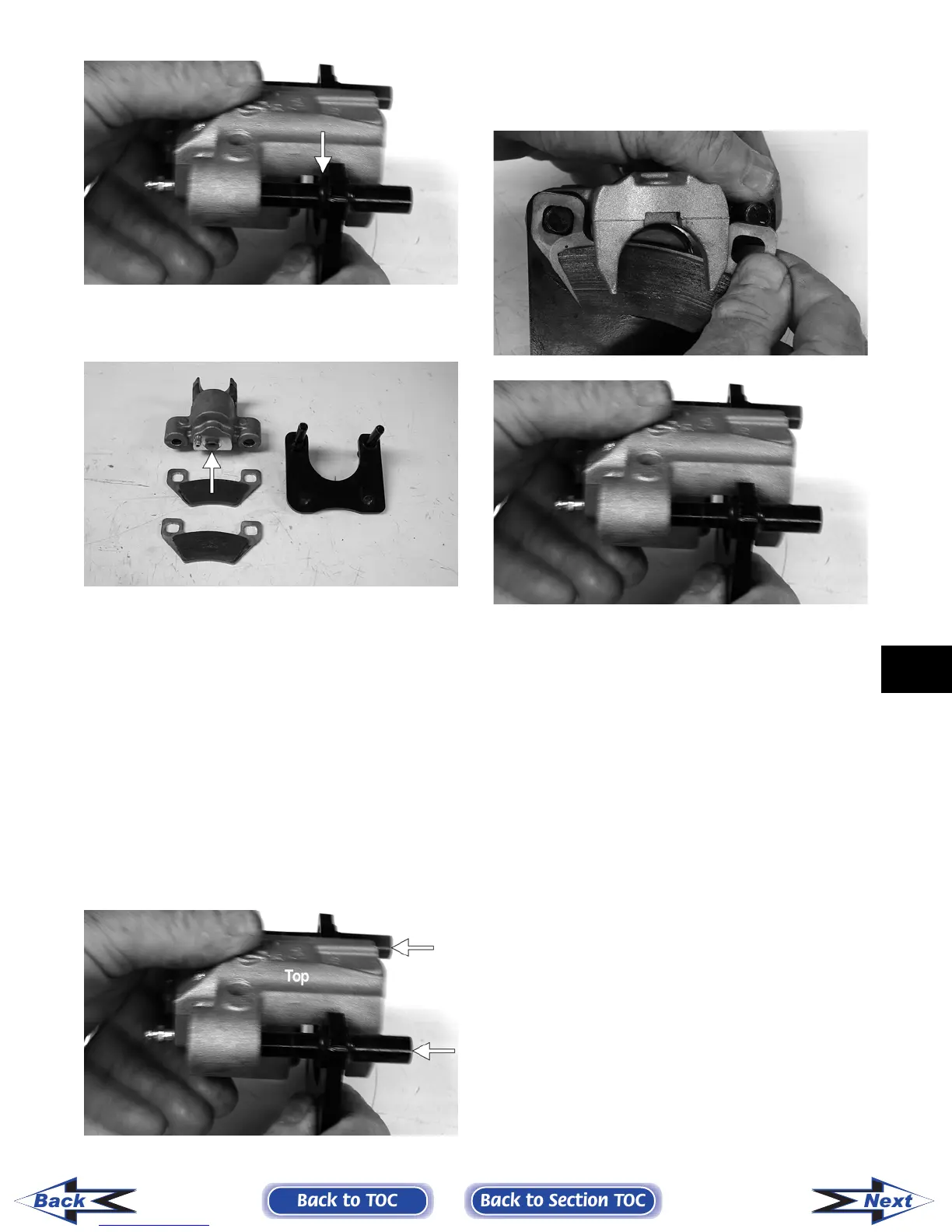

ASSEMBLING/INSTALLING
1. Install the caliper onto the caliper holder making
sure the caliper is correctly oriented on the
holder.
PR239C
2. Compress the caliper holder toward the caliper
and install the inner brake pad; then install the
outer pad.
PR238
PR239
3. Place the brake caliper assembly into position
and secure with the cap screws. Tighten the cali-
per to specifications.
4. Place a new crush washer on each side of the
brake hose fitting and install it on the caliper.
Tighten to specifications.
5. Fill the reservoir; then bleed the brake system
(see Section 2).
6. Install the wheel. Tighten to specifications.
7. Remove the vehicle from the support stand and
verify brake operation.
