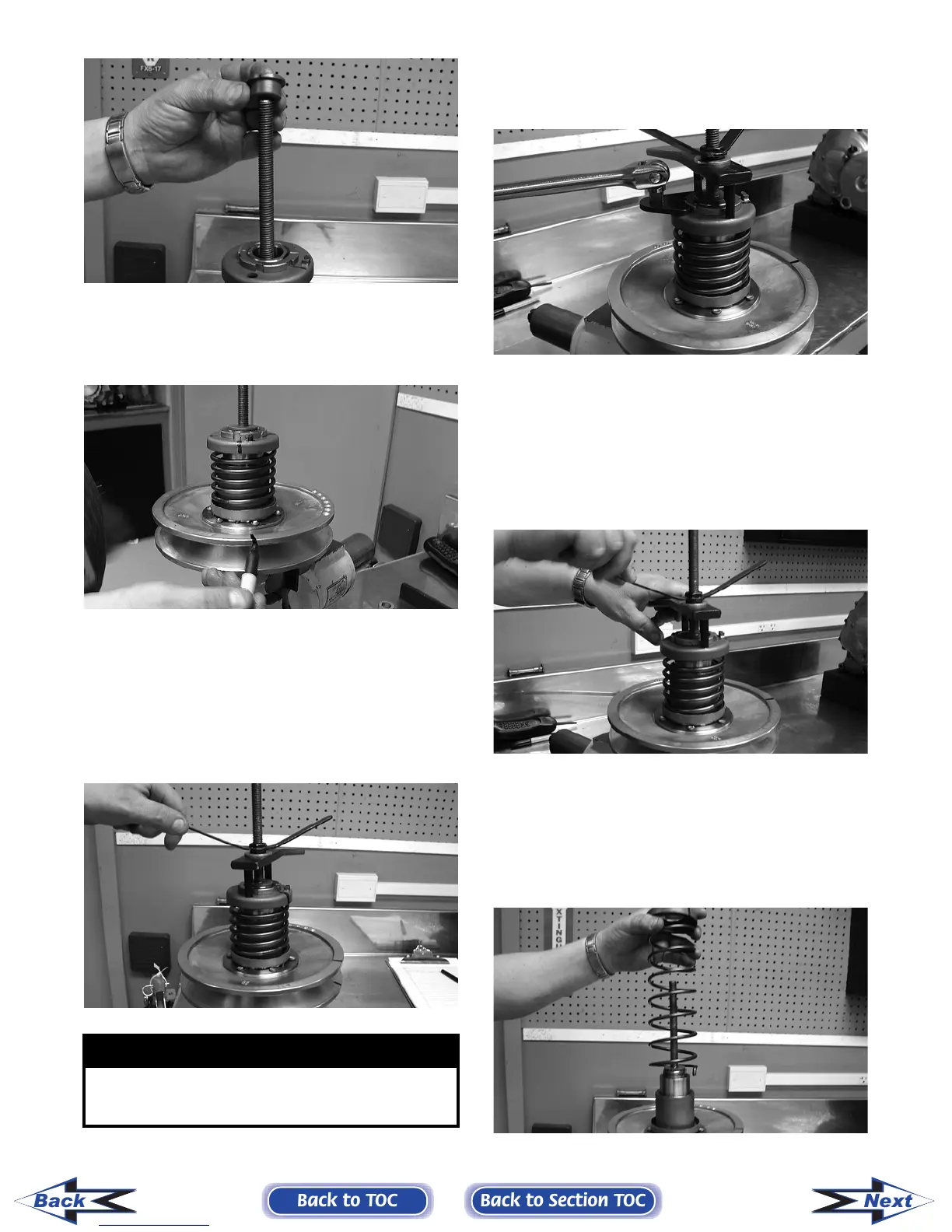

4. Using a suitable marking pen, make alignment
marks on the fixed face spring holder and both
pulley faces.
CD049
5. Place the holding handle on the spring holder
fitting the two dowel pins into the spring holder
face; then install a flat washer and the wing nut.
Turn the wing nut down until resistance is felt.
NOTE: Do not use the wing nut to compress the
spring further.
CD050
6. Using a spanner and suitable breaker bar, loosen
the notched-ring nut; then spin the nut free of
the hub.
CD051
7. Firmly hold the handle and slowly turn the wing
nut counterclockwise to relax the spring.
NOTE: There will be a tendency for the handle to
rotate clockwise approximately ¼ turn as the
spring holder clears the flats or hub. This is due to
a slight counterclockwise preload on the spring.
CD052
8. Release the preload slowly; then continue to
relax the spring until the wing nut is flush with
the end of the threads.
9. Firmly holding the spring and spring holder,
remove the wing nut; then remove the spring.
CD053
! WARNING
The spring assembly is under pressure. Extreme
care must be taken when relaxing the spring. Always
wear safety glasses. Use proper tools only.
