3-31
3

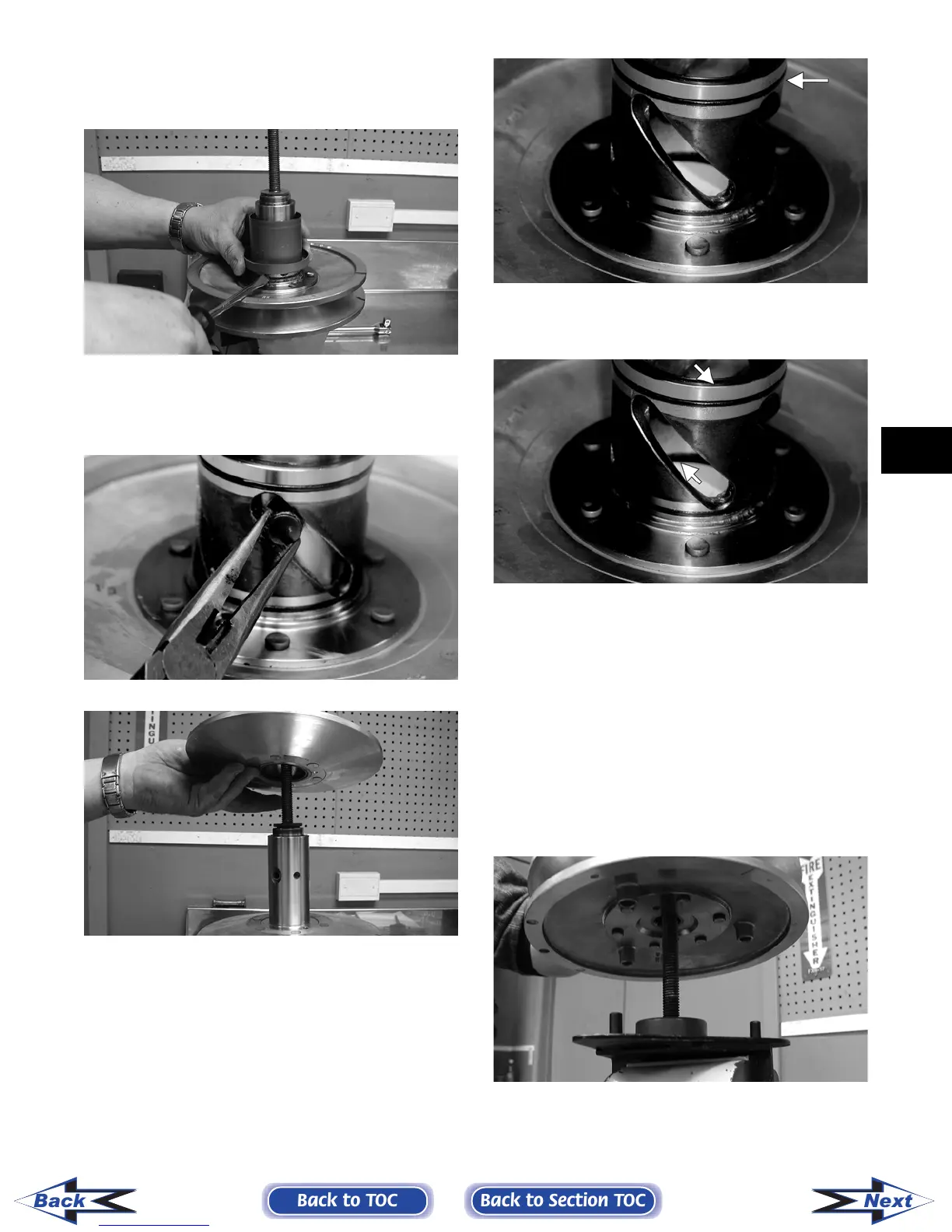

10. Using a thin pry-bar or screwdriver, work the
movable face sleeve upward and free of the
O-rings; then remove the sleeve.
CD054
11. Remove the four pins and spacers from the cam
slots in the movable face; then remove the mov-
able face.
CF091
CD056
Inspecting
1. Inspect the pulley faces for wear, galling, or
grooving.
2. Inspect the O-rings on the movable face for
nicks, tears, or swelling.
CF092A
3. Inspect two grease seals in the movable face for
nicks, cuts, or damage.
CF095A
4. Inspect the pins and bushings for wear, flat
spots, looseness, or cracking.
Assembling
1. Place the fixed face of the driven pulley on the
pulley compressor base making sure the dowel
pins are engaged in the appropriate holes in the
pulley face.
NOTE: Make sure the spacer is on the base or
damage to the fixed face will occur when the
spring is compressed.
CD048
